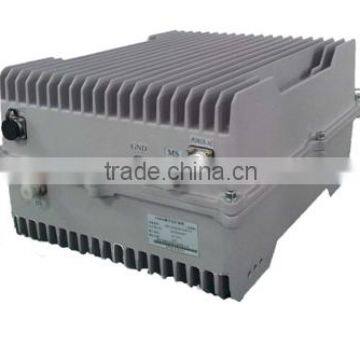

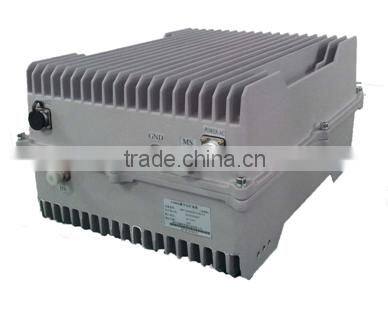

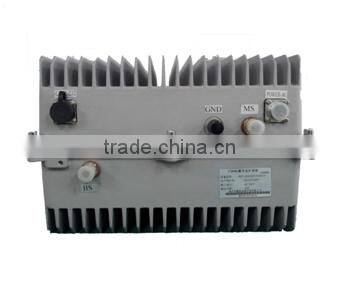

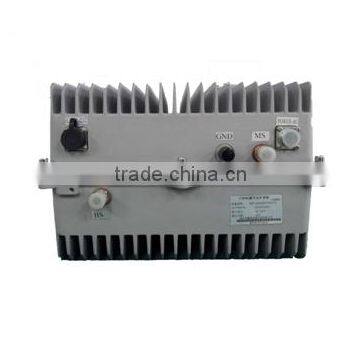

FM 10W Wireless 12 Channels Selective Repeater

NO.

Items

Parameters

Remarks

1

Frequency Range

87MHz~108MHz

2

Number of Channels

12

3

Bandwidth of Channel

100kHz

4

Output Power(Max)

40±2Bm

5

Max Gain

90±3dB

6

Gain Modulation Range

30dB

7

Gain Modulation Step

1dB

8

Gain Modulation Error

While gain is 0-20dB,Error≤1dB;While gain is 21-30dB,Error≤1.5dB

9

Noise Factor

≤5dB

Test with full gain

10

Max NO Damage Input Power

-10dBm

11

Automatic Level Control(ALC)

Output power variation < 2dB or be off when adding 10dB at max output power. Control range≥30dB.

12

Pass Band Ripple

≤3dB

13

VSWR

≤1.5

14

Time Delay

≤18.0μs

15

Spurious Emissions

In-Band

≤-36dBm/3kHz or ≤-60dBc/3kHz

Out-Band(Deviation from the band edge outside 2.5MHz)

9kHz~1GHz:≤-36dBm

1GHz~12.75GHz:≤-30dBm

16

IMD

In-Band

≤-45dBc/30kHz

Out-Band(Deviation from the band edge outside 2.5MHz)

9kHz~1GHz:≤-36dBm

1GHz~12.75GHz:≤-30dBm

17

Out of Band Rejection

≤-30dBc@±400kHz

≤-40dBc@±600kHz

≤-45dBc@±1MHz

≤-55dBc@±5MHz

18

Frequency Stability

≤0.05ppm

19

Local Monitoring & Control

RS232

18

RF Connection Mode

N/F,50Ω

19

Power Supply Mode

AC 220V±20%,45~55Hz

20

Power Consumption

≤220W

21

Operation Temperature

-25℃ ~ +55℃

22

Casing class

IP55

23

Machine Weight

≤25kg

24

Dimension

357mm×217mm×453mm (W*H*L)

25

MTBF

≥50000h
