Home > Products > injection blowing mould > Pesticide Bottle Injection Blow Mold
Pesticide Bottle Injection Blow Mold
- shanghai port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | FD | |
| Model Number | injection blow mold | Shaping Mode | Blowing Mould | |
| Product Material | Steel | Product | Other, injection blow mold |
Product Description

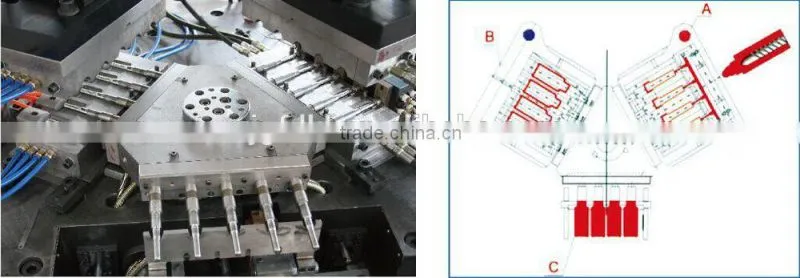

»Operating Principle
Station A:Preform injection
The bottle neck will be molded accurately after injecting the material into the cavity,After proper control,the mold open and mandrils to...along with the cavity.
Station B:Blow molding
Blowing action was done at this part,molding would be complete after cooling.(bottle shape decides by the mold cavity).The air came out from the mandrils huffs the cavity,make the cavity cling to the mold.Then mold open and the mandrils turn to...along with bottles.
Station C:Stripper
The bottle automatically will be ejected from the mandrils at this position and then to be packed.The three actions of injection/blowing/ejection working at the same time,which makes the machine of high efficiency and low waste with bottles.

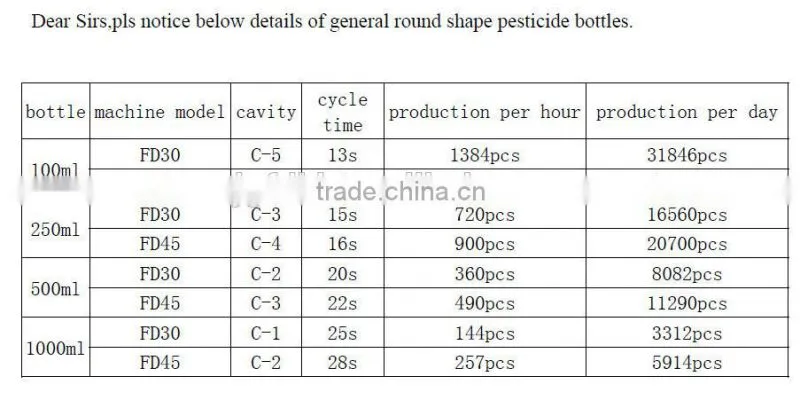

»Reference cavity numbers on each model machine
»Packaging & Shipping
machine packed with film and wooden pallet
mold packed by sea worthy wooden cases.
