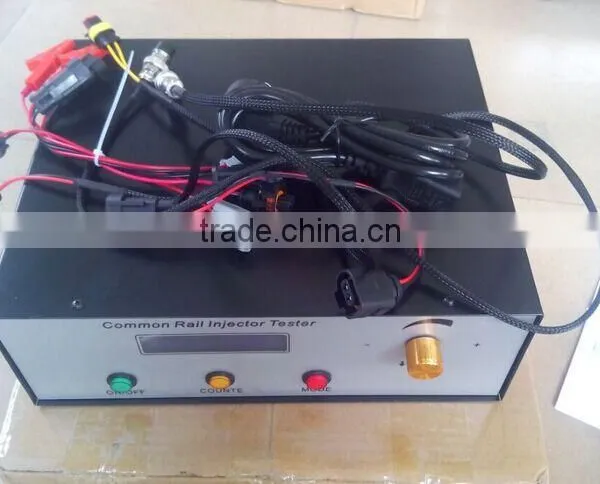

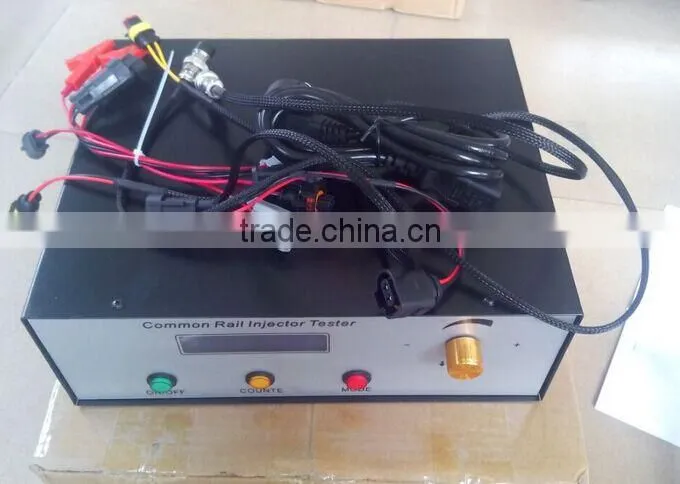

ON promotion piezo injector tester cri-700 common rail system tester simulator
pecifications
cri-700can test nozzle spray pattern and injector back leakage, to check the CR injector with either solenoid or piezo technology
cri-700
the repair tester to simulate the engine Control Unit (ECU) driving signals for a common rail injector of either solenoid technology or piezo technology,
made by Bosch, Delphi, Denso and Siemens. The user is able to set the control parameters of fuel injection drive signals.
By combining of a cri-700
tester and a high pressure fuel source, which may be a mechanical manual pump, or an electrical motor driven pump,
or a pneumatic driven pressure booster, to feed the CR injector, the user is able to fulfill the tasks, such as nozzle spray pattern and injector back leakage,
to check the CR injector with either solenoid and piezo technology.
Design Features
1. Modulated driving signal to ensure the safety of the solenoids of the injectors
2. Injector driving signal Adjustable frequency and pulse width
3. Short circuit protection for solenoid driving signals

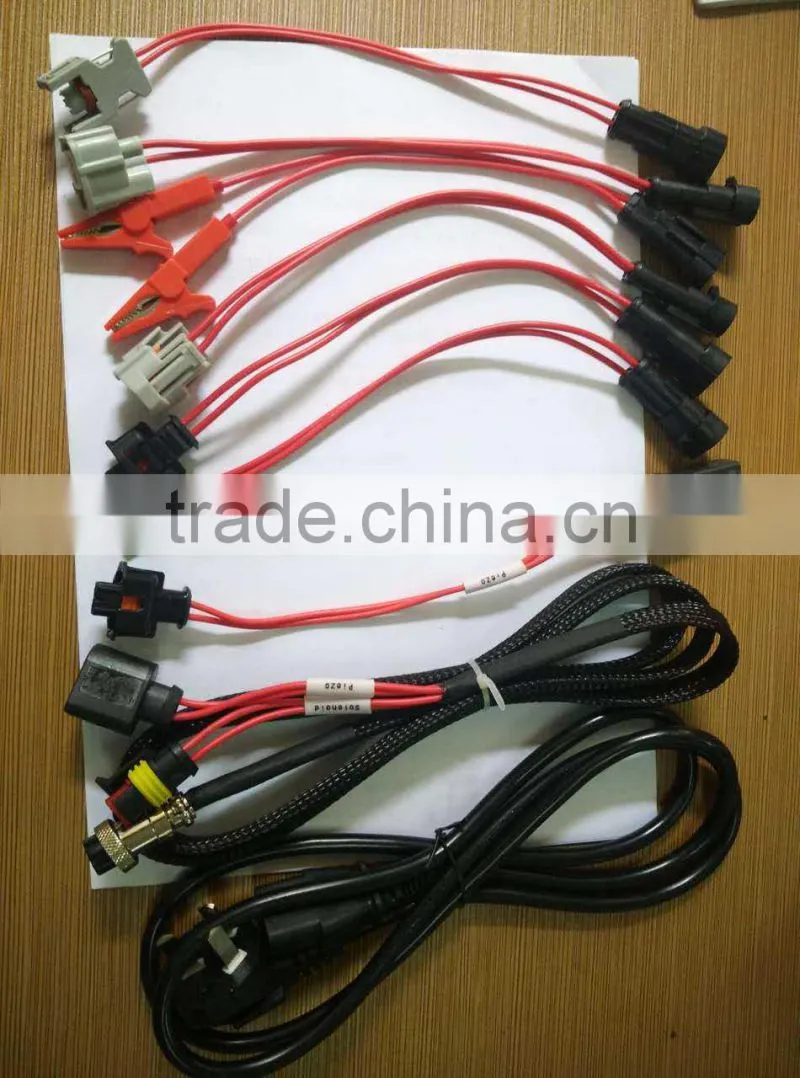

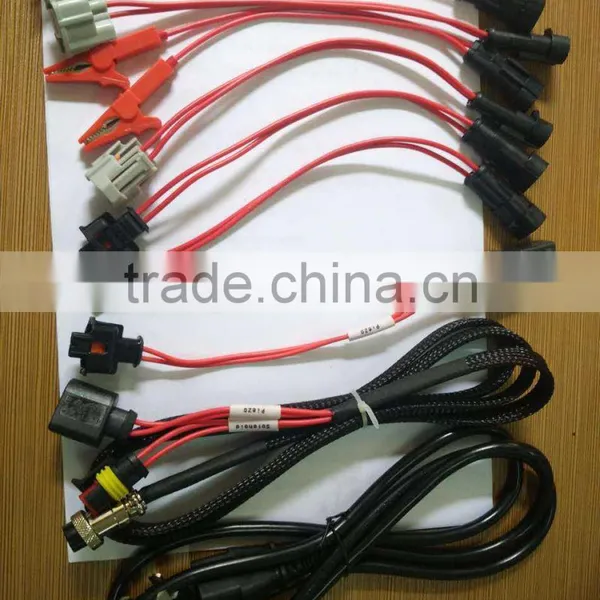

4. Rich accessories, ready to test Bosch, Denso and Delphi injectors
Main parameter
Maximum pressure |
40MPa |
Overall dismensions |
320*300*500 |
Net weight |
7kg |
Pressure guage range |
0-60 Mpa |
>>>we also have other model number test bench for injector and pump ,plspoint the model name and then check details
| diesel fuel injection pump test bench | common rail injection pump test bench | tester and heui |
| 12PSB |
CRS708c(can add EUI/EUP&Cambox) CRS709c(can add EUI/EUP&Cambox |
CR1000 (200USD with piezo function) |
| BC3000 | BC-CR708(most competitive price) | CRS3 (can add piezo testing function ) |
| BC2001 | CRS200 | VP44 pump tester |
| BC2001PLC | CRS300(can add VP37 VP44 EUIEUP) | VP37 pump tester |
| BCS619 | eps200 | EUI EUP&Cambox |
| BCS815 | BCS200 | V3V4V5 pump tester |
| BCS300 | s60h | |
| BCS205 TEST EBNCH | PQ1000(only 1300USD per set) | Heui hydraulic test bench |
>>our product on show
Taian Beacon Machine Manufacturing Co., Ltd. is the leading manufacture in diesel injection pump test bench and
turbocharger balancing machine in China ,our products already sold to more than 100 countries .
Our products including common rail injector test bench ,common rail injector tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,Denso ECD-V3 ,V4, V5 pump tester ,
PT cummins pump and injector tester ,common rail tools and spare part .
Welcome you to visit our factory and cooperate in the future.
Q: How can i get this product?
A:we can do the air transport to directly your nearest air port or your specific address.
Q:How can i pay,what kind of payment will be accept?
A:We support TT payment,West Union, Secure payment and Trade assurance.
Q:Do you have common rail tools or spare parts?
A:Yes,for sure,we have the common rail tools and spare parts also with best quality and most competitive price.
----pls contact with us
