»FD small plastic bottle making machinery plastic machine price features
1.excellent machinical strength. impact-resting,and non-cracking.
2.Bottle mouth and screw thread are of precise measurement, enable 100%
close matching with the bottle cap.
3.The weight of the product can be pre-setted.
4.The measurement and thickness of the product can meet the requirement of
design without any deviation.
5.The surface of bottle mouth and body is bright and smoonthness.
6.No defleshing and trimming save the material cost.
7.There is no joint seam at the bottom, and strength is improved accordingly.
8. The joint seam on the bottle body is smooth.
»Main Technical Parameters of small plastic bottle making machinery plastic machine price
»Reference cavity numbers on each model small plastic bottle making machinery plastic machine price

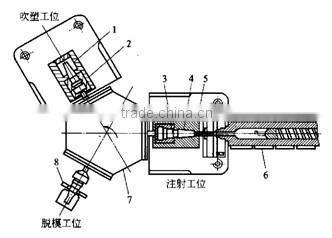

»Operating Principle of small plastic bottle making machinery plastic machine price
Station A:Preform injection
The bottle neck will be molded accurately after injecting the material into the cavity,After proper control,the mold open and mandrils to...along with the cavity.
Station B:Blow molding
Blowing action was done at this part,molding would be complete after cooling.(bottle shape decides by the mold cavity).The air came out from the mandrils huffs the cavity,make the cavity cling to the mold.Then mold open and the mandrils turn to...along with bottles.
Station C:Stripper
The bottle automatically will be ejected from the mandrils at this position and then to be packed.The three actions of injection/blowing/ejection working at the same time,which makes the machine of high efficiency and low waste with bottles.

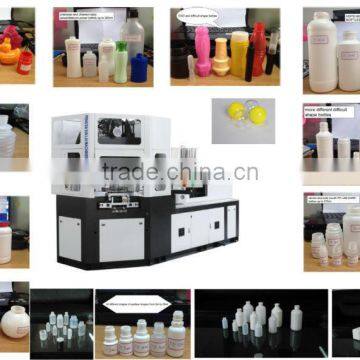

FD small plastic bottle making machinery plastic machine price manufactururing various difficult bottles

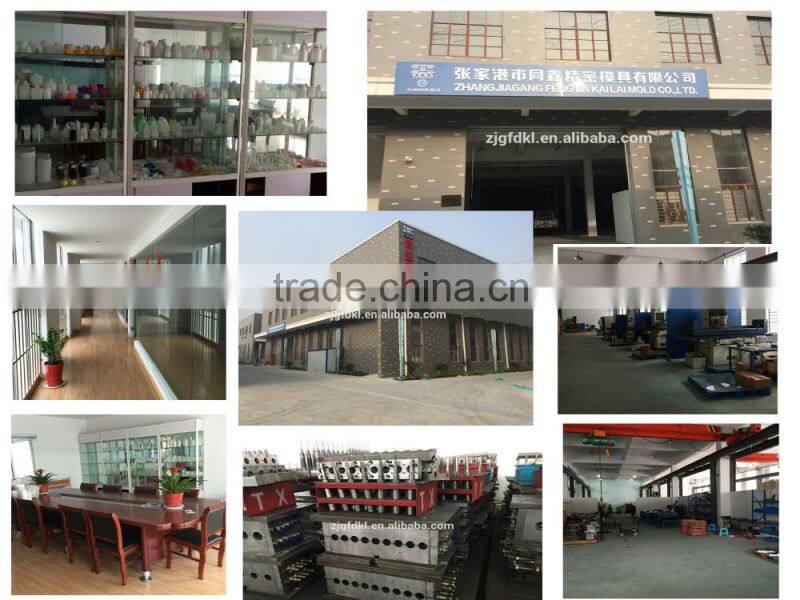

Zhangjiagang Fengda Kailai Mold Co.,Ltd is located in National Clean&Clivized City,Zhangjiagang ,jiangsu, having more than 10years experienced working team. The area of itis 1,800 square meters.Adjacent to shanghai inthe east and nanjing in the West, enjoying superior geographic location and convenient transportation.
One step injection blow moulding machine, suitable for PE,PP,PS etc material blowing under volume 3ml~1000ml,which is desighed to make plastic containers with exating weight,size volume tolerance and quality, it produces more finished bottles per cycle without deflashing and trimming. IBM us used widely in pharmaceutical, cosmetic,food etc chemical packing field.
With experienced technicians in plastic mold developmengt and rich experience in theory and pracice,we can provide thoughtful service for customer investment plan.

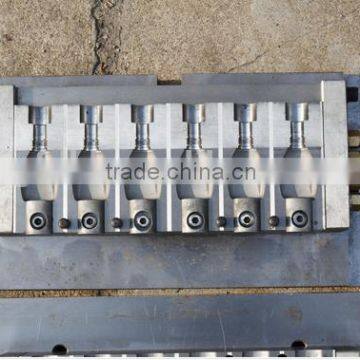

Having advanced technology in injection-blow mold desigh,we can provide mold supporting service for every manufacturer for his automatic three -working-position injection-blow molding machines with all brands(WHEATON,JOMAR,Uniloy etc.)
Zhangjiagang Fengda Kai Lai Mold make reliable and economical IBM machines&mold and
develop together with you .
