Home > Lights & Lighting > LED Outdoor Lighting > LED Floodlight > High Brightness Low Profile Recessed Led Light With UL Driver

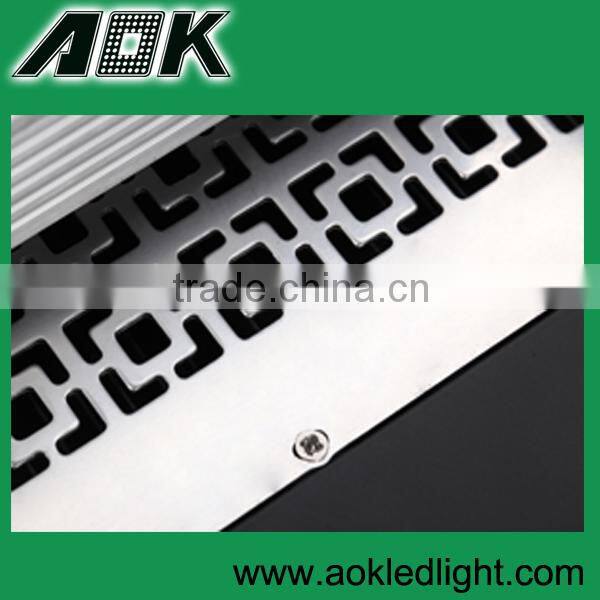

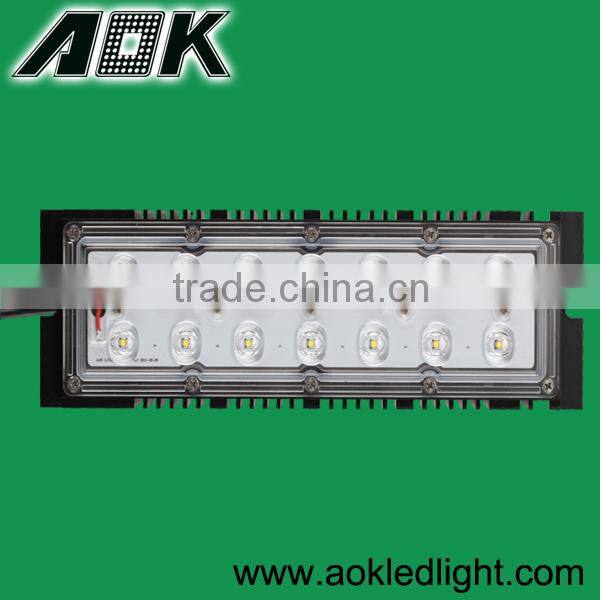

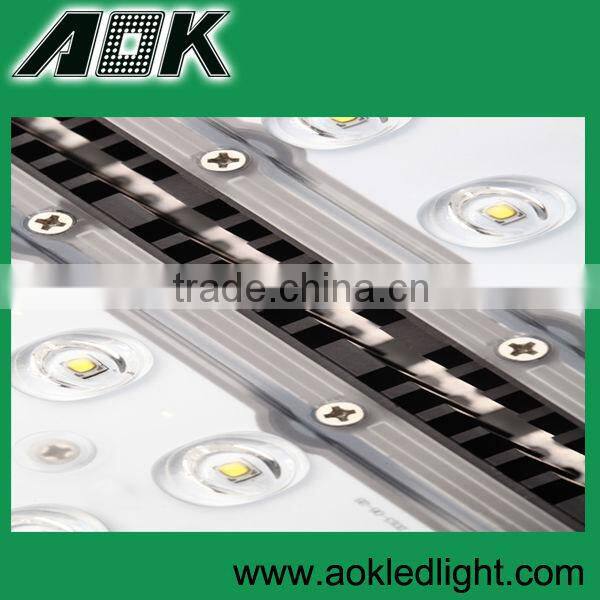

High Brightness Low Profile Recessed Led Light With UL Driver

US$ 86.35 - 151.66 MOQ: 5 Pieces

Key Specifications

LED Light Source:

Lumileds LUXEON T

Input Voltage(V):

90-305VAC,12/24VDC 50-60Hz

Lamp Power(W):

Fuzhou AOK LED Light Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou Port

Delivery Detail:

Delivery time depends on order quantity.

LED Light Source Lumileds LUXEON T

Input Voltage(V) 90-305VAC,12/24VDC 50-60Hz

Lamp Power(W) 40

Lamp Luminous Flux(lm) 4400

Lamp Luminous Efficiency(lm/w) 110

Color Temperature(CCT) Pure White

Working Temperature(℃) -40, 50

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum Alloy

IP Rating IP65

Certification CE, EMC, LVD, UL

Place of Origin Fujian, China

Brand Name AOK

Model Number AOK-40Wi_146

40W Recessed LED Light IP65& IP67 with 5 years warranty

Model	Power	Luminous Flux:	Lamp Size	NW	Packing	GW
AOK-40Wi_146	40W	4000lm	303151183mm	3.5kg	370300255mm	6.3kg
AOK-80Wi	80W	8000lm	303232183mm	5.2kg	380300255mm	8.1kg
AOK-120Wi	120W	12,000lm	303311196mm	6.15kg	375470255mm	9.3kg
AOK-160Wi	160W	16,000lm	392303196mm	7.15kg	375500255mm	10.5kg
AOK-200Wi	200W	20,000lm	473303196mm	8.5kg	375542255mm	11.8kg
AOK-240Wi	240W	24,000lm	554303196mm	9.25kg	375625255mm	13.5kg
AOK-280Wi	280W	28,000lm	635303196mm	10.5kg	375705255mm	14.25kg

Driver	Meanwell Driver
LED Chips	Lumileds Luxeon T chip
Operating Voltage	90-305VAC
Operating Temperature	-40 ºC to +50 ºC
Operating Humidity	10% to 90%
Power Fact	>95%
Power supply efficiency	>90%
CRI	Ra > 70 (>80 optional)
IP Rating	IP65 & IP67
Guarantee	5 Years Warranty
Color Temperature	3000K-6500K
Heat Radiator	Anodized Aluninum
Face	Anti-static Coating
Certifications	CE, RoHS, TUV, UL, SAA

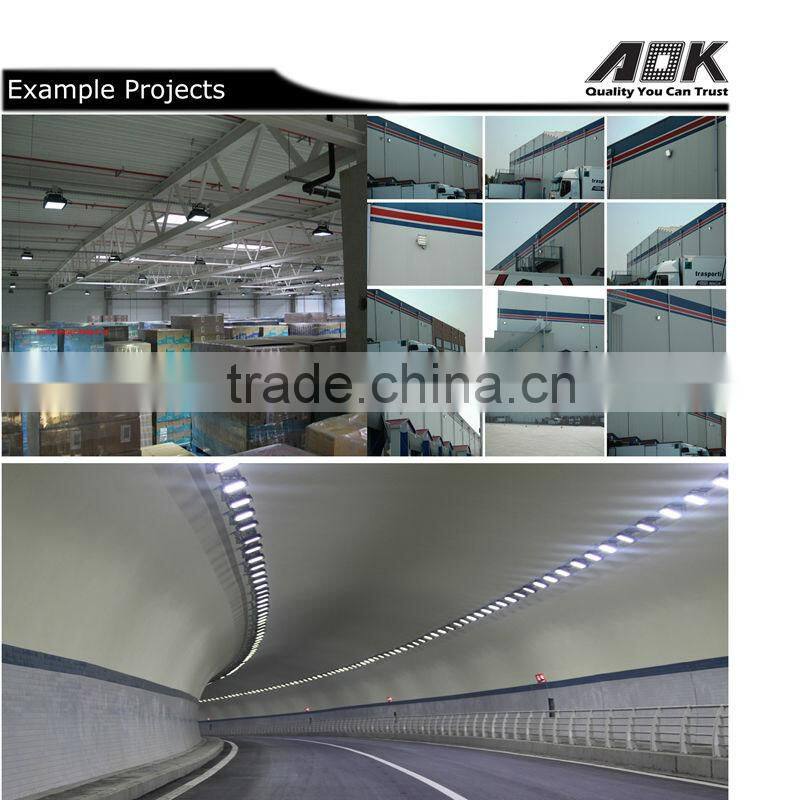

Applications	1. Warehouse lighting, Industrial lighting 2. Parking Lot Lighting, Garage Lighting 3. Airport, Train Station Lighting 4. Tunnel Lighting
