»Automatic Mold Temperature Control XCM series

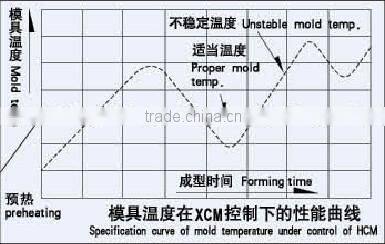

Unstable temperature in the process of mold forming always tends to produce unqualified products.According to the principle of heat exchange,XCM mold temperature controls make use of water and high property heattransferring oil as a medium to keep a prosperstable temperature in the process of mold forming so as to guarantee high quality of products and raise the productive efficiency.
»Features
•Hot medium liquid:water or oil convertibly
Either water or oil can be used as a hot medium liquid according to the needs of mold forming temperature.Its high selectivity is certain to bring in high economic efficiency.
•Vertical pump
The flow of vertical pump can be always kept steady and its service life keeps long.
•stainless medium tank
This interior tank will not get rust for long term,which is sure to prevent from any blockade of pipes and keep long-term service of pump.
•Transparent water(oil) level viewer
The transparent water(oil) level viewer can easily be used to view and inspect the quantity of medium liquid and be reminded refill the medium liquid from time to time.
•Automatic alarming device
While water(oil) shortage occurs in the container,this device will automatically light up and start alarming and cut off the electric power of heaters and pumps,thus to guarantee their safety.
•High-precision automatic temperaturecontrol
The measure of temperature is very sensitive and accurate,little change of temperature helps to keep products both fine and delicate.
•Minimize products wastage
The mold can reach the required temperature right at the beginning of operation,thus can obviously minimize products shortage.
•Maintain proper temperature
Either in continuous operation or in temporary shutting down,mold forming temperature can always be kept proper to guarantee the best quality of products and further improve the forming process
•Compatc in size,light in weight
Easy to install,convenient to operate,convenient to move and little room to occupy.

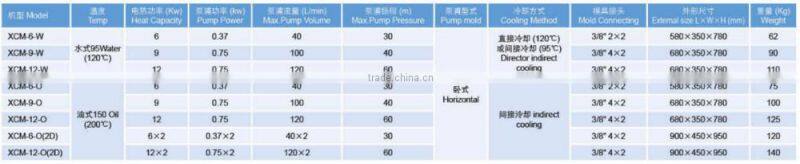

»Main Technical Data
»Pachages&Shipping
