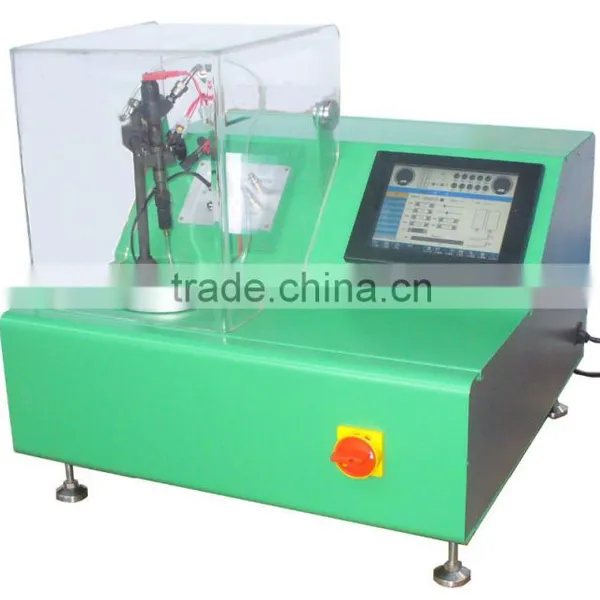

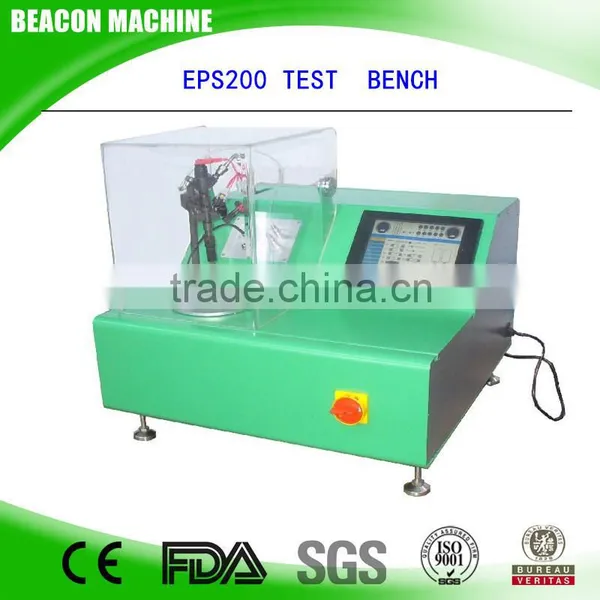

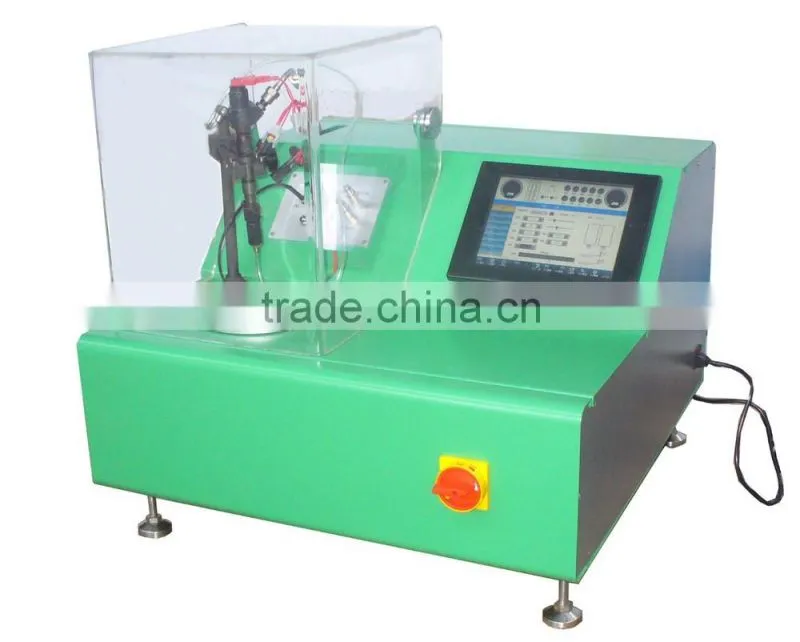

popular products Bosch EPS200 common rail diesel fuel injector test bench
EPS200 common rail diesel fuel injector test bench is our latest indepentent researched special device to test the performance of high-pressure common rail injector,
controlled by industrial computer,
Windows operating system. The oil quantity is measured by sensor and displayed on computer screen. All data can be searched and saved.
It adopts BOSCH original common rail pump to provide 0~1600 bar of rail pressure. The rail pressure can be adjusted automatically.
it can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO.
Advanced technology, steady performance, precise measurement and convenient operation.
>>>CHARACTERISTIC
1. Controlled by industrial computer in real time, Windows operating system.
2. Oil quantity is measured by sensor and displayed on 10.4tactile LCD screen;
3. More than 400 kinds of injecotors data can be searched and used.
4. Data can be searched and saved.
5. It is installed BOSCH common rail pump to provide 0~1600 bar of rail pressure.
6. Rail pressure can be tested in real time, it contains the high-pressure protection function
7. Pulse and frequency of the injector drive signal can be adjusted.
8. Injection time can be setted.
9. Protection function of short-circuit.
10.Precise measurement, easy operation, low noise.
>>>FUNCTION
1.Test injector brands:BOSCH, SIEMENS, DELPHI, DENSO.
2. Test 1 piece of injector.
3. Test the pre-injection oil quantity of common rail injector.
4. Test the max. oil quantity of common rail injector.
5. Test the cranking oil quantity of common rail injector.
6. Test the backflow oil quantity of common rail injector.
7.Test the average oil quantity of common rail injector.
8. Test the seal performance of common rail injector.
9. Data can be searched and saved.
10. Clean the common rail injector.
>>>TECHNICAL PARAMETER
1. Pulse width |
0.1~20ms |
2. Continuous injection times |
0~1000 |
3. Fuel temperature |
40±2°C |
4. Rail high pressure |
0~1600 bar |
5. Test oil filtered precision |
5μ |
6. Input power |
380V/50hz/3phase or 220V/60hz/3phase |
7. Rotation speed |
0~3000RPM |
8. Oil tank capacity |
16L |
9. Overall dimension(MM) |
865×775×1430 |
10. Weight |
150KG. |

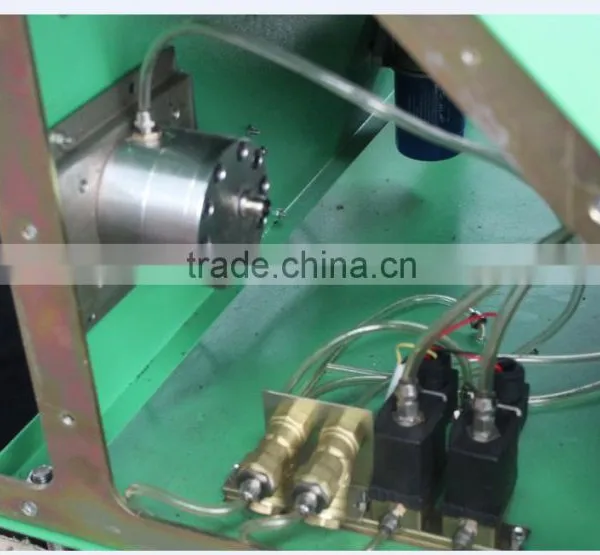

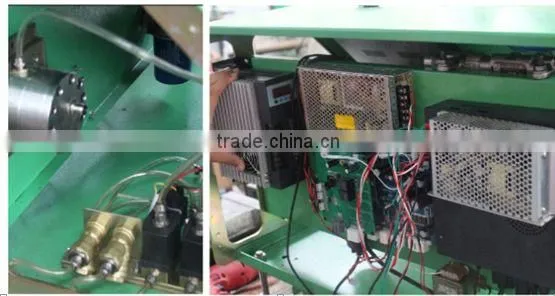

Inside of eps200 test bench
>>>we also have other model number test bench for injector and pump , pls point the model name and then check details
| diesel fuel injection pump test bench | common rail injection pump test bench | tester and heui |
| 12PSB |
CRS708c(can add EUI/EUP&Cambox) CRS709c(can add EUI/EUP&Cambox |
CR1000 (200USD with piezo function) |
| BC3000 | BC-CR708(most competitive price) | CRS3 (can add piezo testing function ) |
| BC2001 | CRS200 | VP44 pump tester |
| BC2001PLC | CRS300(can add VP37 VP44 EUIEUP) | VP37 pump tester |
| BCS619 | eps200 | EUI EUP&Cambox |
| BCS815 | BCS200 | V3V4V5 pump tester |
| BCS300 | s60h | |
| BCS205 TEST EBNCH | PQ1000(only 1300USD per set) | Heui hydraulic test bench |
>>>our products on show
Taian Beacon Machine Manufacturing Co., Ltd. is the leading manufacture in diesel injection pump test bench and
turbocharger balancing machine in China ,our products already sold to more than 100 countries .
Our products including common rail injector test bench ,common rail injector tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,Denso ECD-V3 ,V4, V5 pump tester ,
PT cummins pump and injector tester ,common rail tools and spare part .
Welcome you to visit our factory and cooperate in the future.
Q: How can i get this product?
A: We can do the delivery by sea shipping to your nearest port,or to your specific address.
Also we can do the air transport to directly your nearest air port or your specific address.
Q:How can i pay,what kind of payment will be accept?
A:We support TT payment,West Union,also paypal and Trade assurance.
Q:Do you have common rail tools or spare parts?
A:Yes,for sure,we have the common rail tools and spare parts also with best quality and most competitive price.
>>>Welcome your inquiry and contact with us
