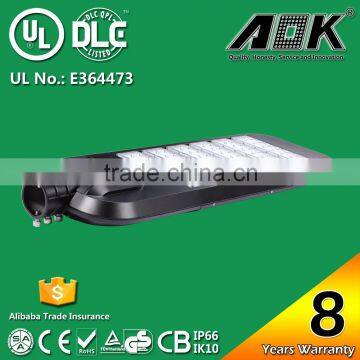

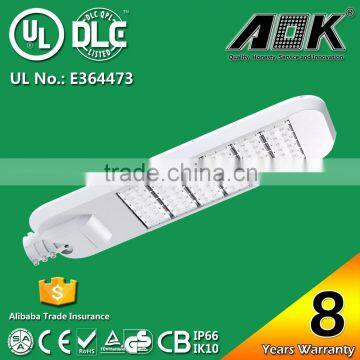

UL DLC 8 Years Warranty IK10 Dimmable Photocell 240W Outdoor LED Street Light
1. Wide Power Range: 40W to 280W
2. Input Voltage: AC90-305V; DC12V/24V
3. Light Efficacy 130lm/w with Lumileds Luxeon led chips, as per LM79 test report
4. Excellent Temperature Control: Temperature rising only <26 ℃
5. L70 @ 62,000hrs - as per TM21 test report.
6. IK10. 10KV SPD is optional.
7. Mitsubishi PC cover will not turn yellow as time goes by.
8. UL/DLC/TUV-GS/EMC/LVD/ROHS/SAA/CB
| To View More AOK LED Lights, pls click the following |
| View More >>> | View More >>> | View More >>> | View More >>> | View More >>> | View More >>> |
| Parameters of AOK LED Street Light |
| Item No. | Power (W) |
LED Qty | Module Qty |
Luminous Flux |
CRI (Ra>) |
Junction Temp (Ta=40℃) |
Max Current (constant) (A) |
| AOK-40WiL | 40 | 14 | 1 | 4400 | 80 | 92.4 | 0.45 |
| AOK-80WiL | 80 | 28 | 2 | 8800 | 80 | 92.4 | 0.9 |
| AOK-120WiL | 120 | 42 | 3 | 13200 | 80 | 92.4 | 1.35 |
| AOK-160WiL | 160 | 56 | 4 | 17600 | 80 | 92.4 | 1.8 |
| AOK-200WiL | 200 | 70 | 5 | 22000 | 80 | 92.4 | 2.25 |
| AOK-240WiL | 240 | 84 | 6 | 26400 | 80 | 92.4 | 2.66 |
| AOK-280WiL | 280 | 98 | 7 | 30800 | 80 | 92.4 | 3.1 |
| Different Light Distributions of AOK LED Street Light |
AOK follows the North American IESNA standard in providing the optional lens with Type II and Type III.
60*150 Beam angle: Mainly suitable for the highway with 2 lanes.
70*150° Beam angle: Mainly suitable for the highway with 3 lanes.
80*150° Beam angle: Mainly suitable for even wider road.
You can always come to us for best and most suitable beam angle suggestions. AOK team can provide
dialux simulations for any specific projects.
| Detailed Image of AOK LED Street Light |
| Certificates of AOK LED Street Light |
| 1. UL Certificate No.: E364473 |
| 2. TUV GS-Mark Approval, Certificate No. S 50301508 |
| 3. CB TEST CERTIFICATE, Ref. Certif. No.: DE 2-018509 |
| 4. SAA Certificate No.: SAA150326 |
| 5. RCM Certificate No.: SAA-150326-EA By SAA Approvals Pty Ltd |
| 6. TM 21 Report - 62500hours - 70, @25℃ |
7. For DLC, please check in website: /QPL#results,search by keyword "AOK" for more details for all the models. |
1. Street Lighting, Highway Lighting, Expressway Lighting
2. Bridge Lighting, Outdoor Area Lighting
3. Stadium Lighting, Parking Lot Lighting
4. Roadway Lighting
5. Area Lighting
AOK LED Street Light, CCT 4000K in Australia
AOK LED Street and Area Light, CCT 5000K in UK
AOK-280WiL replace 1000W for Lexus 4S Store in USA
AOK-240WiL in USA - Square Pole for Parking Lots
AOK-40WiL in Germany - Country Road
AOK-120WiL in Lithuania - Roadway Lighting
AOK LED Street Light, CCT 5000K in Columbia
