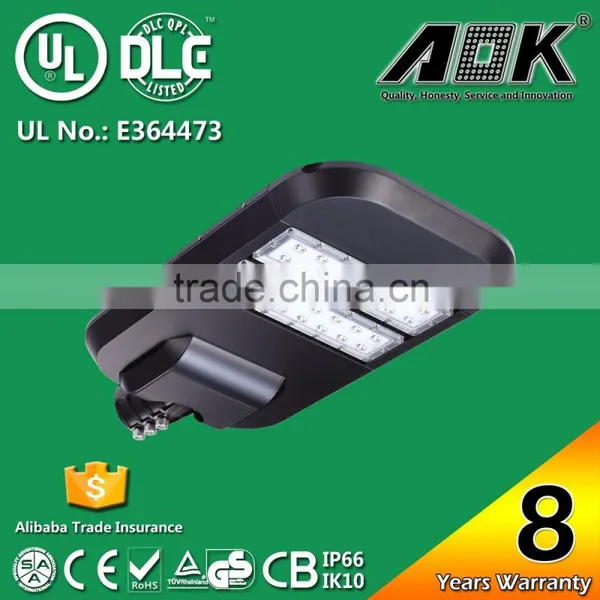

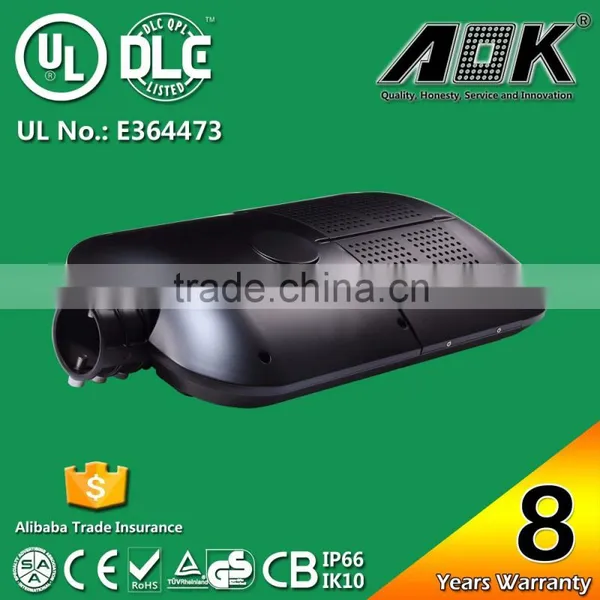

IP66 IK10 Modular Design Lighting Solutions 80W LED Street Light Outdoor Lighting Lamp

IP66 IK10 Modular Design Lighting Solutions 80W LED Street Light Outdoor Lighting Lamp thumbnail-1
IP66 IK10 Modular Design Lighting Solutions 80W LED Street Light Outdoor Lighting Lamp thumbnail-2
IP66 IK10 Modular Design Lighting Solutions 80W LED Street Light Outdoor Lighting Lamp thumbnail-3
IP66 IK10 Modular Design Lighting Solutions 80W LED Street Light Outdoor Lighting Lamp thumbnail-4
IP66 IK10 Modular Design Lighting Solutions 80W LED Street Light Outdoor Lighting Lamp thumbnail-5
IP66 IK10 Modular Design Lighting Solutions 80W LED Street Light Outdoor Lighting Lamp thumbnail-6

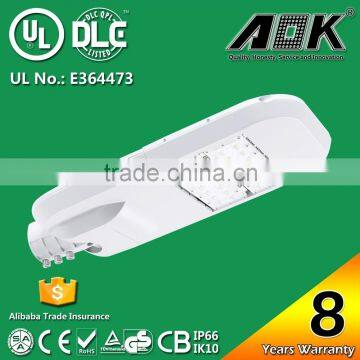

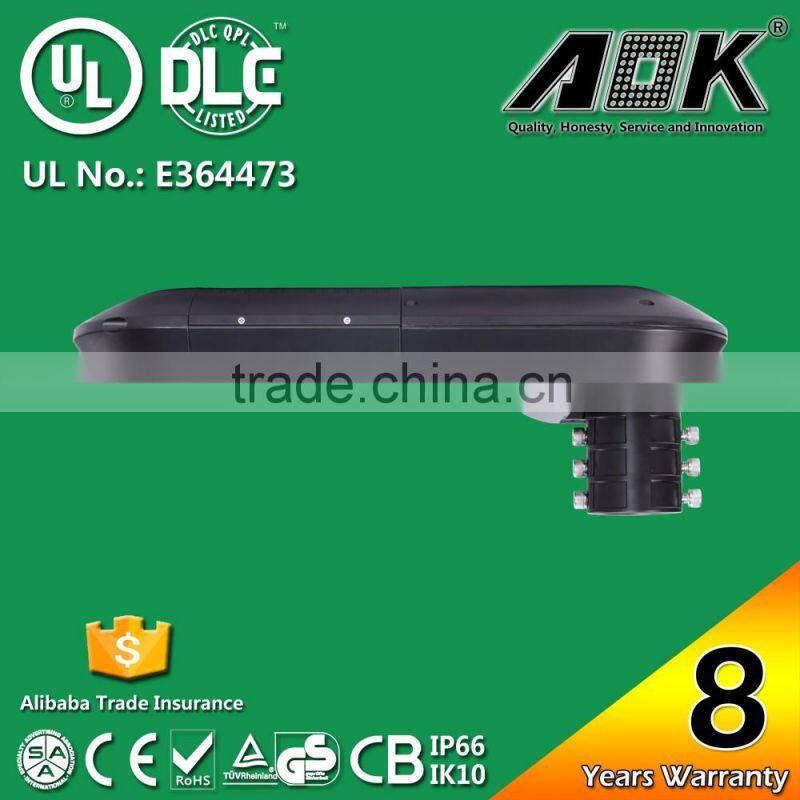

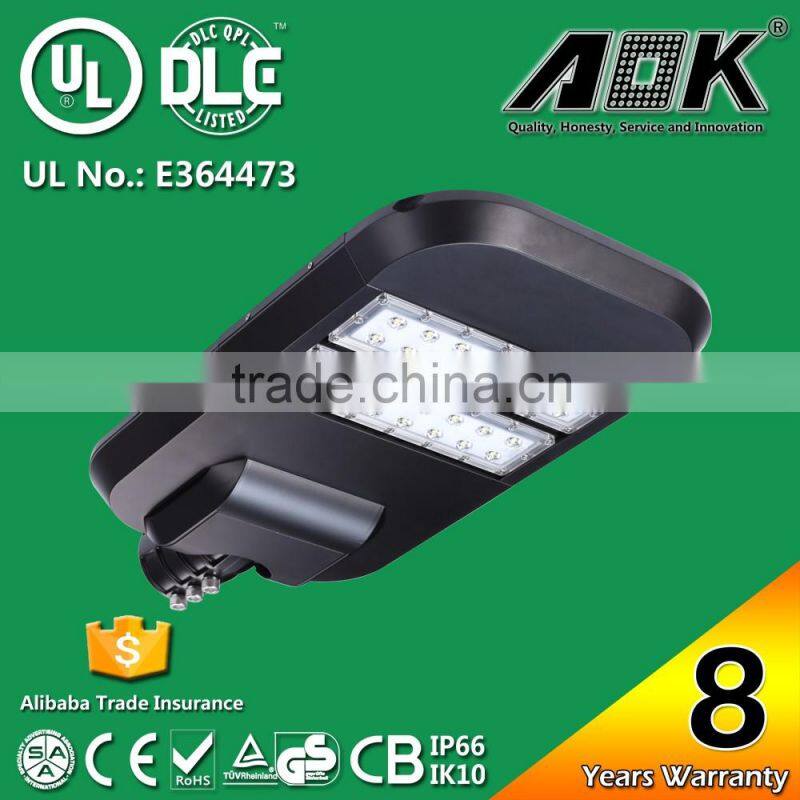

IP66 IK10 Modular Design Lighting Solutions 80W LED Street Light Outdoor Lighting Lamp photo-1

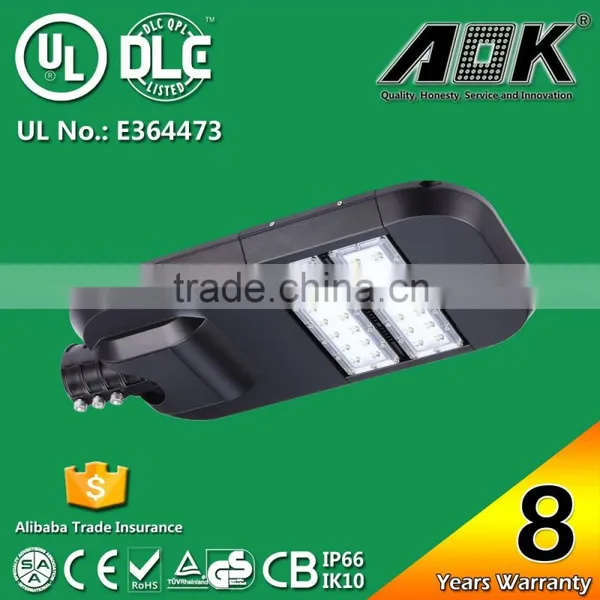

IP66 IK10 Modular Design Lighting Solutions 80W LED Street Light Outdoor Lighting Lamp photo-2
IP66 IK10 Modular Design Lighting Solutions 80W LED Street Light Outdoor Lighting Lamp photo-3
IP66 IK10 Modular Design Lighting Solutions 80W LED Street Light Outdoor Lighting Lamp photo-4
IP66 IK10 Modular Design Lighting Solutions 80W LED Street Light Outdoor Lighting Lamp photo-5
IP66 IK10 Modular Design Lighting Solutions 80W LED Street Light Outdoor Lighting Lamp photo-6
US$ 160 - 180 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
Lumileds chips
Input Voltage(V):
AC90-305V
Lamp Power(W):
40
Contact Supplier Request Quote Chat Now
Fuzhou AOK LED Light Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Lumileds chips
Input Voltage(V) AC90-305V
Lamp Power(W) 40
Lamp Luminous Flux(lm) 8800 lm
Lamp Luminous Efficiency(lm/w) 110
Color Temperature(CCT) Other, 3000K,3500K,4000K,5000K,5700K,6500K
Working Temperature(℃) -40, 50
Working Lifetime(Hour) 62500
Lamp Body Material Aluminum Alloy
IP Rating Other, IP67 Solar LED Street Lamp
Certification CCC, CE, EMC, LVD, SAA
Warranty(Year) 5
Place of Origin Guangdong, China
Brand Name AOK
Model Number AOK-80WiL

IP66 IK10 Modular Design Lighting Solutions 80W LED Street Light Outdoor Lighting Lamp





Main Features

1. Wide Power Range: 40W to 280W

2. Input Voltage: AC90-305V; DC12V/24V

3. Light Efficacy 110lm/w with Lumileds, as per LM79 test report
4. Excellent Temperature Control: Temperature rising only <26 ℃
5. L70 @ 62,000hrs - as per TM21 test report.
6. IK10.  10KV SPD is optional.
7. Mitsubishi PC cover will not turn yellow as time goes by.
8. UL/DLC/TUV-GS/EMC/LVD/ROHS/SAA/CB

IP66 IK10 Modular Design Lighting Solutions 80W LED Street Light Outdoor Lighting Lamp

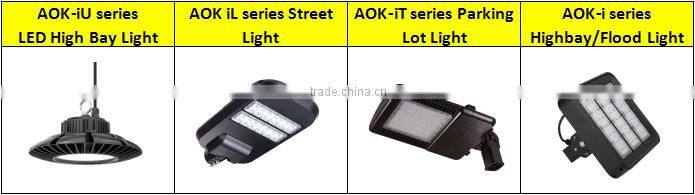

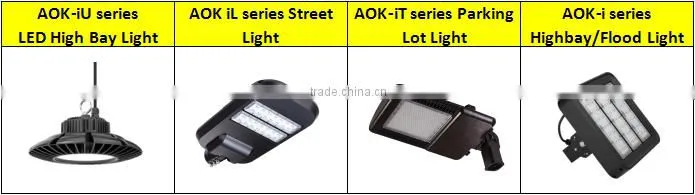

To View More AOK LED Lights, pls click the following



IP66 IK10 Modular Design Lighting Solutions 80W LED Street Light Outdoor Lighting Lamp

    View More>>>         View More>>>         View More>>>

        View More>>>
Product Description
Parameters of 240W AOK LED Street Light
Item No.

Power (W)

 LED Qty

Module Qty

Luminous Flux

CRI (Ra>)

Junction Temp (Ta=40℃)

Max Current (constant) (A)
AOK-40WiL 40 14 1 4400 80 92.4 0.45
AOK-80WiL 80 28 2 8800 80 92.4 0.9
AOK-120WiL 120 42 3 13200 80 92.4 1.35
AOK-160WiL 160 56 4 17600 80 92.4 1.8
AOK-200WiL 200 70 5 22000 80 92.4 2.25
AOK-240WiL 240 84 6 26400 80 92.4 2.66
AOK-280WiL 280 98 7 30800 80 92.4 3.1



Different Light Distributions of 80W AOK LED Light



AOK follows the North American IESNA standard in providing the optional lens with Type II and Type III.



60*150 Beam angle: Mainly suitable for the highway with 2 lanes.
70*150° Beam angle: Mainly suitable for the highway with 3 lanes.
80*150° Beam angle: Mainly suitable for even wider road.



You can always come to us for best and most suitable beam angle suggestions. AOK team can provide
dialux simulations for any specific projects.

IP66 IK10 Modular Design Lighting Solutions 80W LED Street Light Outdoor Lighting Lamp

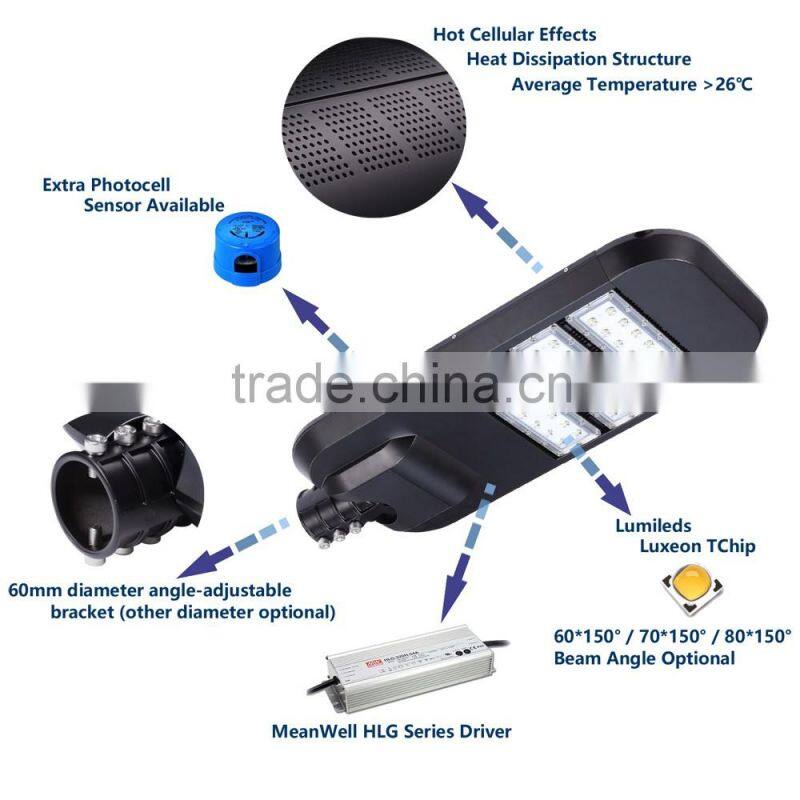

Detailed Image of 80W AOK LED Light



IP66 IK10 Modular Design Lighting Solutions 80W LED Street Light Outdoor Lighting Lamp





IP66 IK10 Modular Design Lighting Solutions 80W LED Street Light Outdoor Lighting Lamp











Certifications



Certificates of 80W AOK LED Light



1. UL Certificate No.: E364473
2. TUV GS-Mark Approval, Certificate No. S 50301508
3. CB TEST CERTIFICATE, Ref. Certif. No.: DE 2-018509
4. SAA Certificate No.: SAA150326
5. RCM Certificate No.: SAA-150326-EA By SAA Approvals Pty Ltd
6. TM 21 Report - 62500hours - 70, @25℃

7. For DLC, please check in website: /QPL#results,search by keyword "AOK" for more details for all the models.

  IP66 IK10 Modular Design Lighting Solutions 80W LED Street Light Outdoor Lighting Lamp

Application&Projects



1. Street Lighting, Highway Lighting, Expressway Lighting

2. Bridge Lighting, Outdoor Area Lighting
3. Stadium Lighting, Parking Lot Lighting
4. Roadway Lighting
5. Area Lighting



Projects



AOK LED Street Light, CCT 4000K in Australia



IP66 IK10 Modular Design Lighting Solutions 80W LED Street Light Outdoor Lighting Lamp

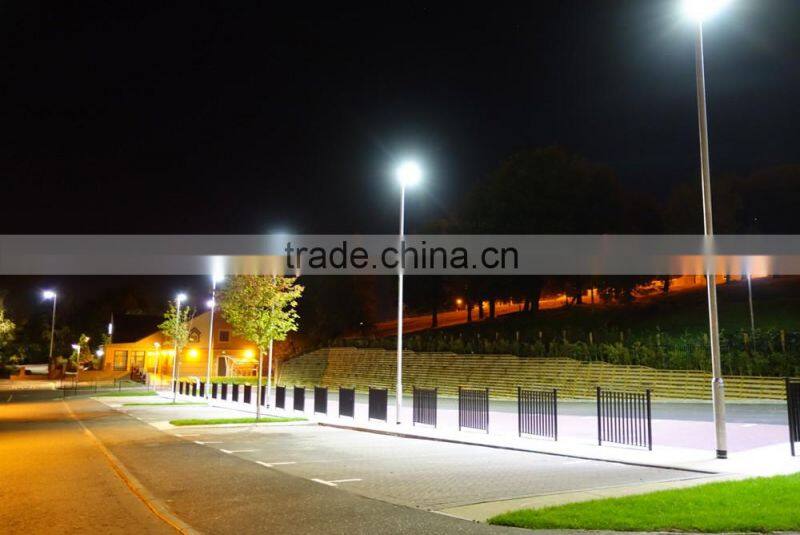

AOK LED Street and Area Light, CCT 5000K in UK



IP66 IK10 Modular Design Lighting Solutions 80W LED Street Light Outdoor Lighting Lamp



AOK-280WiL replace 1000W for Lexus 4S Store in USA

IP66 IK10 Modular Design Lighting Solutions 80W LED Street Light Outdoor Lighting Lamp

AOK-240WiL in USA - Square Pole for Parking Lots

IP66 IK10 Modular Design Lighting Solutions 80W LED Street Light Outdoor Lighting Lamp

  AOK-40WiL in Germany - Country Road IP66 IK10 Modular Design Lighting Solutions 80W LED Street Light Outdoor Lighting Lamp

 AOK-120WiL in Lithuania -  Roadway LightingIP66 IK10 Modular Design Lighting Solutions 80W LED Street Light Outdoor Lighting Lamp

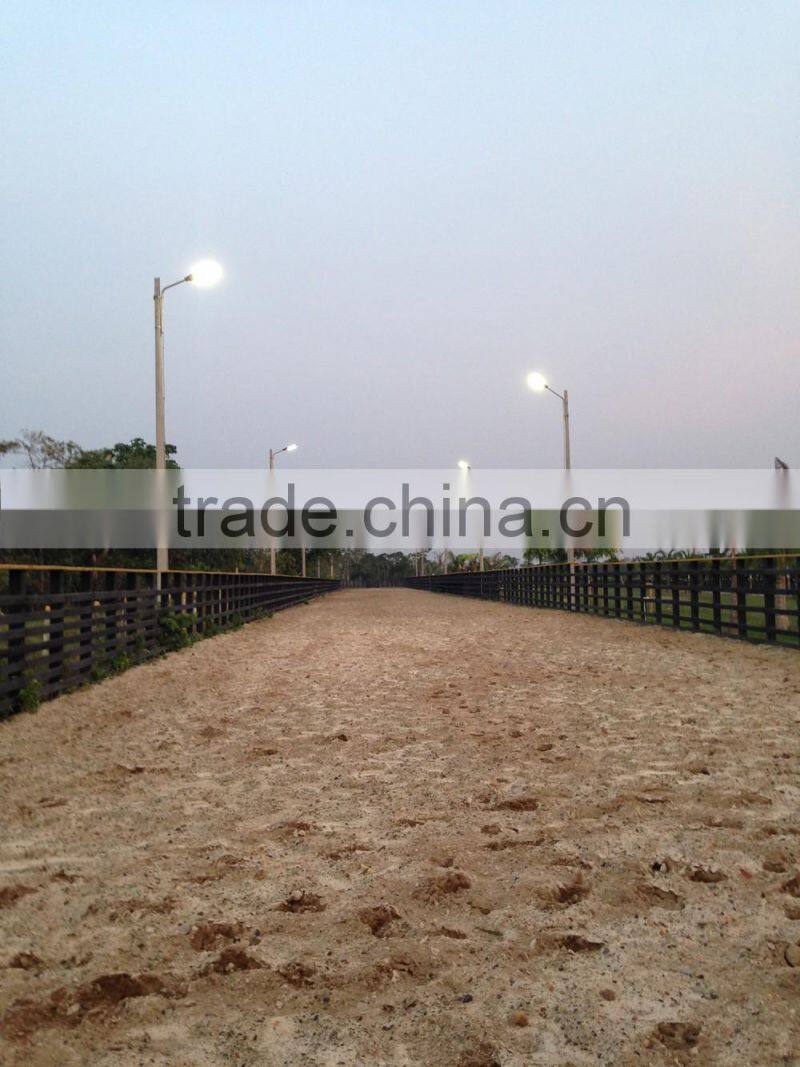

AOK LED Street Light, CCT 5000K in Columbia



IP66 IK10 Modular Design Lighting Solutions 80W LED Street Light Outdoor Lighting Lamp
