Common rail diesel injector tester CRS200 with one year warranty
The function of the tester for CR high pressure pumps is to provide
the desired signal to drive the solenoid in the pump being tested. CRS200
common rail Tester can used for testing following pumps: BOSCH
CP1CP2CP3SIEMENS, DENSO HP2 AND HP3. It has the functions to test
the Electromagnetic and Piezoelectric injectors.
It also can test 6 common rail injectors in one time.
Design Features
* Modulated driving signal to ensure the safety of the solenoid of the CR
pump
* Adjustable duty cycle for the driving signal
* Short circuit protection for the output circuitry of the solenoid driving
signal
* Measure and LCD display rail pressure
* To test if the CR injector is still function, To connect a CR injector to a
high pressure fuel source by a high pressure fuel line and to the CR tester by
harness. The tester is set to continuous injection mode. The CR injector is in
normal condition, if it is capable to inject fuel under the driving signals by
the tester.
* To test injector spray atomization, To connect a CR injector to a high
pressure fuel source by a high pressure fuel line
and to the CR tester by harness. The tester is set to single injection mode to
allow observing the nozzle spray pattern to judge if the nozzle is normal or
orifice plugged.
* Checking the Injectors return oil and injection oil.

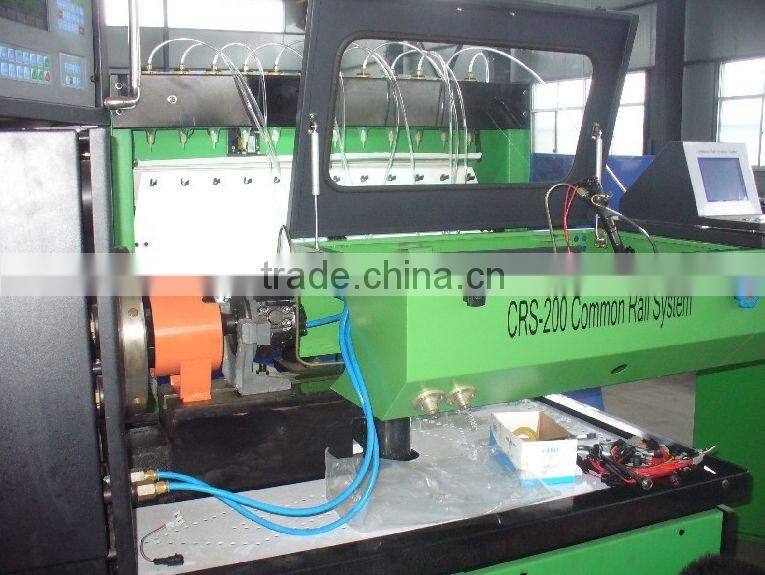

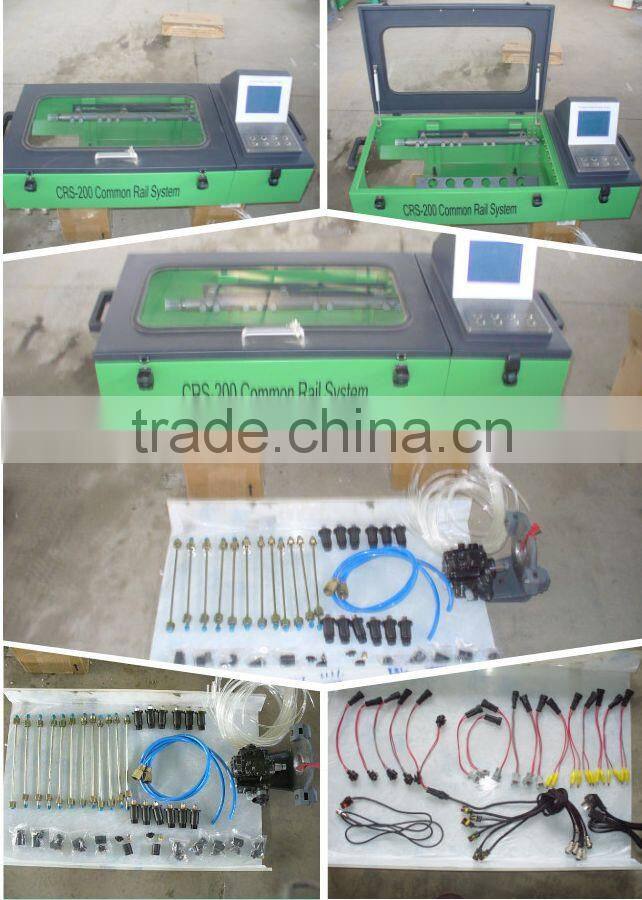

All details photos of crs200 tester
Other function machine you need just click model name in this list! :
| common rail test bench | diesel fuel test bench | common rail tester |
| CRS708c(can add EUI/EUP&Cambox) | 12PSB | CR1000 (200USD with piezo function) |
| BC-CR708(most competitive price) | BC3000 | CR2000A (can connect with diesel test bench) |
| CRS200 | BC2001 | VP44 pump tester |
| CRS300(can add VP37 VP44 EUIEUP) | BC2001PLC | VP37 pump tester |
| CRI2000 | BCS619 | EUI EUP&Cambox |
| BCS200 | BCS815 | V3V4V5 pump tester |
| BCS300 | BC-CR819 | |
| PQ1000(only 1300USD per set) |
Q: How can i get this product?
A: We can do the delivery by sea shipping to your nearest port,or to your specific address.
Also we can do the air transport to directly your nearest air port or your specific address.
Q:How can i pay,what kind of payment will be accept?
A:We support TT payment,West Union,also paypal and Trade assurance.
Q:Do you have common rail tools or spare parts?
A:Yes,for sure,we have the commin rail tools and spare parts also with best quality and most competitive price.
