12psb Injection Pump Test Bench Use for Test Mechanical Pump and Injector

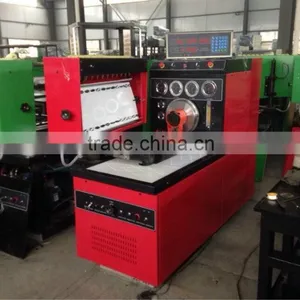

12psb Injection Pump Test Bench Use for Test Mechanical Pump and Injector thumbnail-1
12psb Injection Pump Test Bench Use for Test Mechanical Pump and Injector thumbnail-2

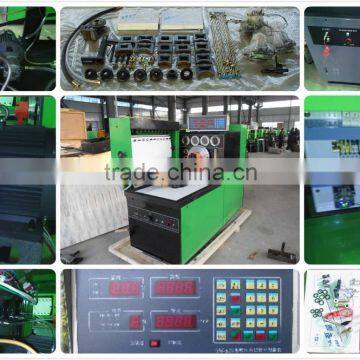

12psb Injection Pump Test Bench Use for Test Mechanical Pump and Injector photo-1
12psb Injection Pump Test Bench Use for Test Mechanical Pump and Injector photo-2
US$ 2,200 - 2,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Engine Analyzer
Voltage:
220v 60hz / 380v 50hz
Power:
7.5-18.5kw
Contact Supplier Request Quote Chat Now
Taian Beacon Machine Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Engine Analyzer
Voltage 220v 60hz / 380v 50hz
Power 7.5-18.5kw
Certification ISO&CE
Applicable Models All of models for car and truck
Place of Origin Shandong, China
Brand Name BEACON
Model Number 12PSB
Warranty 1 Years

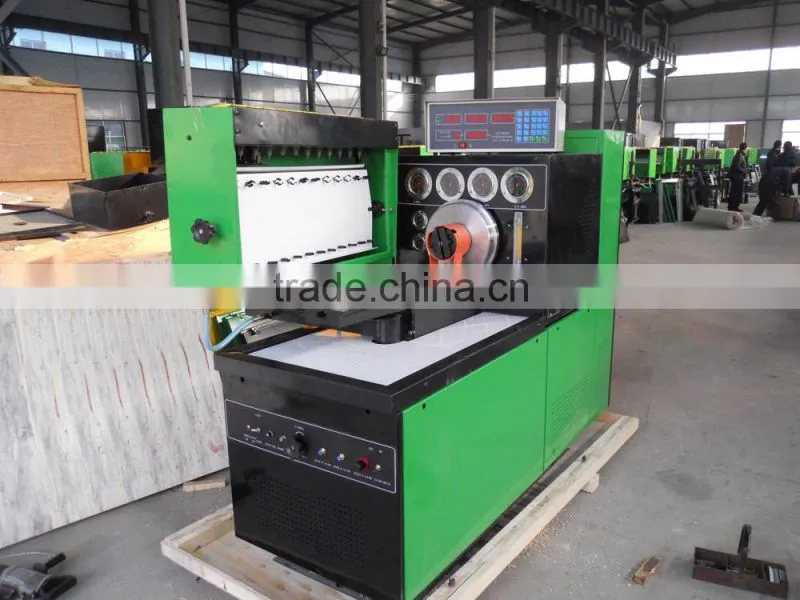

12psb injection pump test bench use for test mechanical pump and injector

12PSB bosch diesel fuel injection pump test bench


12psb injection pump test bench use for test mechanical pump and injector



Introduction
12PSB series diesel fuel injection test machine is design for customer's require. This series test bench adopt high quality frequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy.  It is the kind of  product with high quality and good price in our business.

Main function
1.Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)



Also WE HAVE TEST BENCH OPTIONAL FUNCTION BELOW:

1.TRAVEL OF TOOTH BAR

2.OIL LUBRICATE

3.FORCED COLLING

4.Checking of the advance angle of advance device

Technical characteristic



Type

Technical characteristic

Output power(KW)

12PSB-I

1.test cylinders:12
2.RPM 0-4000.
3.Three speed preset.
4.With 12v/24v DC power
5.digital display of oil cont times

5.5
7.5
11
15
18.5

12PSB220V-I

SAME 12PSB-I

4

12PSB-II

1.test cylinders:12
2.RPM 0-4000
3.Three speed preset
4.With 12v/24v DC power
5.digital display of oil count times
6.digital display of temperature
7.Measurement of oil return of distributing pumps
8.the internal pressure of VE pump.

5.5
7.5
11
15
18.5

12PSB220V-II

SAME 12PSB-II

4

12PSB-III

1.test cylinders:12
2.RPM 0-4000
3.Ten speed preset
4.With 12v/24v DC power
5.digital display of oil count times
6.Digital display of temperature
7.with air supply
8.Measurement of oil return of distributing pumps
9.Measure oil flux of VE pumps
10.Measure the internal pressure of VE pump.

5.5
7.5
11
15
18.5

12PSB220V-III

SAME 12PSB-III

4

12PSB-IV

1.test cylinders:12
2.RPM 0-4000
3.Ten speed preset
4.With 12v/24v DC power
5.digital display of oil count times
6.Digital display of temperature
7.with air supply
8.Measure advance angle
9. Measure oil return of VE pumps
10. Measure oil flux of VE pumps
11.Measure the internal pressure of VE pump.

5.5
7.5
11
15
18.5

12PSB220V-IV

SAME 12PSB-IV

4

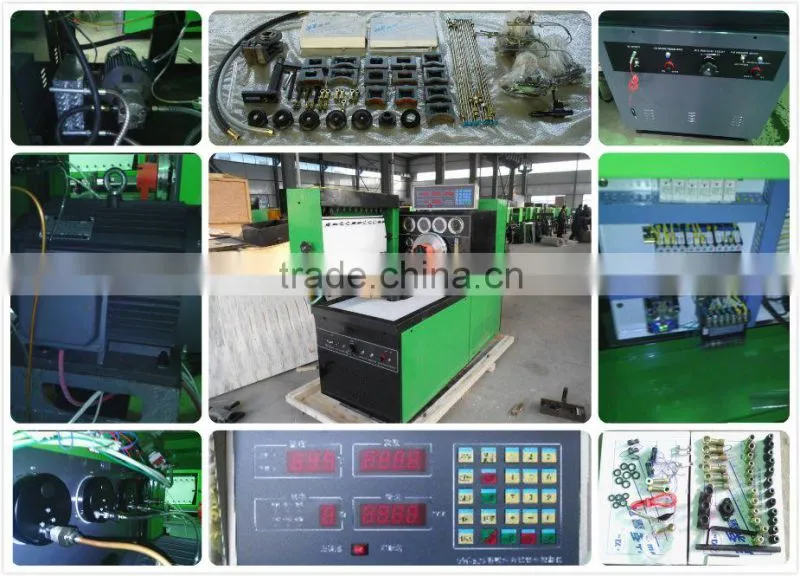

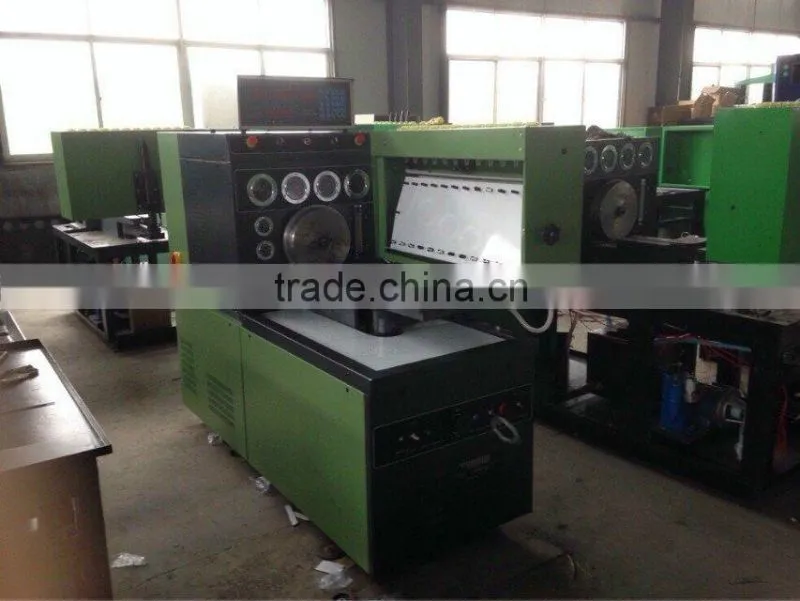

                                               OuR product and details:

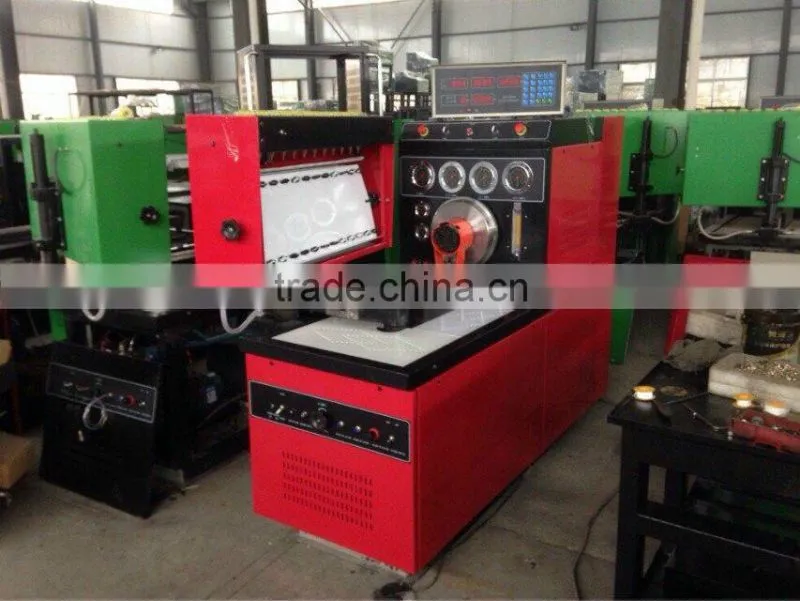

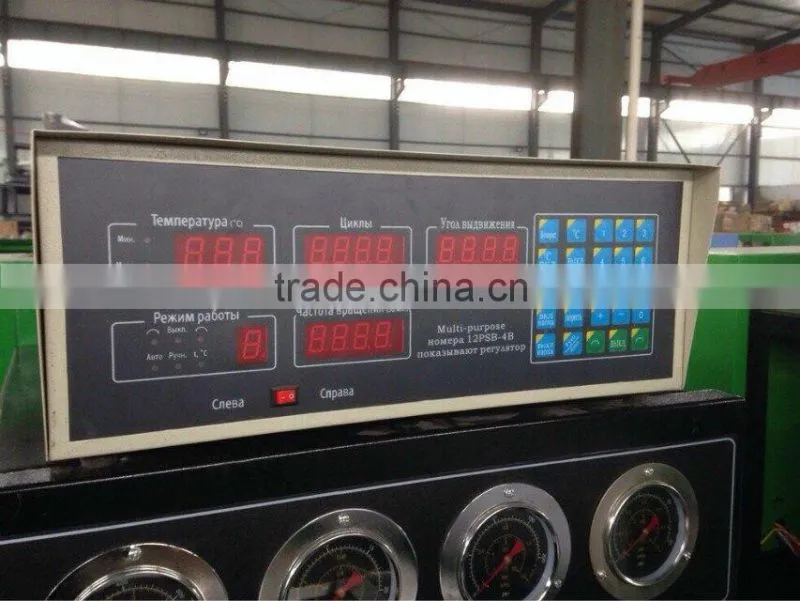

Now we have some new product with Russia system,also have red and green two color:

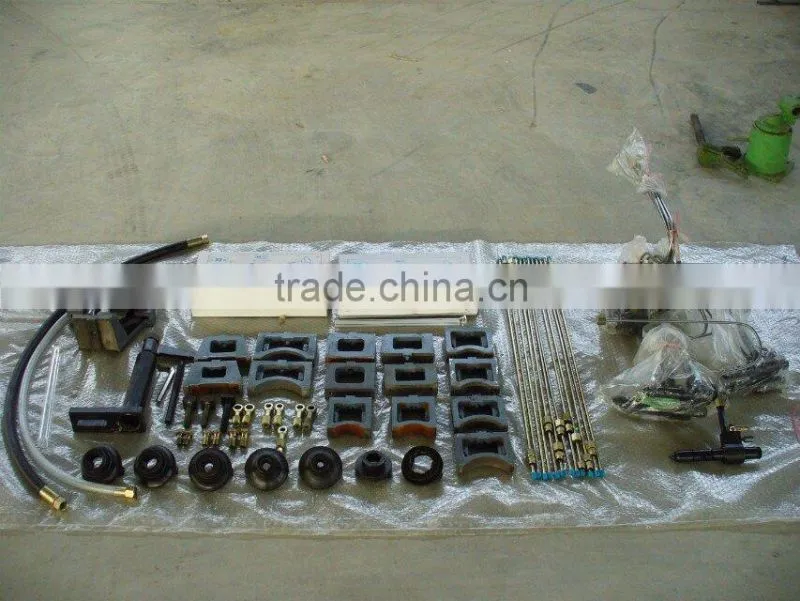

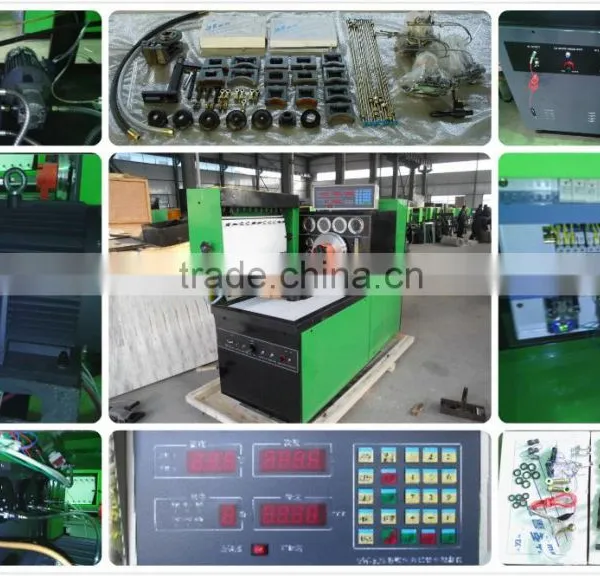

Check the accessories for our 12PSB:









Other function machine you need just click model name in this list! :





common rail test bench diesel fuel test bench common rail tester
CRS708c(can add EUI/EUP&Cambox) 12PSB CR1000
(200USD with piezo function)
BC-CR708(most competitive price) BC3000 CR2000A
(can connect with diesel test bench)
CRS200 BC2001 VP44 pump tester
CRS300(can add VP37 VP44 EUIEUP) BC2001PLC VP37 pump tester
CRI2000 BCS619 EUI EUP&Cambox
BCS200 BCS815 V3V4V5 pump tester
BCS300 BC-CR819
PQ1000(only 1300USD per set)







Packaging & Shipping







Our Services

 12psb injection pump test bench use for test mechanical pump and injector

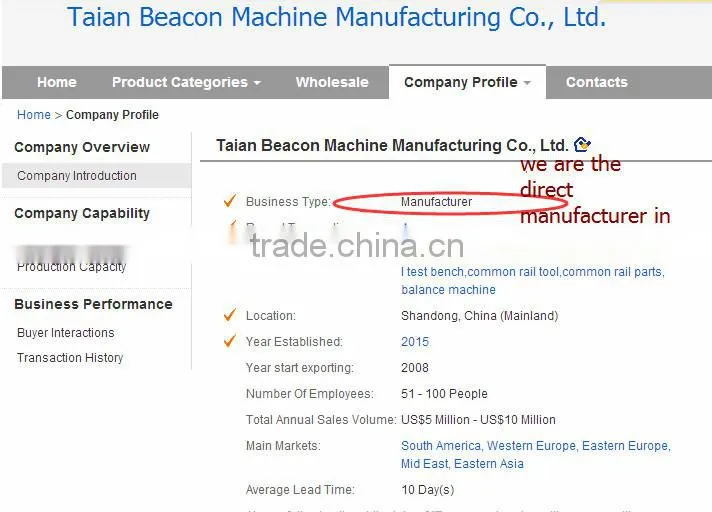

Company Information

 12psb injection pump test bench use for test mechanical pump and injector



 12psb injection pump test bench use for test mechanical pump and injector

FAQ

 Q: How can i get this product?

A: We can do the delivery by sea shipping to your nearest port,or to your specific address.



Also we can do the air transport to directly your nearest air port or your specific address.





Q:How can i pay,what kind of payment will be accept?



A:We support TT payment,West Union,also paypal and Trade assurance.





Q:Do you have common rail tools or spare parts?



A:Yes,for sure,we have the commin rail tools and spare parts also with best quality and most competitive price.
