EUI/EUP electronic unit injector and pump tester with CAM BOX
>>>INTRODUCTION
EUI/EUP Tester CAM BOX /eui eup adapter kits is used to test differnt EUI/EUP
The repair tester is designed to perform repair tests for different type of Electronic Unit Injectors (EUI) and Electronic Unit Pumps (EUP).The tester consists of a mechanical cam box with specifiedEUI/EUP adapter kits and an electronic controller, The cam box will be driven by a standard high pressure fuel injection pump test bench.
>>DESIGN FEATURES

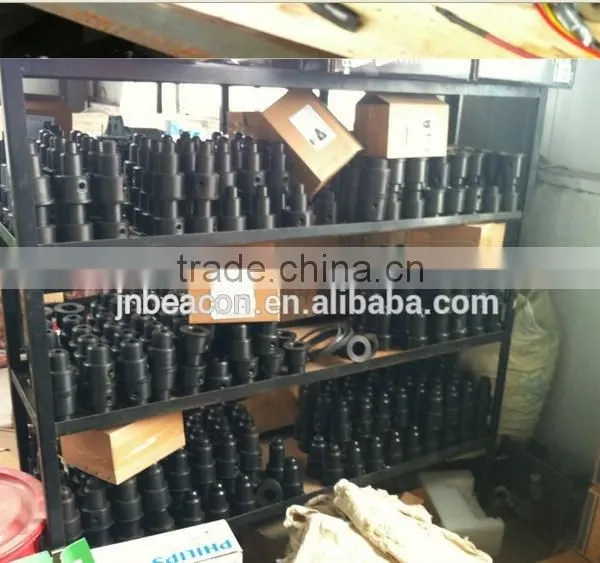

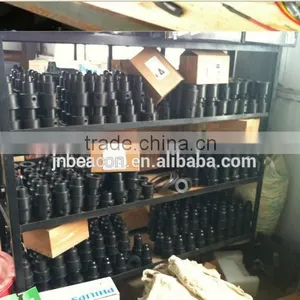

eui eup tester with cam box /eui eup adapter kits
| 1.One cambox for all major EUI/EUP models with corresponding adapters and camshafts |
|
2.Cambox mounting height 125mm (from the center of camshaft to bench mounting platform) for Bosch type pump test bench |

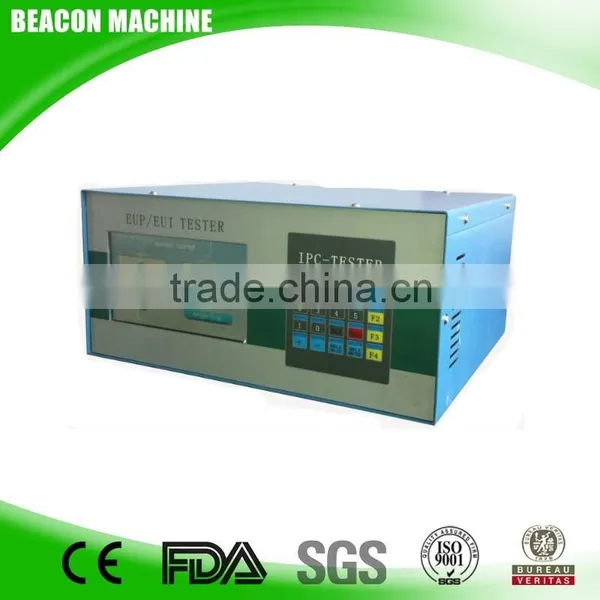

| 3.Controller is designed for three kinds of drive mode |
| 4.Low voltage for most battery voltage driven EUI/EUP |
| 5.High voltage for Cat EUI |
| 6.Cumming Celect EUI |
| 7.Adjustable Begin of Injection (BOI) in Crank Angle Degrees |
| 8. Adjustable Injection Period (PW) in Crank Angle Degrees |
| 9. Engine standard cam lobe designs |
| 10. Four levels of cam lift |
|
11.Constant velocity cam lobe to generate higher injection pressure, 3 times higher than cheap eccentric cams |
Eui Eup tester with cam box /eui eup adapter kits

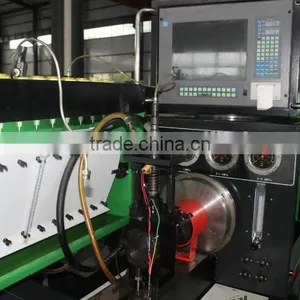

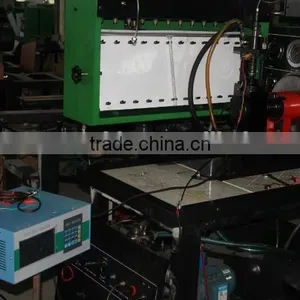

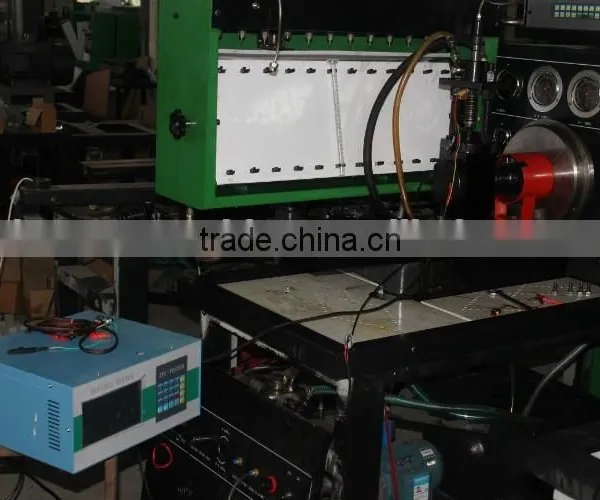

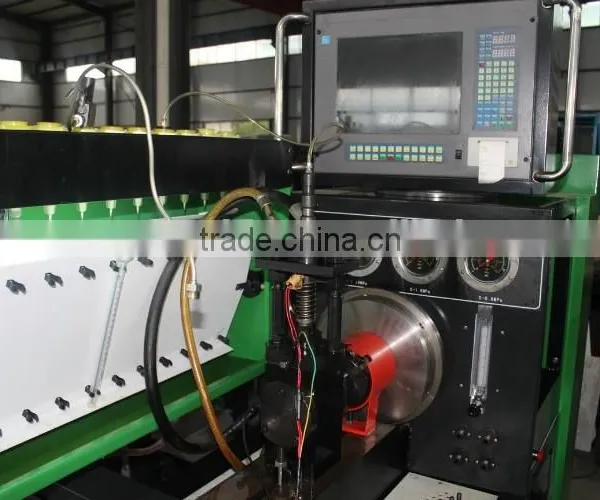

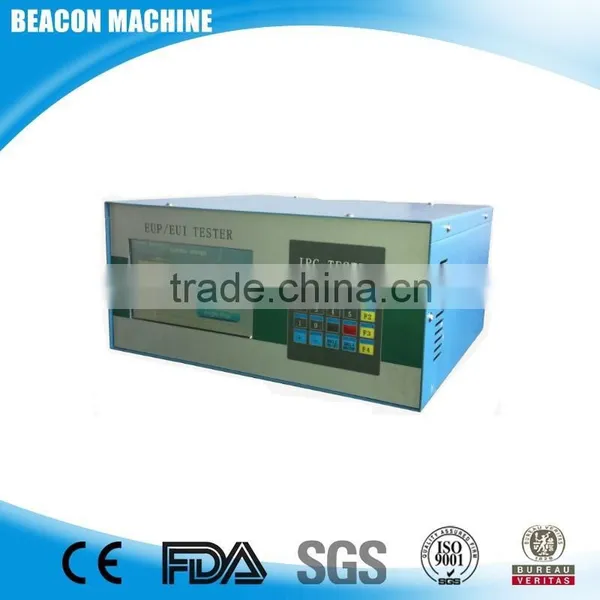

Photo of product

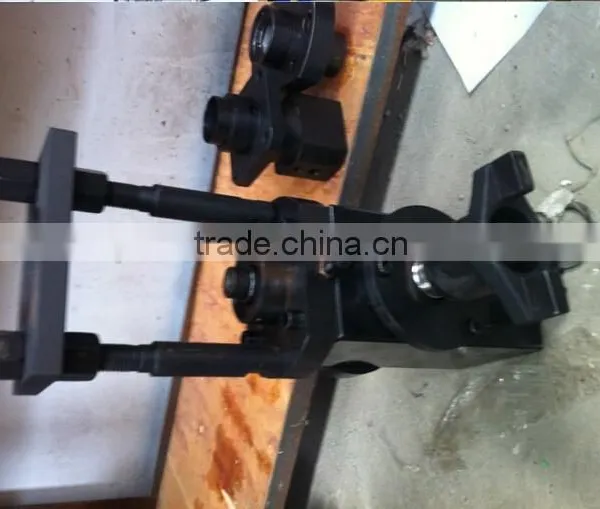

The cambox
Q1: What is your Trade Terms?
A: FOB CFR CIF EXW DDP and DDU
Q2: What is your payment terms?
A: T/T,Western Union ,PayPay,Escrow and L/C
Q3: What is your delivery time?
A: Test bench is 7-10 working days,tester, diagnostic tool and injectors,we have stock.
Q4: Why should I choose your product?
A: We can provide you the best quality and the most competitive price ,and we have our own engineer,if you have any requirements you can contact us directly~
