12PSB diesel fuel injection pump test bench from BEACON buy direct manufacturer
INTRODUCTION
12PSB diesel fuel injection pump test bench from BEACON buy direct manufacturer is design for customer's require. This series test bench adopt high quality frequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy. It is the kind of product with high quality and good price in our business.
MAIN FUNCTION
1. Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
AlSO WE HAVE TEST BENCH OPTIONAL FUNCTION BELOW:
1.TRAVEL OF TOOTH BAR
2.OIL LUBRICATE
3.FORCED COLLING
4.Checking of the advance angle of advance device
TECHNICAL CHARACTERISTIC
Type |
Technical characteristic |
Output power(KW) |
12PSB-I |
1.test cylinders:12 |
5.5 |
12PSB220V-I |
SAME 12PSB-I |
4 |
12PSB-II |
1.test cylinders:12 |
5.5 |
12PSB220V-II |
SAME 12PSB-II |
4 |
12PSB-III |
1.test cylinders:12 |
5.5 |
12PSB220V-III |
SAME 12PSB-III |
4 |
12PSB-IV |
1.test cylinders:12 |
5.5 |
12PSB220V-IV |
SAME 12PSB-IV |
4 |

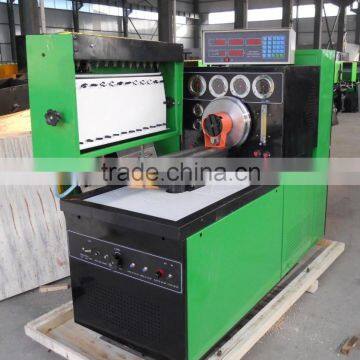

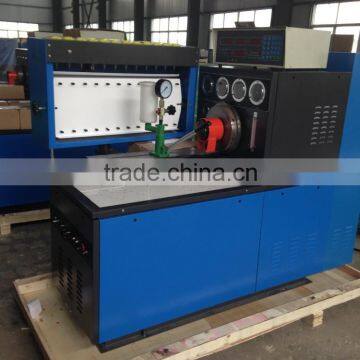

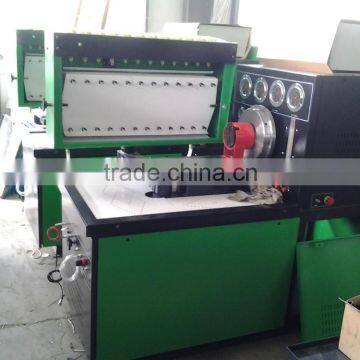

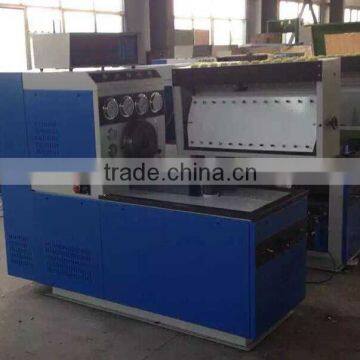

Our product and details:
Now we have some new product with Russia system,also have red and green two color:

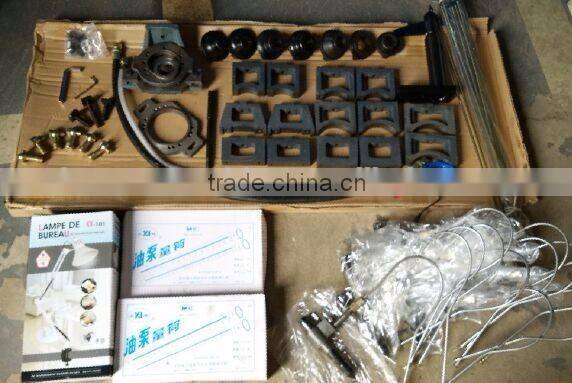

Check the accessories for our 12PSB:
We also have other model test bench,please point the model and check:
| Diesel Injection Pump test bench | Common Rail System Test Bench | Common Rail Tester and Electronic Pump Tester |
| 12PSB | PQ1000 | CR1000 |
| MINI12PSB | BCS300 | CR2000 |
| BC3000 | BC-CR708 | CR2000A or CRS3 |
| BCS619 | BC-CR819 | EUI/EUP tester and CAM BOX |
| BCS815 | CRS708 | VP44 tester |
| BC2001 | CRS709 |
Q1: What is your Trade Terms?
A: FOB CFR CIF EXW DDP and DDU
Q2: What is your payment terms?
A: T/T,Western Union ,PayPay,Escrow and L/C
Q3: What is your delivery time?
A: Test bench is 7-10 working days,tester, diagnostic tool and injectors,we have stock.
Q4: Why should I choose your product?
A: We can provide you the best quality and the most competitive price ,and we have our own engineer,if you have any requirements you can contact us directly~
