EUROPEAN BOX TRANSFORMER
ABOUT SHOUGUANG JUNENG ELECTRIC CO., LTD
PRODUCT FEATURES

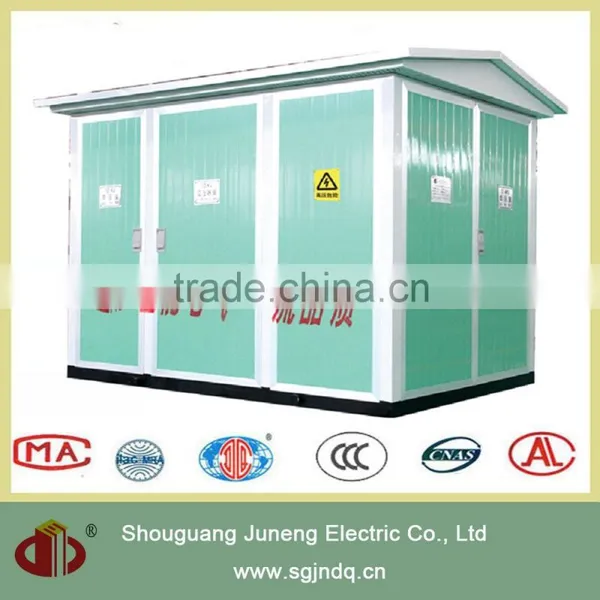

1. BXW series pre-loaded Europe box transformer substation consists of HV switchgear, power transformer and LV switchgear.
2.it has the features of samll space, less investment, easy assembly, good-looking apperance and weather resistance.
3.the transformer is a type of oil-immersed or epoxy resin dry transformer with low loss, low tempreture rise, low noise, full-sealing and free maintenance.
4. high voltage unit is composed of incoming, outgoing and meter cabinet.
low voltage unit consists of meter cabinet, general breaker line cabinet, LV feeder cabinet, capacitor compensation cabinet.
5.payment terms: T/T with 30% deposit or L/C
6.packing detail: wooden case or at the requirement of customers
7.delivery time: usually within 30 days after the deposit
What we can do better
- Quality Assurance--From the very beginning, JUNENG ensures quality in every step to achieve the best quality.
- Experience Sharing--With over 10 years’ experience in power industry, JUNENG brings you an optimized solution.
- Quick Response--In response to your needs without delay, JUNENG knows the value of your time.
Technical Parameters
transformer |
high voltage |
low voltage |
Remark |
|
rated voltage |
|
12kv |
0.4kv |
|
transformer rated capacity |
50-1600kva |
|
|
|
rated current |
|
630A |
100A-2500A |
|
rated frequency |
50 HZ |
50 HZ |
50 HZ |
|
rated short-time withstand current |
|
16KA/2(4)S 20KA/2(4)S |
250-315KVA:15KA 400-800KVA:30KA |
|
rated peak withstand current |
|
40KA,50KA 40KA,50KA |
250-315KVA:15KA 400-800KVA:30KA |
|
rated short-circuit making current |
|
|
|
40KA, 50KA |
rated noise grade |
|
|
|
Oil immersed transformer ≤50db, dry transformer ≤55db |
reactive power compensation |
|
|
|
The standard is 15-30% of transformer capacity |
|
|
|
|

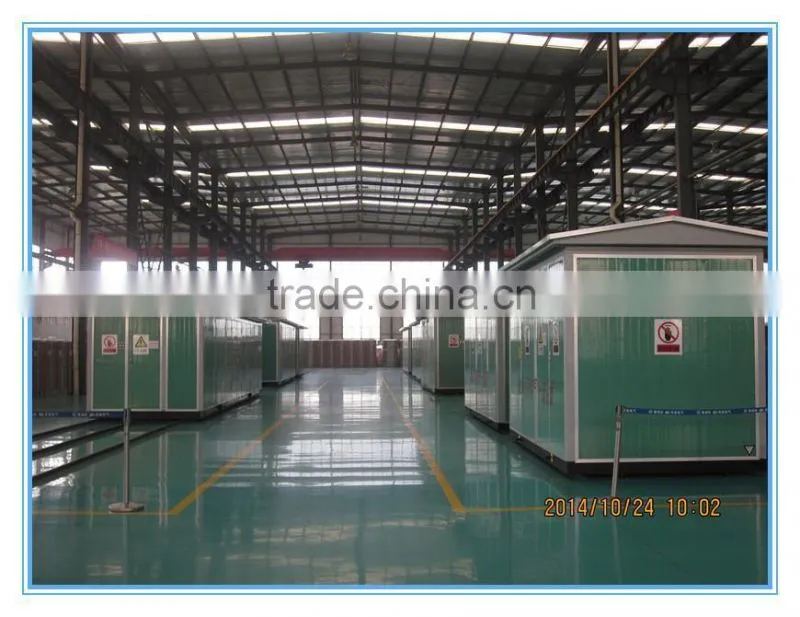

Workshop & Equipment
|
|
|
|
|
|
