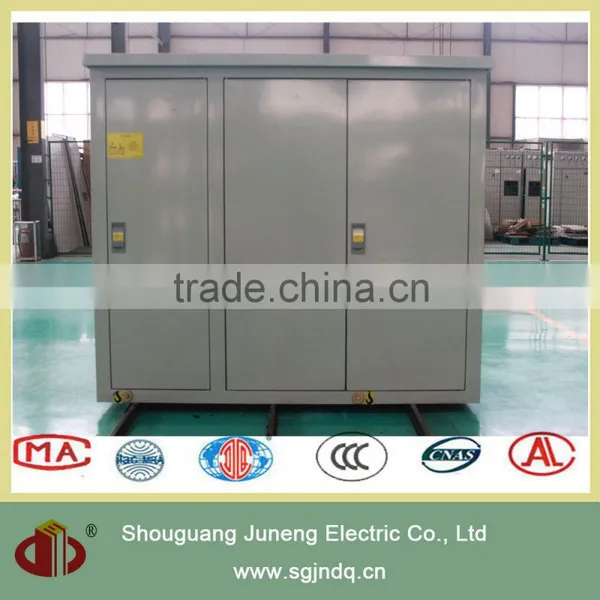

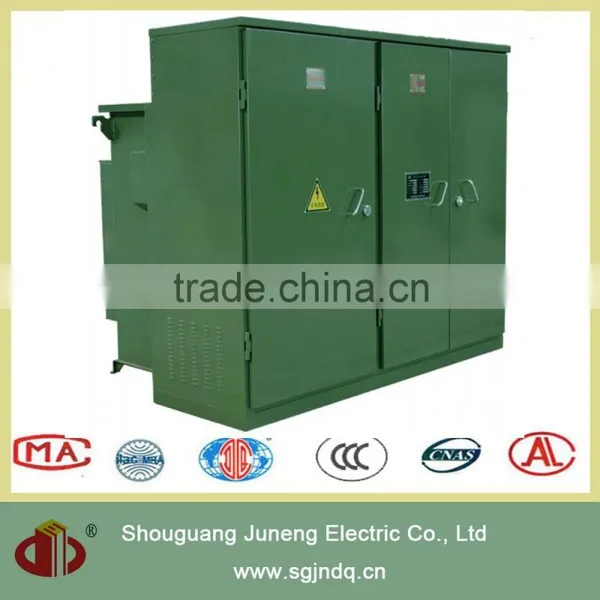

American Box Transformer Substation

Name: American Box Transformer Substation
Brand: Juneng or customized
SKU: 130680737
Availability: InStock

US$ 1,000 - 20,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Juneng or customized

Model Number:

BXW

Shouguang Juneng Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Juneng or customized

Model Number BXW

Product Description

1. Technical Parameter

UNIT		SWITCHGEAR	CIRCUIT BREAKER	ITEM		PARAMETER
high voltage unit	40.5kv	KYN10-40.5 XGN17-40.5 KYN61-40.5	ZN85-40.5 ZN12-40.5 LN2-35(Z) VEP-40.5 FP-40.5 etc	rated voltage	kV	40.5
				rated current	A	1250-2500
				rated short circuit switching current	kA	20-31.5
				rated short circuit making current (peak)	kA	50-80
		loading switch NAL36 NALF36		rated current	A	630
				rated short time withstand current	kA/S	25/2
low voltage unit	12kV	KYN28-12 XGN2-12 KZN1-12 KYN1-12 PIX	ZN28-12 VD4 VS1 VNG HVX etc	rated voltage	kV	12
				rated current	A	630-3150
				rated short circuit breaking current (effective value)	kA	16-50
				rated short-circuit making current (peak)	kA	40-125
		HXGN11-12(F) HXGNn26-12(F)	load switch FN16-12	rated current	A	630
				rated short time withstand current	kA/S
	0.4KV	GGD GCK GCS	DW15 DW17 ME M DZ20 CM H S series	circuit breaker rated current	A	no more than 4000A
				making and breaking capacity 400V	kA	28-80
transformer unit		SC9 S9 SZ9 SZ11 S11 series transformer		rated voltage	kV	40.5
				rated capacity	kVA	400-20000
				ratio	kV/kV	35/10 35/6.3 35/0.4
cabinet	enclosure protection degree					IP54
	noise level				dB	no more than 55

2. Service Condition

ambient tempreture: -25-+40 ℃

altitude: less than 1000m

vertical inclination: less than 3 degree

relative humidity: less than 90% (+25 ℃ )

installation sites: no conductive dust, corrosive gas, explosion, fire or excessive shaking

Packaging & Shipping

1.payment terms: T/T with 30% deposit or L/C

2.packing detail: wooden case with shipping marks or acc to the requirement of customers

3.delivery time: usually within 30 days after the deposit

4.delivery by sea, by train, by air and by express delivery

terms: FOB CIF EXW
