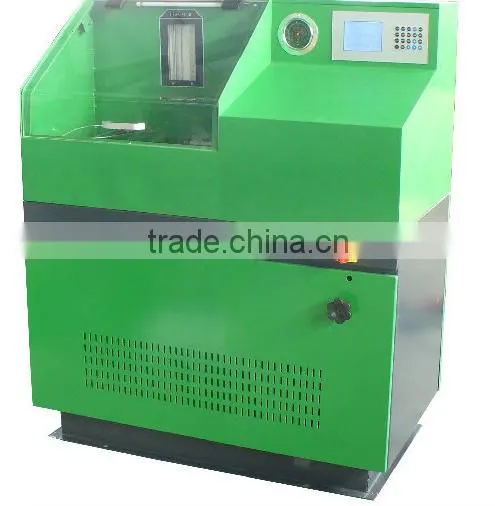

most popular products heui hydraulic cylinder test bench for sale from manufacturer in china
Application
The test bench is designed to test up to four HEUI injectors, which are equipped on the following engines:
- Navistar T444E, as Ford 7.3L Power Stroke Engines
- Navistar DT466E
- Navistar I530E
- Caterpillar 3126B laboratory test bench
Function
- China HEU Itest bench Measurement fuel delivery of HEUI injectors
- Sealing test for injector upper seat of the solenoid control valve HEUi Itest bench
Specification
Motor |
10HP motor |
Actuation Oil system |
0-300bar, |
Test Oil Supply |
0-4bar |
Test Oil Tank Capacity: |
40L |
Temperature control |
Range: 10~50 Accuracy: +/- 1 Digital Display |
Injection Quantity Measurement |
150ML glass tube |
Main Features of HEUI Control Module
Adjustable Range of Injection Pulse Width |
0~6ms |
Fuel Delivery Measurement Counter Range |
1~9999 |
Simple, User-Friendly Display and Mini-Key Padc | |
Detail you can check down here:

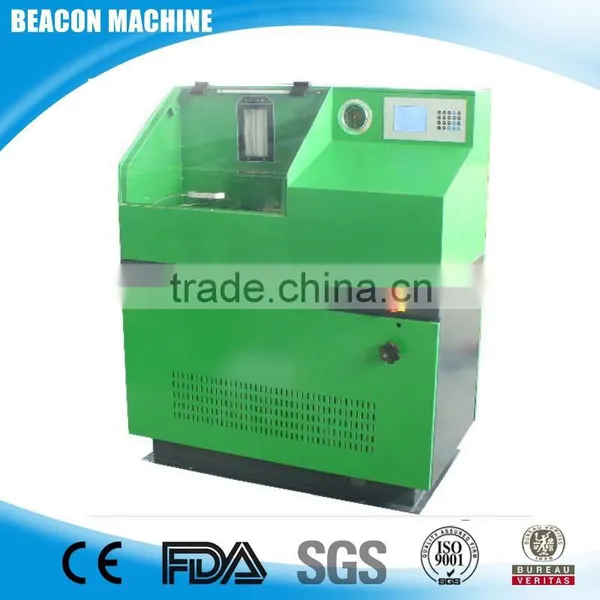

First HEUI with computer system

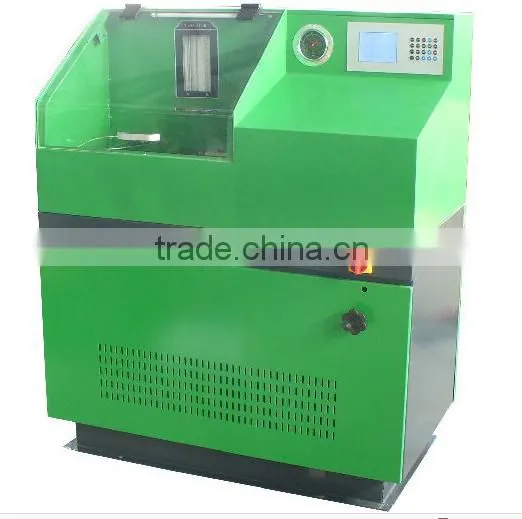

Then HEUI without computer
HEUI adapter
>>>we also have other model number test bench for injector and pump ,pls point the model name and then check details
| diesel fuel injection pump test bench | common rail injection pump test bench | tester and heui |
| 12PSB |
CRS708c(can add EUI/EUP&Cambox) CRS709c(can add EUI/EUP&Cambox |
CR1000 (200USD with piezo function) |
| BC3000 | BC-CR708(most competitive price) | CRS3 (can add piezo testing function ) |
| BC2001 | CRS200 | VP44 pump tester |
| BC2001PLC | CRS300(can add VP37 VP44 EUIEUP) | VP37 pump tester |
| BCS619 | eps200 | EUI EUP&Cambox |
| BCS815 | BCS200 | V3V4V5 pump tester |
| BCS300 | s60h | |
| BCS205 TEST EBNCH | PQ1000(only 1300USD per set) | Heui hydraulic test bench |
Taian Beacon Machine Manufacturing Co., Ltd. is the leading manufacture in diesel injection pump test bench
and turbocharger balancing machine in China ,our products already sold to more than 100 countries .
Our products including common rail injector test bench ,common rail injector tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,Denso ECD-V3 ,V4, V5 pump tester ,
PT cummins pump and injector tester ,common rail tools and spare part .
Welcome you to visit our factory and cooperate in the future.
>>>Welcome to contact with us
