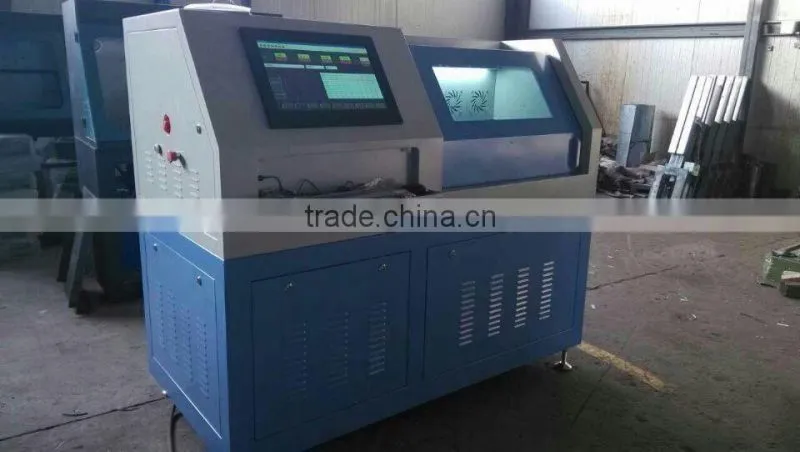

High quality CRS709C common rail diesel fuel injection pump calibration machine by manufacturer in china
1.Industrial computer control ,WINDOWS OS ,19inch LCD screen display
2.Equipped with original imported high - precision flow sensor and automatic turning over measuring cup to do the testing, these two systems can be standby equipment for each other, also ensure the accuracy and reliability of testing.
3. Industrial PC real-time control and display, WINDOWS OS.
4. Oil quantity sensor test oil quanyity, 19 inch LCD screen display
5. Adopted original BOSCH common rail pump to provide 0~2000 bar rail pressure.
6. Rail pressure can be tested in real time, closed-loop control, Stable pressure, overvoltage protection
7. Adjustable pulse width and frequency of injector’s driving signal
8. Injection times can be set free
9. Preset about 500kinds of injector data, easy to search and compare
10. Short circuit protection
11. Adopted super frequency converter to control rotation speed and insure the testing accuracy
12. Wide operation space, protective plexiglass cover to make sure your safe
>>>Function
1. This system support lots of injector brand, such as BOSCH, DENSO, DELPHI, SIMENS and so on,it can test CP1 CP2 CP3 HP0 HP3 HP4 pump.
2. Check the sealing of CRI (common rail injector)
3. Test oil quantity of CRI during pre-infection period
4. Test oil quantity of CRI under full load
5. Test oil quantity of CRI under idle speed
6. Test oil quantity of CRI under correction working condition
7. Test oil-returning quantity of CRI
8. Check the uniformity of CRI
9. Can test all kinds of CRI pumps
10. Provide open database, you can upgrade, modify the data.
11. Testing finish , report formed, you can save or print it.
>>>Technical Parameter
CRS-709c common rail injector test bench , fuel injection pump calibration machine | |
Voltage |
380V/50Hz or 220V/60Hz |
Power |
11KW 15KW 18.5KW |
Driving coupling |
ISO4008/10115 mm length 116mm |
Test oil tank capacity |
32Lt |
Certification |
CE/ISO9001 |
Operating conditions |
DTC Speed range 0-3500rpm |
Feeding pump |
Power:0.75KW Flow:6.3 L/min |
Heater |
2KW |
Measurement sensor |
Flow gauge high pressure pump 1-600 ml/min Rail high pressure gauge:0-1600bar |
Temperature range |
Measuring delta T 0-100 °C Measuring sensor Pt100 |
Test oil type |
DIN ISO 4113 |
Size |
190*114*150 cm |
Weight |
900KG |
Material |
steel |
--Characteristics
1,the machine can add to eui eup system and cam box with all adpater
2.it use original German flow sensor which is with high quality
3.the machine use the brand new and original bosch rail
4.the price of crs709d has included all the functions ,for example :test the piezo injector ,hpo pump test function ,DRV valve function and the pump delivery test function
5.the crs709d use new update common rail system which is similar with the original eps815 .
6.the machine use original CP1 pump .
>>> Photos

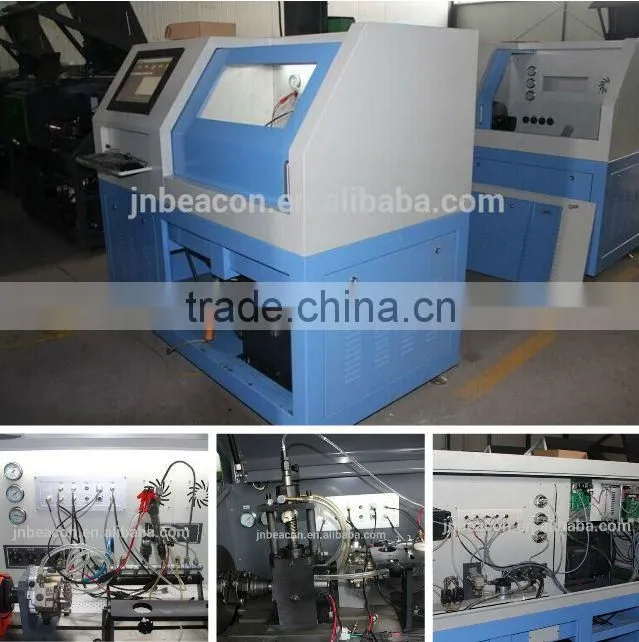

new future:1.insert computer 2. sliding cover, like the following photo
>>>we also have other model number test bench for injector and pump ,pls point the model name and then check details
| diesel fuel injection pump test bench | common rail injection pump test bench | tester and heui |
| 12PSB |
CRS708c(can add EUI/EUP&Cambox) CRS709c(can add EUI/EUP&Cambox |
CR1000 (200USD with piezo function) |
| BC3000 | BC-CR708(most competitive price) | CRS3 (can add piezo testing function ) |
| BC2001 | CRS200 | VP44 pump tester |
| BC2001PLC | CRS300(can add VP37 VP44 EUIEUP) | VP37 pump tester |
| BCS619 | eps200 | EUI EUP&Cambox |
| BCS815 | BCS200 | V3V4V5 pump tester |
| BCS300 | s60h | |
| BCS205 TEST EBNCH | PQ1000(only 1300USD per set) | Heui hydraulic test bench |
Taian Beacon Machine Manufacturing Co., Ltd. is the leading manufacture in diesel injection pump test bench and turbocharger balancing machine in China ,
our products already sold to more than 100 countries . Our products including common rail injector test bench ,common rail injector tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,Denso ECD-V3 ,V4, V5 pump tester ,PT cummins pump and injector tester ,
common rail tools and spare part .
Welcome you to visit our factory and cooperate in the future!!!
