10KV Medium Voltage Electrical Distribution Switch Board

10KV ABB MEDIUM VOLTAGE METAL-ENCLOSED DISTRIBUTION ELECTRICAL SWITCH BOARD

ABOUT SHOUGUANG JUNENG ELECTRIC CO., LTD

PRODUCT FEATURES

GENERAL

1.ABB UniGear ZS1 metal-clad removable metal-enclosed switchgear (hereinafter shortly as switchgear) is developed by shouguang juneng electric and ABB xiamen switch Co., Ltd, is a air-insulated armoured switch device.

2. switchgear is standardly equipped with VD4 vacuum circuit breaker, D type busbar, ABB MWD lightning arrester and EK6 earthing switch.

3. it applies to the complete indoor power distribution system for three-phase 50HZ 12kV and below.

3.the cabinet is composed of four independent compartment, busbar cubicle,circuit breaker cubicle, cable terminal cubicle and low voltage cubicle.

4.safe, flexible, economical. easy to assemble and maintance.

SERVICE CONDITION

1.Altitude: 1000m

2.Max. relative humidity: 95% (at 25 ℃ )

3.Max. ambient temperature:  +45℃

4.Min.  ambient temperature:  -15℃

5.Max. daily difference in temperature:  25℃

6. indoor installation

7.earthquake: horizontal accelerated speed 0.5g

                            vertical accelerated speed 0.1g

PAYMENT & DELIVERY

1.payment terms: T/T with 30% deposit  L/C

2.packing detail: wooden case or at the requirement of customers

3.delivery time: usually within 30 days after the deposit

WHAT WE CAN DO BETTER

• Quality Assurance--From the very beginning, JUNENG ensures quality in every step to achieve the best quality.
• Experience Sharing--With over 10 years’ experience in power industry, JUNENG brings you an optimized solution.
• Quick Response--In response to your needs without delay, JUNENG knows the value of your time.

MORE DETAILS, PLS CONTACT US.

Medium Voltage Switchgear Display

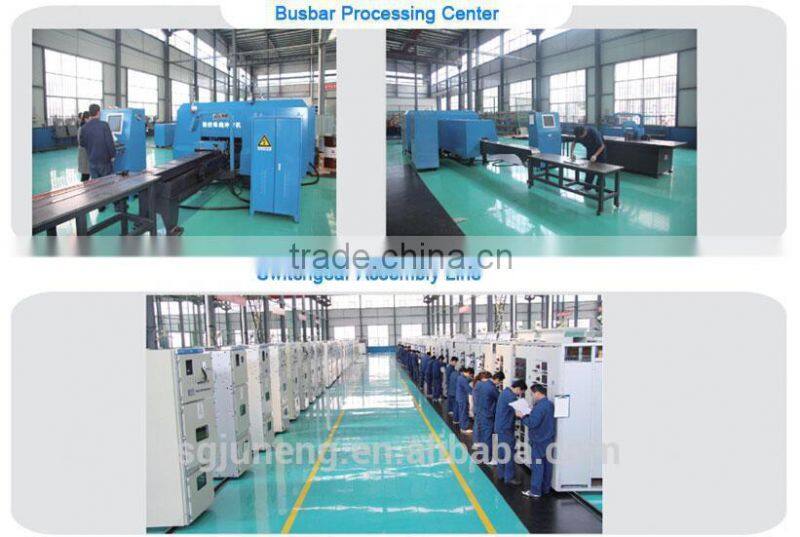

Workshop & Equipment

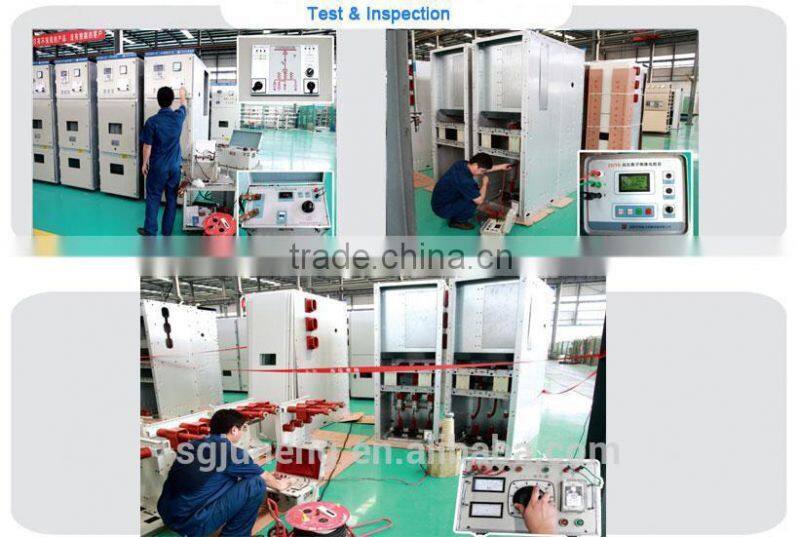

Test & inspection

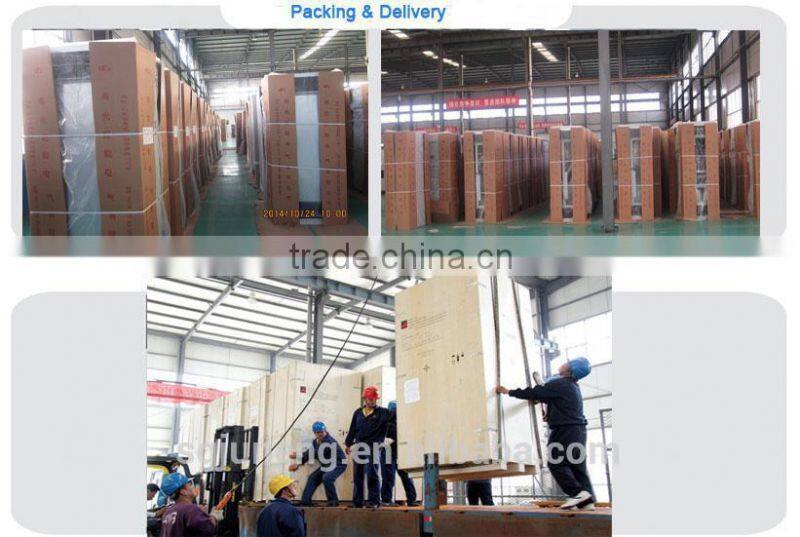

Packing & delivery

Certificate

WE ARE AUTHORIZED CLOSE COORPERATION PARTNERSHIP CERTIFICATE TO PRODUCE SWITCHGEAR ASSEMBLIES BY ABB.

WELCOME INQUIRY.
