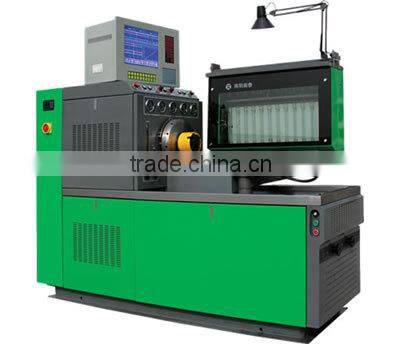

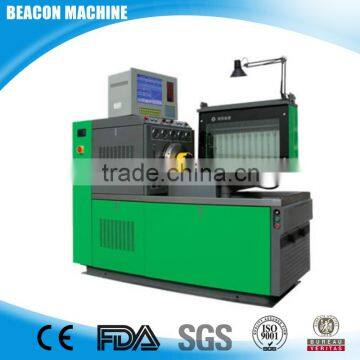

Help Center2015 High Quality 12PSBG-7F Diesel Injection Pump Test Bench for Garage Service With CE$ISO
Related Products
-
Taian Beacon Machine MINI12PSB Diesel Fuel Injector Test Equipment for Small BusinessUS$ 2,200 - 2,800MOQ: 1 Set -
Top Selling Products High Pressure MINI12PSB Bosch Diesel Fuel Injection Pump Calibration Test MachineNegotiableMOQ: 1 Set
-
12PSB Bosch Diesel Fuel Injection Pump Calibration Machine From ManufacturerUS$ 2,500 - 3,000MOQ: 1 Set
-
2015 BEACON BC3000 Bosch Diesel Fuel Injection Pump Test Bench Bosch UsedUS$ 3,500 - 4,500MOQ: 1 Set
-
BEACON BC3000 Bosch Diesel Fuel Injection Pump Starter and Alternator Test Bench With Best CertificateUS$ 3,500 - 4,500MOQ: 1 Set

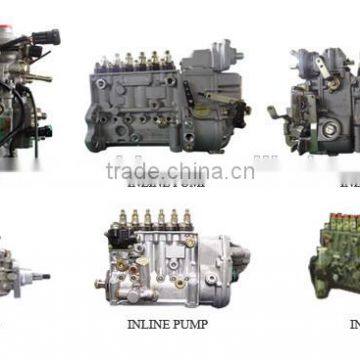

Application for Injection pump test bench
Technical parameter:
| 1. Adjustable rotation speed range | 0~4000RPM |
| 2. Double series of graduates: |
45/150CC |
| 3. Volume of oil tank: | 100L |
| 4. Temperature stabilization | 40±2 |
| 5. Test oil filtering unit | 5μ |
| 6. DC. Supply | 12/24V |
| 7. Feed pressure: | 0~0.4MPa (low), 0~4MPa (high) |
| 8. Air pressure (MPa): | -0.03~0.3 |
| 9. Rack travel range: | 0~25mm |
| 10. 3-phase power supply: | 380V/50Hz or 220V,60Hz,3phase |
| 11. Flywheel inertia’s moment: | 0.8kg·m2 |
| 12. Center height | 125mm |
| 13. Output power: | 7.5kw~15kw |
| 14. Overall dimensions | 200X90*170CM |
| 15. Net weight (kg) | 1000 |
| 16. Average trouble-tree working time of test stand: | ≥2500h. |
Function for Injection pump test bench
1.Test and debugging about oil supply amount and uniformity each cylinder of injection pump.
2.Check the oil supply spacing of each cylinder and oil supply starting point in the static state.
3.Check and adjust the performance of mechanical speed controller.
4.The sealing inspection of pump body.
5.The test of solenoid valve of distribution pump.
6.The test of return oil of distribution pump.
7.Measure the interior pressure of distribution pump.
8.Check the vacuum capacity regulators.
9.Check the pressure of compensator.
10Checking the fuel supply pump.
11.Measure the advance timer device.
12.User can change the temperature.
Option(On Request):
1.Oil lubricate
2.Measurement of rack travel
3.Printer
Characteristics:

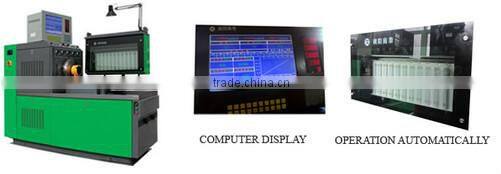

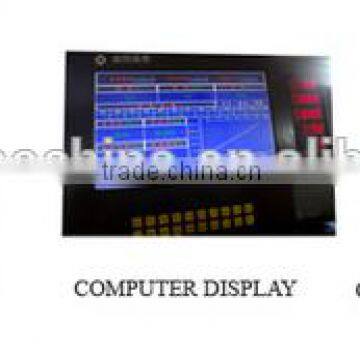

1.Advanced frequency conversion technology and industrialized computer control technology,with rotation speed,temperature,count numeral control, Industrial LCD double control display system.
2. English and Chinese menu.
3. Two sides operation manually.
4.Equipped with the relevant attachments for measuring the domestic and international various kinds of high pressure oil pumps
5.Measuring the Rack Bar journey exactly.
6.Debug speed curve of injecting oil pump.
7.Automatic oil unloading device
8.Print and keep debugging data of pump.
9.Large inertia flywheel--- steady drive and good balance.
Accessories
Taian Beacon Machine Manufacturing Co., Ltd. is the leading manufacture in diesel injection pump test bench and turbocharger balancing machine in China ,
our products already sold to more than 100 countries . Our products including common rail injector test bench ,common rail injector tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,Denso ECD-V3 ,V4, V5 pump tester ,PT cummins pump and injector tester ,
common rail tools and spare part .
Welcome you to visit our factory and cooperate in the future!!!
--Welcome to contact with us !!!
