GGD AC Fixed Low Voltage Switchgear
1.MODEL
2.Service Condition & Standard
- Ambient temperature: -5°C~+40°C. The average temperature not higher than +35°C in 24 hours
- Altitude: not exceed 2000m.
Atmopheric condition: clear air. The ralative humidity is no more than 50% at the highest temperature 40 °c while higher humidity is permitted at lower temperature, such as 90% at +20 °c. Condensation maybe occure occasional due to temperature changes.
- The inclination with the vertical plane is less than 5% when installed.
- Ambient environment: the installation site should be free of fire, explosive danger, serious pollution, chemical corrosion of severe vibration.
- Special condition subject to customers
3.Description
1. GGD low voltage distribution cabinet is used for power plants, substations, factories and mines, power users exchange 50Hz, rated working voltage 380V, rated current up to 3150A of the distribution system as a power, lighting and power distribution equipment, power conversion, distribution and control.
2. GGD low-voltage distribution cabinet is a new low-voltage distribution cabinet according to the requirements of the competent superiors of the Department of Energy and the majority of electricity users and the design department, in a safe.economic, reasonable, reliable design principles. The product has a high segmentation, dynamic and thermal stability, electrical program is flexible, convenient combination series, ractical, novel structure, high protection class. Can be used as the replacement of low voltage switchgear products.
3. Protection grade is IP30. IP20-IP40 could be optional acc to the requirements of service condition.
4.Good appearance. easy assembly and disassembly.

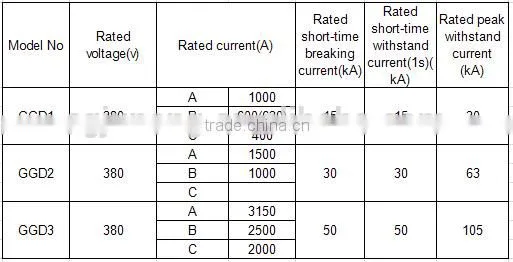

4.Main technical parameter
5.Overall dimension (MM)
| Model | H | W | D |
| GGD1 GGD2 | 2200 | 600/800/1000 | 600 |
| GGD3 | 2200 | 800/1000/1200 | 600/800 |
6. Cabinet sketch map
7.Documents and Attachments enclosed:
1 certificate of approval;
2 packing list;
3 Operating Instruction;
4 Delivery Inspection Report;
5 Related electrical drawings;
6 Cupboard door keys, operating handle and spare parts in the contract;
7 The main components of installation instructions.
8.Ordering Instructions:
When ordering,the following informer shall be provided:
1 Main circuit system diagram;
2 Auxiliary circuit electrical schematic diagram, auxiliary circuit voltage;
3 Components listing (including components model, name, specification, quantity);
4 Switch equipment layout;
5 The color of cabinet (If there is no requirement by the company standard supply);
6 The required spare parts list
Other special requirements shall be marked while ordering.
1.payment terms: T/T with 30% deposit or L/C
2.packing detail: wooden case or at the requirement of customers
3.delivery time: usually within 30 days after the deposit
4.delivery by sea, by train, by air and by express delivery
terms: FOB CIF EXW
- Quality Assurance--From the very beginning, JUNENG ensures quality in every step to achieve the best quality.
- Experience Sharing--With over 10 years’ experience in power industry, JUNENG brings you an optimized solution.
- Quick Response--In response to your needs without delay, JUNENG knows the value of your time.
Shouguang Juneng Electric Co., Ltd is located in Shouguang City Shandong Province, China.
Main Products:
high.low voltaeg switchgear assemblies, switchgear cabinet, intelligent prefabricated substation, 35kv and below oil immersed and dry type transformer, amorphous alloy transformer, special transformer, power lighting distribution box, ring main unit, cable branch box,vacuum circuit breaker etc.
Main Market:
As long-term suppliers of state grid, provincial power grid as Anhui, Tianjin, Shanxi, Shananxi etc and CNPC
CNOOC, the products of Juneng have been sold nationwide and exported to Africa, Southeast Asia and some other foreign countries and regions
Main Switchgear Display
Workshop & Equipment
Test & inspection
Packing & delivery
Certificate
1. What's the payment terms?
T/T, L/C or customized.
2. What's the delivery time?
Usually within 30 working days after receipt of the deposit.
3. what kind of certificates can you offer?
ISO9001 ISO14001 OHASA18001 IEC60439 CCC type test report .
4. How to contact you?
Pls refer to the following,
