Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W With 8 Years Warranty

Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W With 8 Years Warranty thumbnail-1
Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W With 8 Years Warranty thumbnail-2
Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W With 8 Years Warranty thumbnail-3
Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W With 8 Years Warranty thumbnail-4
Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W With 8 Years Warranty thumbnail-5
Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W With 8 Years Warranty thumbnail-6
Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W With 8 Years Warranty photo-1
Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W With 8 Years Warranty photo-2
Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W With 8 Years Warranty photo-3
Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W With 8 Years Warranty photo-4
Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W With 8 Years Warranty photo-5
Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W With 8 Years Warranty photo-6
US$ 268 - 278 MOQ: 1 Unit
Key Specifications
Get Latest Price
LED Light Source:
SMD3030
Input Voltage(V):
AC100-240V
Lamp Power(W):
200
Contact Supplier Request Quote Chat Now
Fuzhou AOK LED Light Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD3030
Input Voltage(V) AC100-240V
Lamp Power(W) 200
Lamp Luminous Flux(lm) 22000
Lamp Luminous Efficiency(lm/w) 115
Color Temperature(CCT) Other, 3000/4000/5000/5700/6700k
Working Temperature(℃) -40, 55
Working Lifetime(Hour) 100000
Lamp Body Material Aluminum Alloy
IP Rating IP65
Certification C-tick, CCC, CE, EMC, GS, LVD, SAA, SASO, UL
Place of Origin Guangdong, China
Brand Name AOK LED Flood Light 200W
Model Number AOK-200Wi

Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W with 8 years Warranty

Main Features

1. Wide Power range: 40W to 400W

2. Input Voltage: 90-305VAC, 277-528VAC, DC12V/24V

3. Long Lifespan, TM21 reported L70>62000hours

4. SMD3030 LumiLEDs, 110-120lm/w

5. Meanwell driver, IP65 and IP67 optional

6. Warranty: 8 years

7. UL cUL DLC, TUV GS CE RoHS, CB, SAA, TM21, IK10 listed

8. Short production time: 5-7 working days



To View More AOK LED Lights, pls click the following



Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W with 8 years Warranty

        >> " href="http://www.china.cn/product-detail/UL-DLC-Approval-IP66-Factory-LED_60345395703.html?spm=a2700.7724838.35.1.7Ppv75" target="_blank">View More >>>>> " href="http://www.china.cn/product-detail/UL-DLC-Approval-IP66-Factory-LED_60345395703.html?spm=a2700.7724838.35.1.7Ppv75" target="_blank">                                >>" href="http://www.china.cn/product-detail/Facotry-IP66-High-Luminous-DLC-Motion_60340228932.html?spm=a2700.7724838.30.19.7d4GIj" target="_blank">View More >>>                                 >>" href="http://www.china.cn/product-detail/DLC-UL-Listed-Factory-Customized-Modular_60355700387.html?spm=a2700.7724838.30.308.Kit0Jk" target="_blank">View More >>>                                >> " href="http://www.china.cn/product-detail/IP67-Waterproof-LM79-UL-DLC-SAA_60347749238.html?spm=a2700.7724838.35.1.c1CbEP" target="_blank">View More >>>>> " href="http://www.china.cn/product-detail/IP67-Waterproof-LM79-UL-DLC-SAA_60347749238.html?spm=a2700.7724838.35.1.c1CbEP" target="_blank">

Product Description
Parameters of AOK LED Flood Lights
Item No.

Power

(W)

 LED Qty

Module

Qty

Luminous

Efficacy

Luminous

Flux

CRI

(Ra>)

Junction Temp

(Ta=40°C)

Max Current

(constant)

(A)
AOK-40Wi 40 14 1 115 4600 80 92.4 0.45
AOK-80Wi 80 28 2 115 9200 80 92.4 0.9
AOK-120Wi 120 42 3 115 13800 80 92.4 1.35
AOK-160Wi 160 56 4 115 18400 80 92.4 1.8
AOK-200Wi 200 70 5 115 23000 80 92.4 2.25
AOK-240Wi 240 84 6 115 27600 80 92.4 2.66
AOK-280Wi 280 98 7 115 32200 80 92.4 3.1
AOK-320Wi 320 112 8 115 36800 80 92.4 3.55
AOK-360Wi 360 126 9 115 41400 80 92.4 4
AOK-400Wi 400 140 10 115 46000 80 92.4 4.45





Different Light Distributions of AOK Outdoor LED Flood Light



For Different application requirement, AOK customised different types of beam angles for customers,

at the moment we have 60°, 90*100°, 120° beam angle available.



Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W with 8 years Warranty

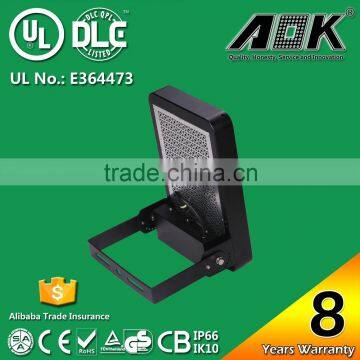

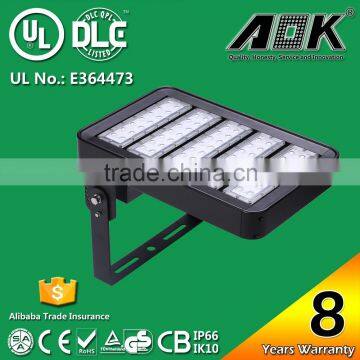

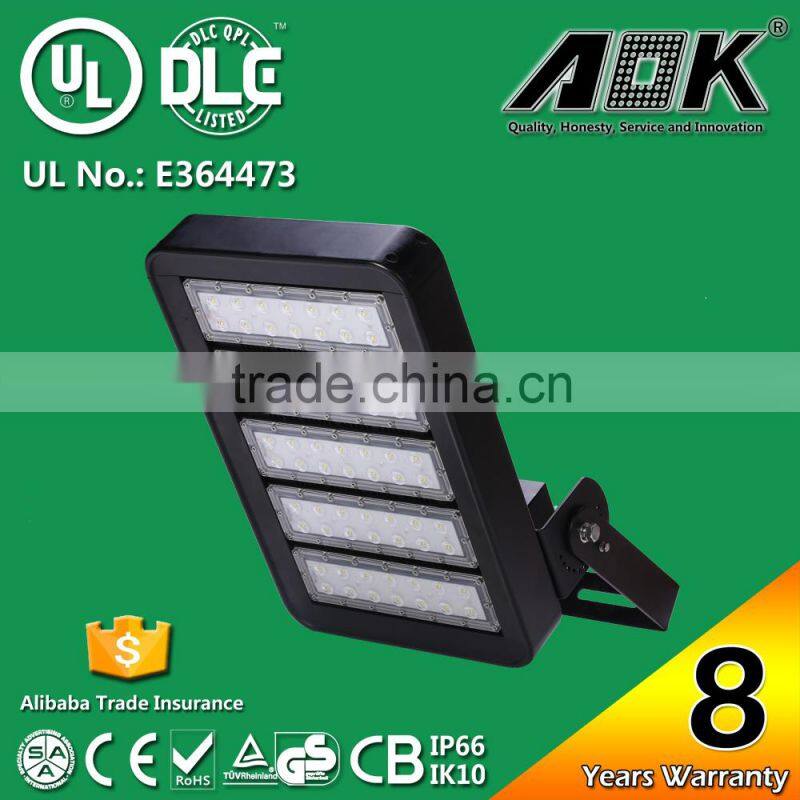

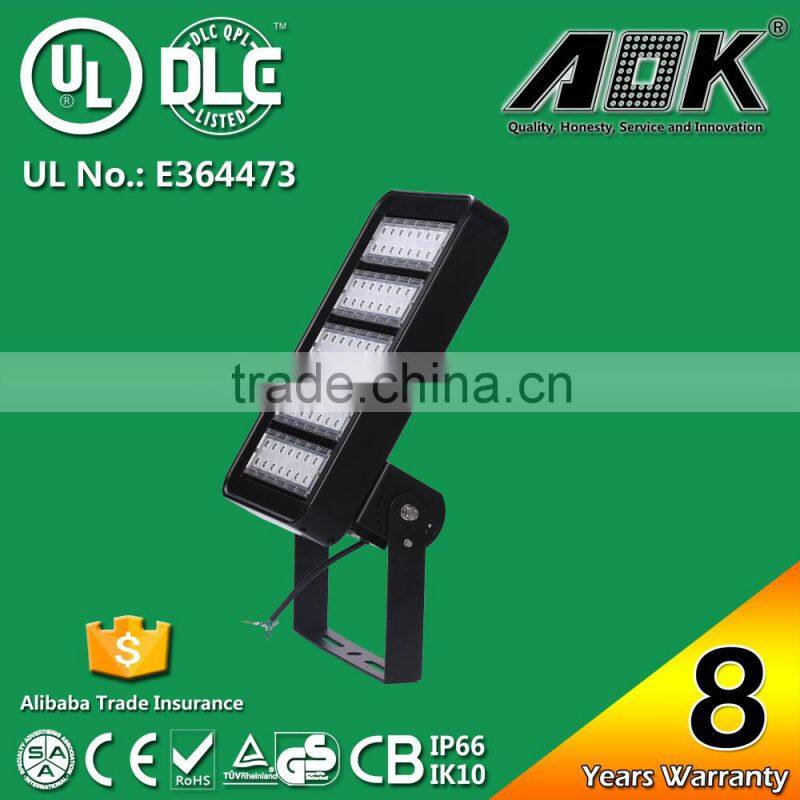

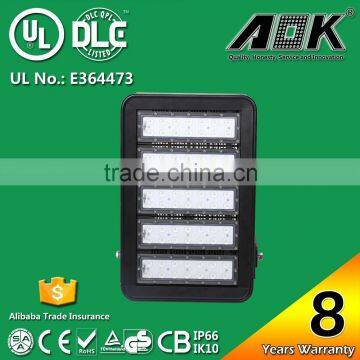

Detailed Image of 200W  AOK Outdoor LED Flood Light



Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W with 8 years Warranty



Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W with 8 years Warranty



Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W with 8 years Warranty





Certificates of AOK LED Flood Light 200W
1. UL Certificate No.: E364473
2. TUV GS-Mark Approval, Certificate No. S 50277285
3. CB TEST CERTIFICATE, Ref. Certif. No.: DE 2-017520
4. SAA Certificate No.: TUV01877E
5.  For DLC, please check in website: /QPL#results, search by keyword "AOK" for more details of interested items.



Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W with 8 years Warranty

Application&Projects
Application of AOK Outdoor LED Flood Light



1. Warehouse Lighting, Factory Lighting, Industrial Lighting

2. Garage Lighting, Workshop Lighting

3. Outdoor Area Lighting, High Mast Lighting

4. Supermarket Lighting, Store Lighting

5. Tunnel Lighting, Bridge Lighting

6. Gas Station Lighting



Projects finished with AOK Outdoor LED Flood Light



Warehouse Project in Canada - Using 280W LED High Bay Lights, 5000K

Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W with 8 years Warranty



Logistic Warehouse of DEMAG Germany - using 200W LED High bay lights 5700K

Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W with 8 years Warranty



Outdoor Tennis Court Project in the US - Using 6pcs 280W LED Lights 5700K

Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W with 8 years Warranty



Outdoor Lighting Applications as flood light, mobile tower lighting and High Mast Lighting

Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W with 8 years Warranty

Packaging & Shipping

1. Standard export Carton Box, 1unit/ carton

2. Pallet packing for bulk orders, 30 to 40 units/ pallet

3. Container loading for large orders.

Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W with 8 years Warranty



Quality Control

AOK has very strict Quality Control System, from checking and evaluation of incoming materials to

the delivery of products, each item will be checked and tested for several times.



LED Light QuaityTesting Equipments



For every piece of AOK LED High Bay Light, they will be tested in many procedures.

Picture No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under

extreme temperature environment.

Picture No. 2: Anti-Corrosion Testing, to make sure the high bay lights are working well even under

corrosive environment.

Picture No. 3: Drop Testing, to make sure the lamps remain good even dropped from high places

Picture No. 4: Anti-Vibration Testing, to make sure the packages are strong and good enough for delivery.

Picture No. 5~6: Dark Room for testing IES files and other Photometric datas.



Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W with 8 years Warranty



Quality Control - Aging department



For every piece of AOK LED Lights, they will be aged for at least 72 hours before delivery to make sure of

their long term and stable performances within lifetime.



Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W with 8 years Warranty

Company Information
Introduction of AOK LED Light Company Limited



Strict Quality Control System

ISO9001:2008 Quality control system

Complete & strict quality control system from incoming material quality control, procession quality control to ready prodcut quality control.

High Quality Manufacturer authorized by UL organization.

Best Partner of SMD3030 Lumileds from 2013~2014, 2014~2015

More Company Introduction

AOK is a leading manufacturer of Outdoor and Industrial LED lighting products in China.

Main products: LED High Bay Light, LED Flood Light, LED Tunnel Light, LED Gas Station Canopy Light, LED Street Light etc with 8 years warranty.



Production Center of AOK



Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W with 8 years Warranty



AOK service



1. Before and after sales in time service 7/24.

2. Professional Lighting solution suggestions, dialux simulation available.

3. Payment terms: Paypal, TT, LC, DP etc.

4. Shipment terms: FOB, CIF, CFR

5. Short Lead time: 5-7 working days for sample order and orders less than 100units.

6. NO MOQ required, sample testing welcome.



Trade Shows
AOK at Lighting fairs

To know market trend and new products better, AOK is alway active in different kinds of Lighting exhibitions.

1. AOK attends HKTDC Lighting Fairs Spring Edition April 9th ~ 12th.

2. AOK attends HKTDC Lighting Fairs Autumn Edition Oct 27th ~31st. (AOK Booth HALL3-3CON-095 )

3. AOK attended Las Vegas Lighting fair in May 2014

4. AOK attended New York Lighting Fair in May 2015

5. AOK attends Guangzhou Lighting fair in every June 9th ~12th



Outdoor 120lm/w DLC UL TUV Listed LED Flood Light 200W with 8 years Warranty

After sales contact information



Company Name: AOK LED Light Company Limited



Add: 1 Building, St. George's Technology and Industrial Park, Shajing Street, Shenzhen City, China.

Contact: Shadow Lan

Skype online: aokled27

Email: sales27(at)
