JUNENG LOW VOLTAGE SWITCH CABINET GCS
ABOUT SHOUGUANG JUNENG ELECTRIC CO., LTD
GCS PRODUCT FEATURES
Service Condition
1. Ambient temperature: -5'C~+40'C. Average temperature in 24 hours <= 35'C.
2. Altitude: less than2000m.
3. Air humidity at 40'C <=50%. Higher humidity at lower temperature is permitted. Occasional condensation due to temperature variation should be considered.
4. No excessive vibration.
5. No corrosion to electric elements.
Special condition subject to customers.
Main circuit rated voltage (v) |
AC380(400)(660) |
|
Auxiliary circuit rated voltage (v) |
AC220/380(400),DC110/220 |
|
Rated frequency (Hz) |
50(60) |
|
Rated insulation voltage(v) |
660(1000) |
|
Rated current(A) |
Horizontal busbar |
up to 4000 |
|
Vertical busbar(MCC) |
1000 |
Busbar rated short-time withstand current(kA/1s) |
50(80) |
|
Busbar rated peak withstand current(kA/0.1s) |
105(176) |
|
Power frequency test voltage (v /1min) |
Main circuit:2000 |
|
|
Auxiliary circuit:2000 |
|
Busbar |
three-phase four-line type |
A/B/C/PEN |
|
three-phase five-line type |
A/B/C/PEN/N |
Degree of protection |
IP30 IP40 |
|
Documents and Attachments enclosed:
1 certificate of approval;
2 packing list;
3 Operating Instruction;
4 Delivery Inspection Report;
5 Related electrical drawings;
6 Cupboard door keys, operating handle and spare parts in the contract;
7 The main components of installation instructions.
Ordering Instructions:
When ordering,the following informer shall be provided:
1 Main circuit system diagram;
2 Auxiliary circuit electrical schematic diagram, auxiliary circuit voltage;
3 Components listing (including components model, name, specification, quantity);
4 Switch equipment layout;
5 The color of cabinet (If there is no requirement by the company standard supply);
6 The required spare parts list
Other special requirements shall be marked while ordering.
WHAT WE CAN DO BETTER
- Quality Assurance--From the very beginning, JUNENG ensures quality in every step to achieve the best quality.
- Experience Sharing--With over 10 years’ experience in power industry, JUNENG brings you an optimized solution.
- Quick Response--In response to your needs without delay, JUNENG knows the value of your time.

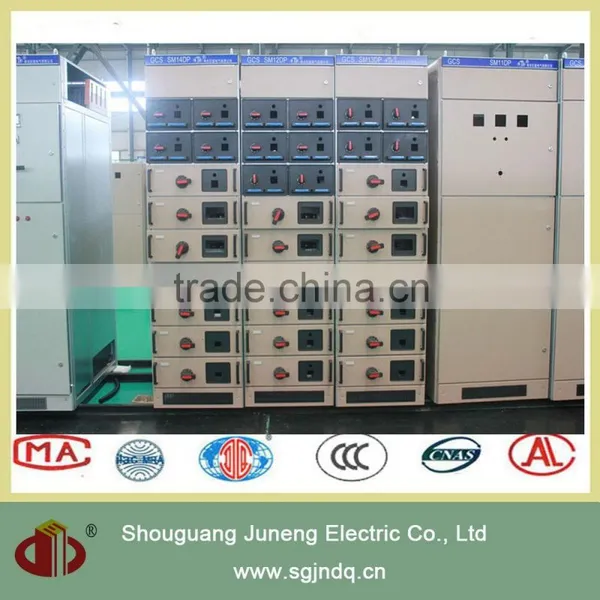

Low Voltage Switchgear Display
Workshop & Equipment
Certificate
Any inquiry or question, pls contact me.
