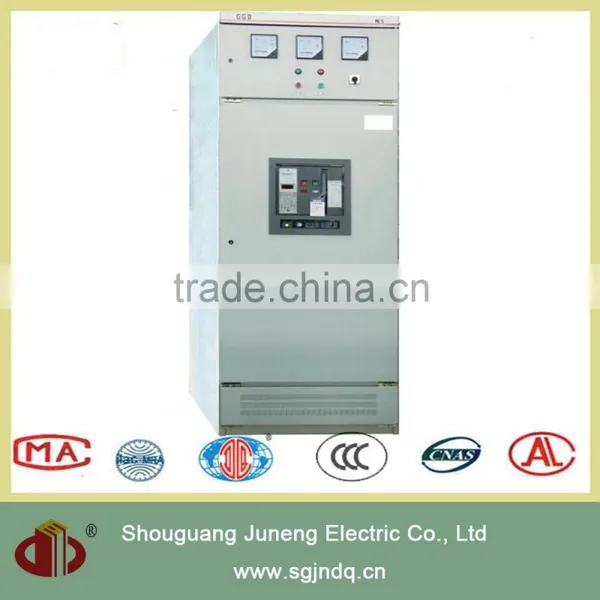

FIXED LOW VOLTAGE SWITCH PANEL SWITCH GEAR
ABOUT SHOUGUANG JUNENG ELECTRIC CO., LTD
PRODUCT FEATURES
Model
Service Condition
- Ambient temperature: -5°C~+40°C. The average temperature not higher than +35°C in 24 hours
- Altitude: not exceed 2000m.
- Relative humidity: not over 50% at the temperature of 40°C, when the temperature is lower, the relative humidity will be higher.
- Seismic intensity: not beyond Ms9.
- Ambient environment: the installation site should be free of fire, explosive danger, serious pollution, chemical corrosion of severe vibration.
- Special condition subject to customers.
Discription
1. GGD low voltage distribution cabinet is used for power plants, substations, factories and mines, power users exchange 50Hz, rated working voltage 380V, rated current up to 3150A of the distribution system as a power, lighting and power distribution equipment, power conversion, distribution and control.
2. GGD low-voltage distribution cabinet is a new low-voltage distribution cabinet according to the requirements of the competent superiors of the Department of Energy and the majority of electricity users and the design department, in a safe.economic, reasonable, reliable design principles. The product has a high segmentation, dynamic and thermal stability, electrical program is flexible, convenient combination series, ractical, novel structure, high protection class. Can be used as the replacement of low voltage switchgear products.
3. Protection grade is IP30. IP20-IP40 could be optional acc to the requirements of service condition.
4.Good appearance. easy assembly and disassembly.
5. Main technical parameter
Model No |
Rated voltage(v) |
Rated current(A) |
Rated short-time breaking current(kA) |
Rated short-time withstand current(1s)(kA) |
Rated peak withstand current (kA) |
|
GGD1 |
380 |
A |
1000 |
15 |
15 |
30 |
B |
600(630) |
|||||
C |
400 |
|||||
GGD2 |
380 |
A |
1500 |
30 |
30 |
63 |
B |
1000 |
|||||
C |
|
|||||
GGD3 |
380 |
A |
3150 |
50 |
50 |
105 |
B |
2500 |
|||||
C |
2000 |
|||||
6. Overall dimension (MM)
| Model | H | W | D |
| GGD1 GGD2 | 2200 | 600/800/1000 | 600 |
| GGD3 | 2200 | 800/1000/1200 | 600/800 |
7. Cabinet sketch map
8. Payment & Packing
1).payment terms: T/T or L/C
2).packing detail:
Exporting Standard Packing: plastic bag + kraft paper + carton + plywood pallets; Wrap bags+ carton + plywood pallets or according to your personalized requirements.
3).delivery time: usually within 30 days after the deposit
WHAT WE CAN DO BETTER
- Quality Assurance--From the very beginning, JUNENG ensures quality in every step to achieve the best quality.
- Experience Sharing--With over 10 years’ experience in power industry, JUNENG brings you an optimized solution.
- Quick Response--In response to your needs without delay, JUNENG knows the value of your time.

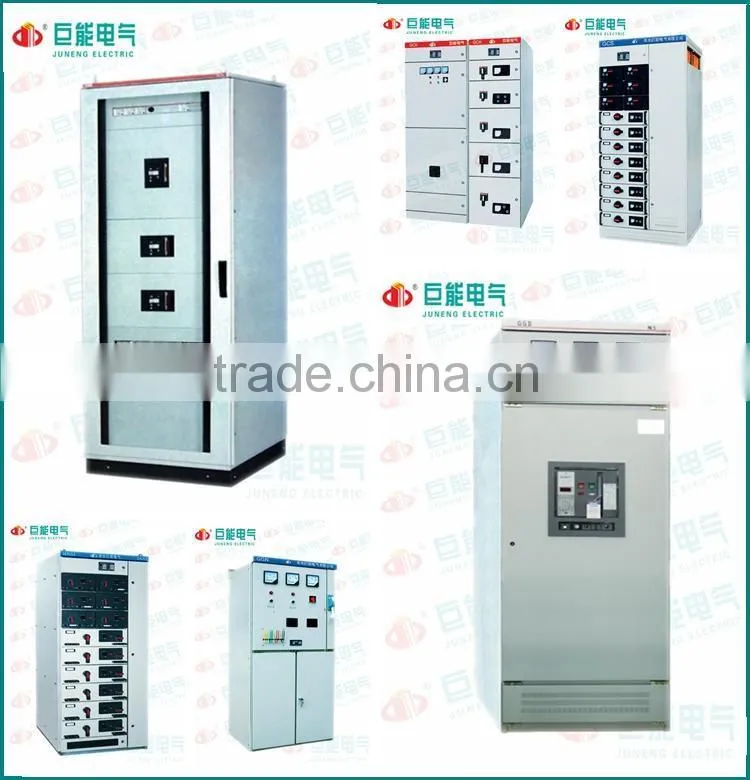

Low Voltage Switchgear Display

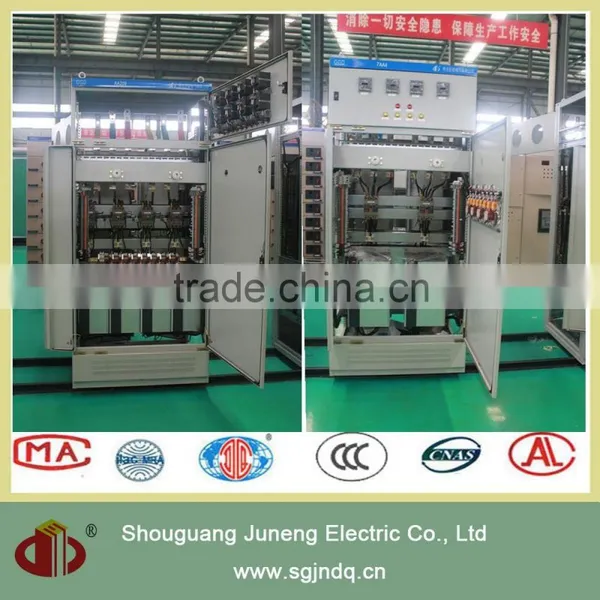

Workshop & Equipment
certificate
Any inquiry or question, pls contact me
