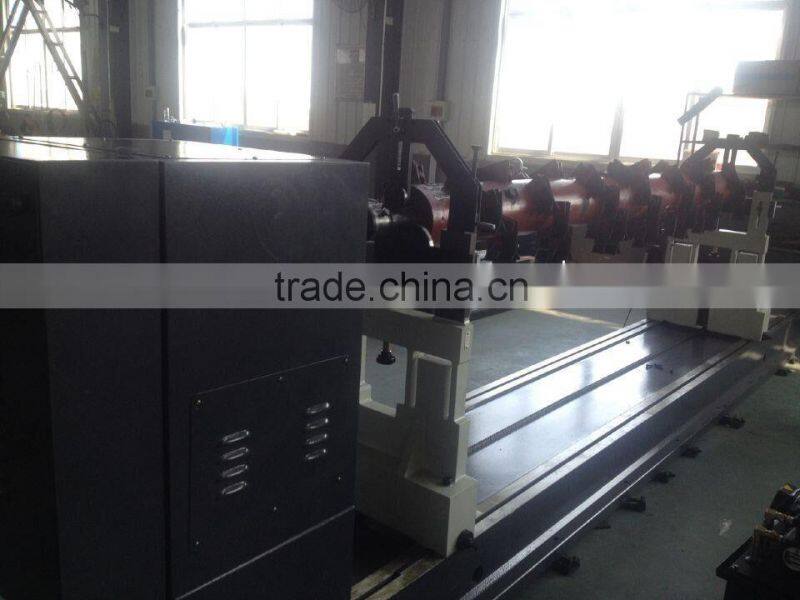

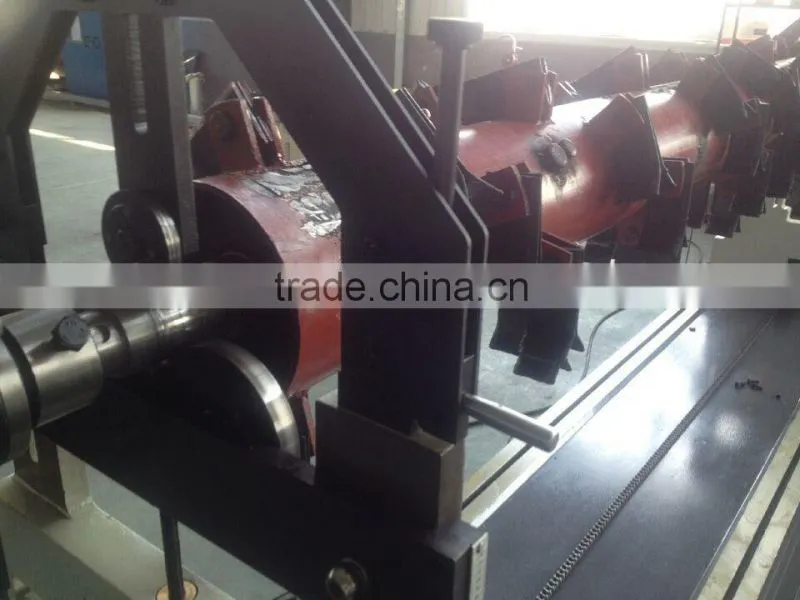

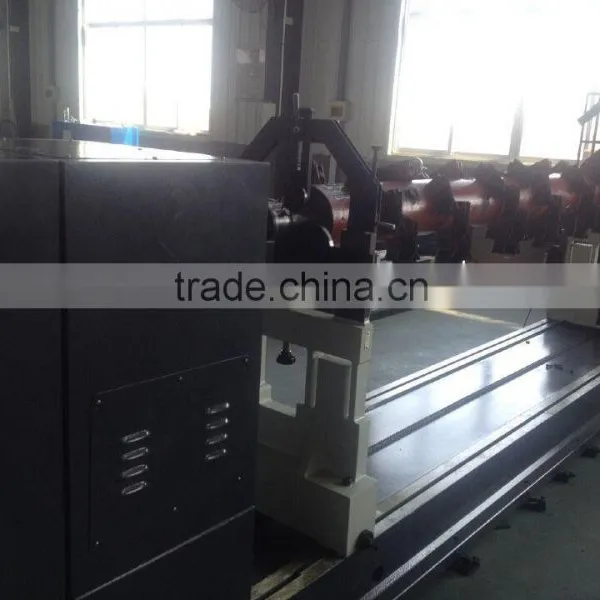

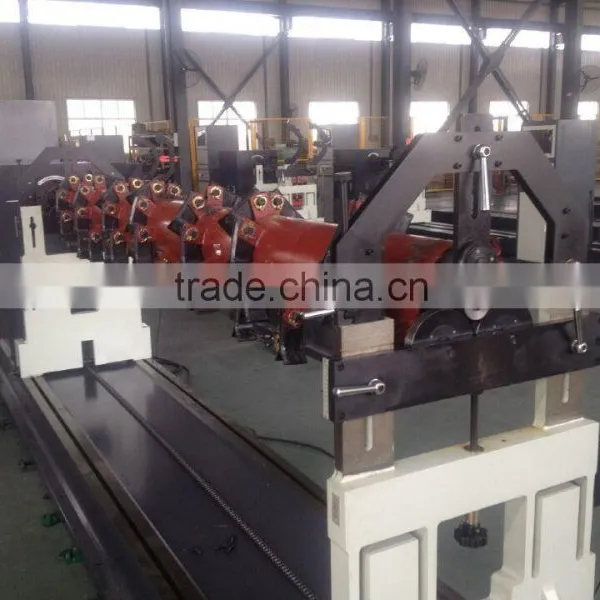

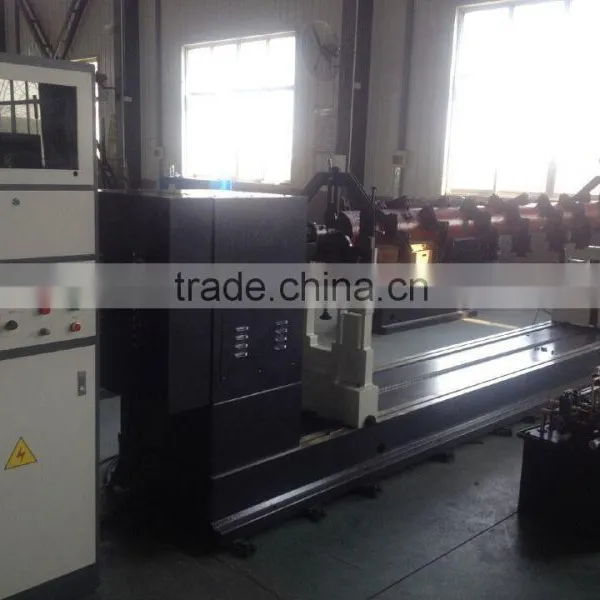

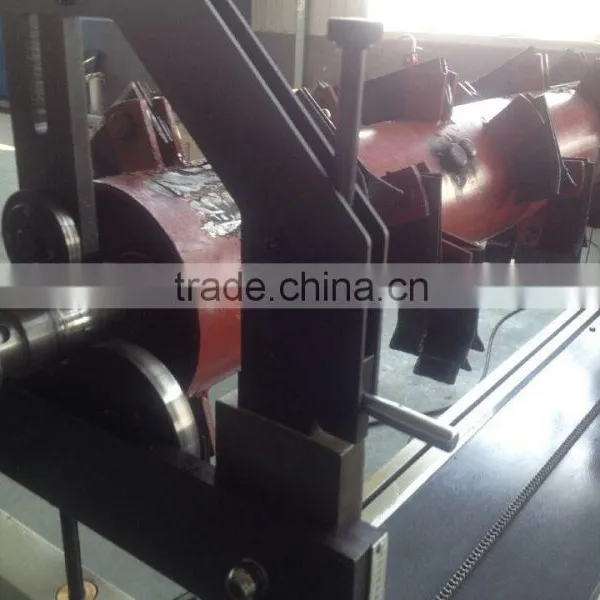

2016 The lowest price of HBW-K1 universal joint drive balancing machine
Using:
Widely used in electric motors, blower, diesel engine, agricultural machinery, textile machinery, and other industries, can be in the single side, double side and multiple correction plane balance measurement,
Mainly used for balancing rotating workpieces,such as medium and large-sized motor rotors balancing, blowers balancing,
pump impellers balancing, drying cylinders balancing, centrifugal impeller balancing and rollers balancing etc..
Features and advantages :
1.The industrial computer employs Windows XP operating system, steady and easy to operate Windows embedded operating system , Large-screen LCD ,9000 kinds rotor
data storage , Powerful statistical analysis features , Flexible positioning , USB Data Export.
2 Advanced electrical measuring system and friendly man-machine interface . Introducing excellent quality sensors with high sensitivity, as small as 0.001g
3.Real-time displaying amount and angle of unbalance and rotation speed
4.Efficient
5.Large data storage, can store more than 100 sets of balancing results
6. Driving by universal joint or gear box universal coupling offers several rotational speeds and stepless speed control , large . Applicable to rotors which can't be driven by belt or need large power.
Driven by universal coupling,transmit the power steadily.
7. 1Special designed brackets can effectively transmit mechanical force.
8. Three measuring systems are optional,Digital/LCD Display of measured value and angle,direct and easy
.High Precision: multi-Calibration coefficient combination,automatically adjust the system sensitivity,no shift-skip,dual wave filtration by both hard and soft-ware,high speed data compression,faster,more stable and accurate measurement,DIY unit:Balance untidisplayed,angle unit and precision displayed
can be defined by user.A real-time unti conversion is available to meet different requirement.
9. HBW-K1 series Universal Joint Drive Balancing Machine easy maintenance, the characteristics of software with ordinary workpiece and standard rotor two calibration function,
10,.overcoming the other hard supporting balance machine measurement system to users to calibration equipment defects,
Technical data :
Model |
Mass scope of workpiece kg kg |
Biggest diameter workpiece mm |
Two span of supports mm |
Trunnion support mm |
Balancing speed r/min |
Min achievable residual unbalance amount g.mm/kg |
Unbalance reduction ration % |
Motor power kw |
mode of speed regulation |
HBW-K1 |
20-1000 |
Φ1500 |
70-2300 |
Φ20-120 (Φ120-240for choice) |
300-1500 stepless speed regulation |
≤1 |
≥90 |
7.5 |
Variable frequency speed regulation |
