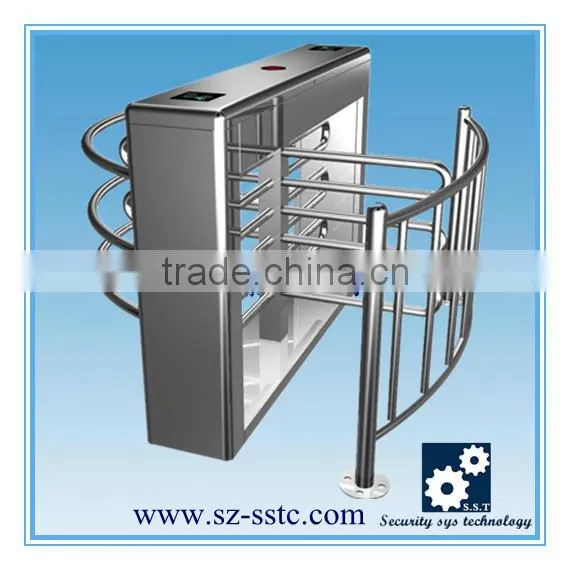

Wooden package security electric half height stadium turnstile
1)Voltage : AC220V,50HZ
2)Control circuit : DC24V
3)Power consumption : 100W
4)Signal output: relay or 12v pulse
5)Material : 304/202 stainless steel
6)S/S thickness : 1.0~1.5mm
7)Surrounding Temp : -25~+70
8)Hydraulic damper : adjustable
9)Net weight : 700kg
10)Warranty:1year
1.Description:
The half-high turnstile is designed to provide unsupervised access control for office or building. The impenetrable construction eliminates any unauthorized access to restricted areas. To gain authorized passage through the turnstile, the user must present a valid card for the access control system. Upon presentation of the valid card. the turnstile will unlock and allow the user to pass through the direction requested. The turnstile can also work with push button, fingerprint and face recognition access control system.
the half-high turnstile is designed to combine the functions of two single rotor turnstiles into one turnstile. The intermeshing of the left and right-hand rotors allow reduction in overall width from 2.8m to 2.2m with no reduction of passage space. Two rotors allow four possible control points, two entries and two exits. Each rotor can be controlled in one or two directions. The complete stainless steel construction is suited for interior or exterior application.
2.Technical Parameters
1 |
Power |
AC220C±10V, 50HZ |
2 |
Operating Temperature |
-45°C---60°C |
3 |
Relative Humidity |
≤95%, No Condensation |
4 |
Communication Distance |
≤1200m |
5 |
Passing Speed |
40 Persons/min(IC Card) |
6 |
Motor |
DC Brushless Motor, 0.5NM/24V(Fully Automatic) |
7 |
Input Connection |
+12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma |
8 |
Communication Connection |
RS485 Communication Interface |
9 |
Material |
SUS304 or Carbon Steel Powder Coating |
10 |
Protection grade |
IP54 |
11 |
Colour |
SSB(US32D)- Stainless Steel Brushed / Powder Coating/You can give your favor Colour |
12 |
Operation Place |
Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control |
3.Functions& Features
(1) Running stablely without noise and mechanical impact
(2) The passing person number of the persons can be set
(3) Several ways of working molds for your demand chosen
(4) Bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board
(5) Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection.
(6) Direction-guide lights in the turnstile to tell you whether the direction to go or not
(7) The standard electrical interface connected with various kinds of reader and writer equipment
(8) All the functions realized in one integration machine and controlled and managed by the computer in the far distance
(9) The number of the persons passed by can be counted automatically which can also be displayed in LED
(10) Beam can be lifted and fall when power is cut-off
(11) The function with or without card-reading memory cab be set according to your demand.
(12) Self-check and alarm for convenienting to operate

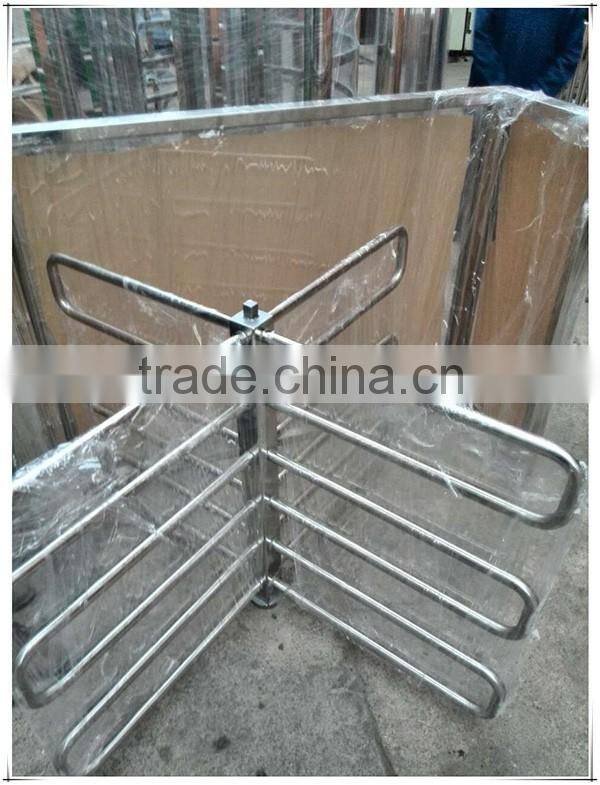

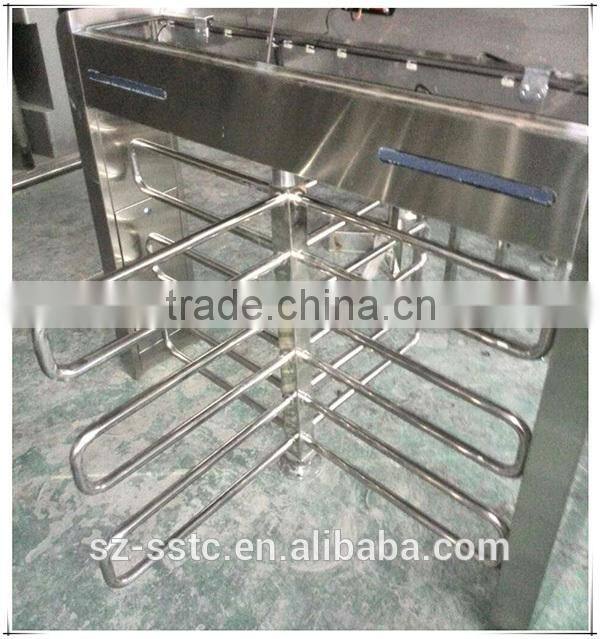

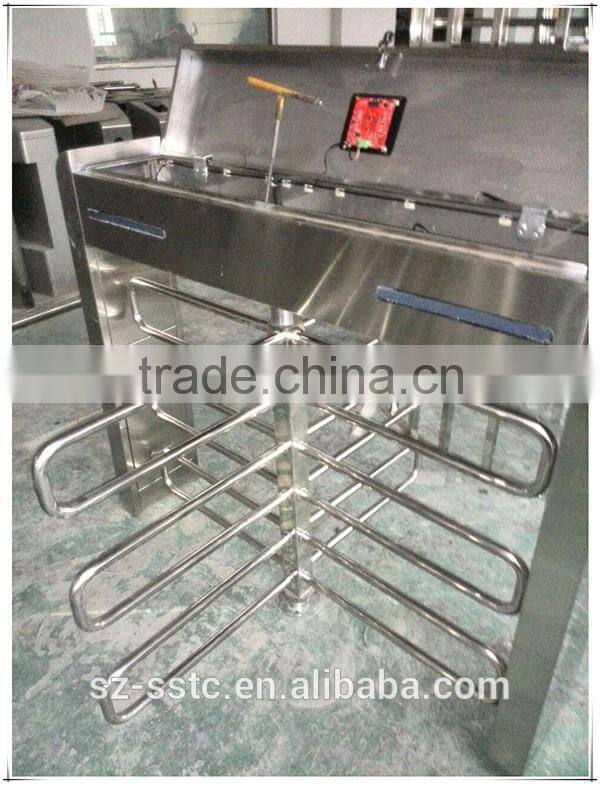

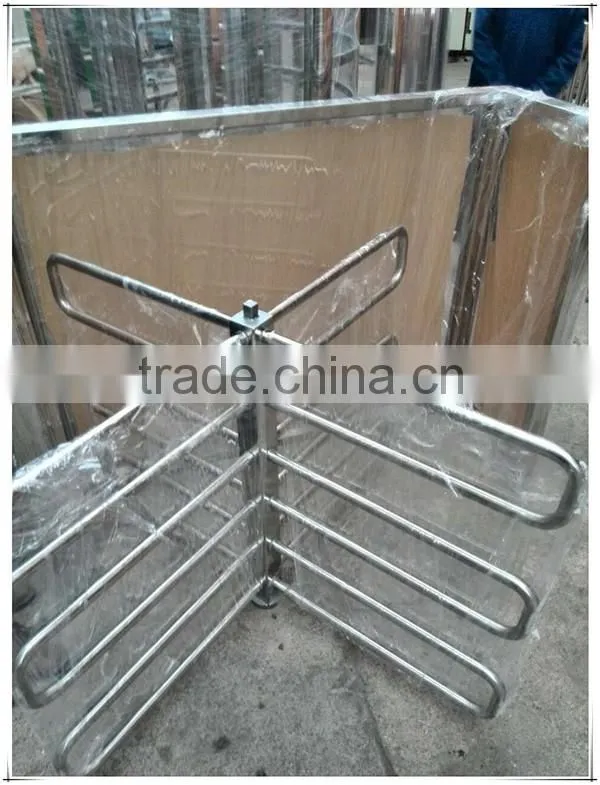

4.Detail shows

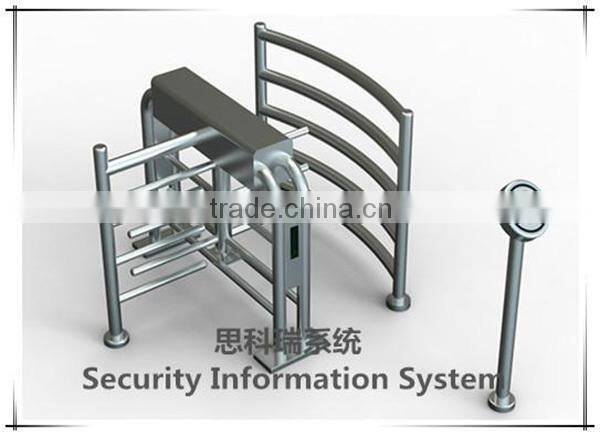

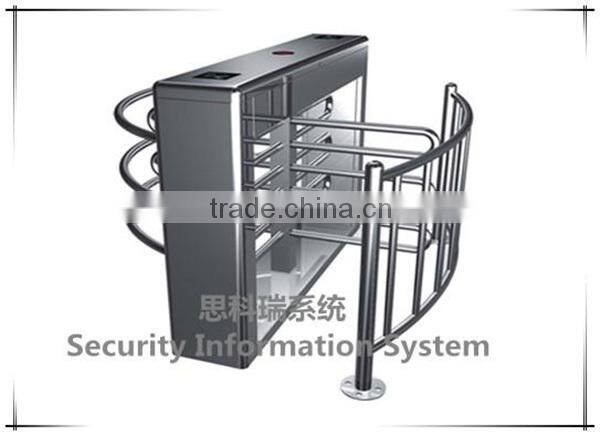

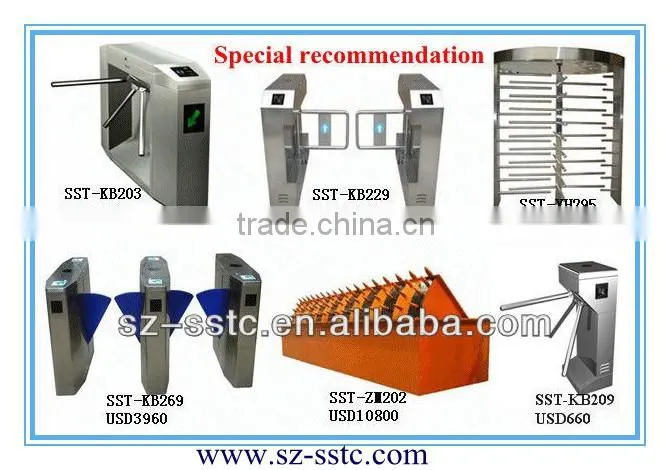

5.More products picture
Products Package in standard export carton
but we strongly suggest pack goods in wooden cage to protect the products.
Our service
Reply your inquiry in 24 working hours.
Professional staff answer your questions in English.
Customized design is available,we can accept OEM & ODM.
Unique problems can be made solution by our professional engineers.
Special discount and protection of our distributors or agents in their area.
