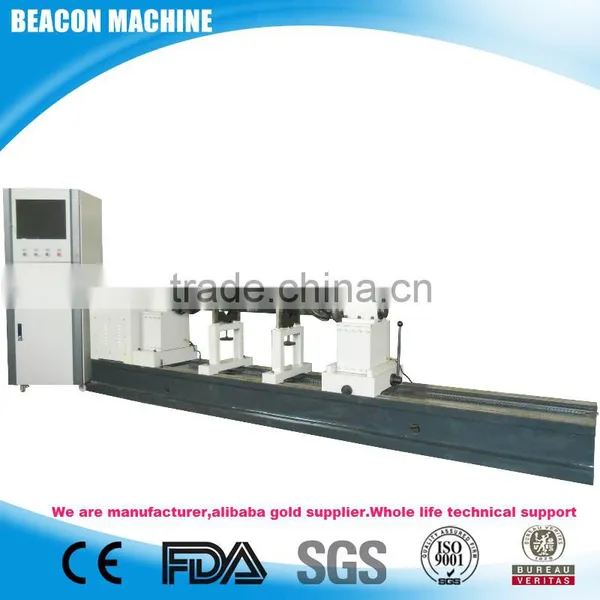

BDB-100A drive shaft balancing machine with whole life technical support also trade assurance support
BDB series drive shaft balancing machine(soft bearing)
This series balancing machine is an ideal euipment for a car to balance and check the drive shaft. Just replace the installation of the workpiece fixture, you can make a variety of automotive drive shaft of the balancing correction, Dual-speed motor (inverter) drive, handle fast-brake brakes, double-sided balance, swing frame adopts semi-hard supporting structure, measurement systems use RYW-2001 balance measurement software, with industrial control computer and control cabinet. System testing of high precision, reliable, easy maintenance, more advanced than other test systems. Adopt automatic tracking filter circuit and system computer that manufactured by abroad advanced integrated circuits to maximize the degree of integration of the electrical appliances, modular design and high-integrated circuit is a distinctive feature of the aircraft. Software interface designs friendly, you can store more than 100 rotor parameters, measurement is simple, you can only enter the type of numbers of the rotor than can enter into the measurement procedure, the screen displays the size of the unbalance and phase angle and real-time speed, rotor number, character prompt steps, real-time status display signal processing / de-emphasis status etc
Technical data :
Model |
Max.mass of workpiece(kg)
|
Max.length of workpiece(mm) |
Balancing speed min(r/min) |
Min.achievableresidualun balance |
Unbalance reduction ration(%) |
Drive Power |
Speed Mode |
BDB-100A |
100 |
2000 |
900-3600 |
≤8gcm/kg |
≥85% |
2/2.4(A: 2.2) |
Dual-speed Motor(A-Frequency Control) |
Product photo about our product with different design
Our new appercance :
warehouse corner
workhouse
Q: How can i get this product?
A: We can do the delivery by sea shipping to your nearest port,or to your specific address.
Also we can do the air transport to directly your nearest air port or your specific address.
Q:How can i pay,what kind of payment will be accept?
A:We support TT payment,West Union,also paypal and Trade assurance.
Q:Do you have common rail tools or spare parts?
A:Yes,for sure,we have the commin rail tools and spare parts also with best quality and most competitive price.
