High Quality Automatic Access Passage Optical Swing Turnstile Gate

High Quality Automatic Access Passage Optical Swing Turnstile Gate thumbnail-1
High Quality Automatic Access Passage Optical Swing Turnstile Gate photo-1
US$ 1,800 - 2,500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SST
Model Number:
SST3010
Contact Supplier Request Quote Chat Now
Shenzhen Security Information System Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SST
Model Number SST3010

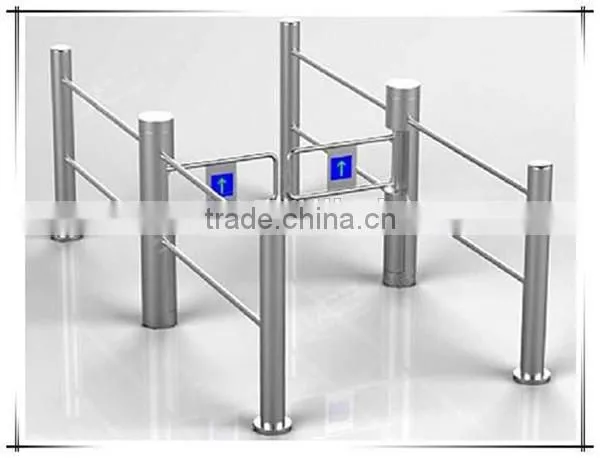

High quality automatic access passage optical swing turnstile gate



High quality automatic access passage optical swing turnstile gate





Introduction

A turnstile is a form of gate which allows one person to pass at a time. It can also

be made so as to enforce one-way traffic of people, and in addition, it can restrict

passage only to people who insert a coin, a ticket, a pass, or similar. Thus a

turnstile can be used in the case of paid access, for example public transport as a ticket barrier or a pay toilet, or to restrict access to authorized people, for example in the lobby of an office building.



Functions and features:

  •  Self-report fault, convenient for using and maintainance
  • Pass indication function
  • Double anti-pinch(mechanical and infrared induction) protection
  • Barrier gate automatically open when power failures, and reset when power on, meet the fire
  •  safety requirements
  • Barrier gate automatically locking following with sound alarm when has illegal invasion
  • In and out mode can be adjusted, controlled or free; closing barrier mode can be adjusted,
  • infrared induction closing or delay closing(time can be adjusted)
  • Has remote control switch, to meet the special needs of customer
  • Standard and uniform external electric interface, can be connected with various kinds of read
  • and write devices, great for system integration
  • Can be connected with access control system, consumption system, electrical ticket system,
  • biological recognition system and other systems

Specifications:



Body material

304 stainless steel

Dimensions

1,200 x 280 x 990mm

Swing arm length

<900mm(single)

Swing angle

0-180°

Pass ways

single directional and bi-directional

Pass speed

40 people/min(normal open); 25-30 people/min(normal close)

External connecting power

AC220V

Indicator light voltage

DC12V

Environmental temperature

-15°C to 75°C

Relative humidity

<95%, no condensation

Communication interface

RS485

Input interface

switch signal(relay signal)

Drive motor

brush type motor DC24V

Bar operation time

about 2S



High quality automatic access passage optical swing turnstile gate

High quality automatic access passage optical swing turnstile gateHigh quality automatic access passage optical swing turnstile gateHigh quality automatic access passage optical swing turnstile gateHigh quality automatic access passage optical swing turnstile gate

High quality automatic access passage optical swing turnstile gateHigh quality automatic access passage optical swing turnstile gate





 Applications:

Turnstiles are used at a wide variety of settings, including stadiums, amusement parks, museums, mass transit stations, office lobbies, retail sites, cafeterias, temporary exhibits, ski resorts, casinos and souvenir stands.



High quality automatic access passage optical swing turnstile gateHigh quality automatic access passage optical swing turnstile gate

High quality automatic access passage optical swing turnstile gate



High quality automatic access passage optical swing turnstile gate



High quality automatic access passage optical swing turnstile gateHigh quality automatic access passage optical swing turnstile gate

High quality automatic access passage optical swing turnstile gate

High quality automatic access passage optical swing turnstile gate

High quality automatic access passage optical swing turnstile gate





Any interest about our turnstile, pls feel free to contact me at any time!
