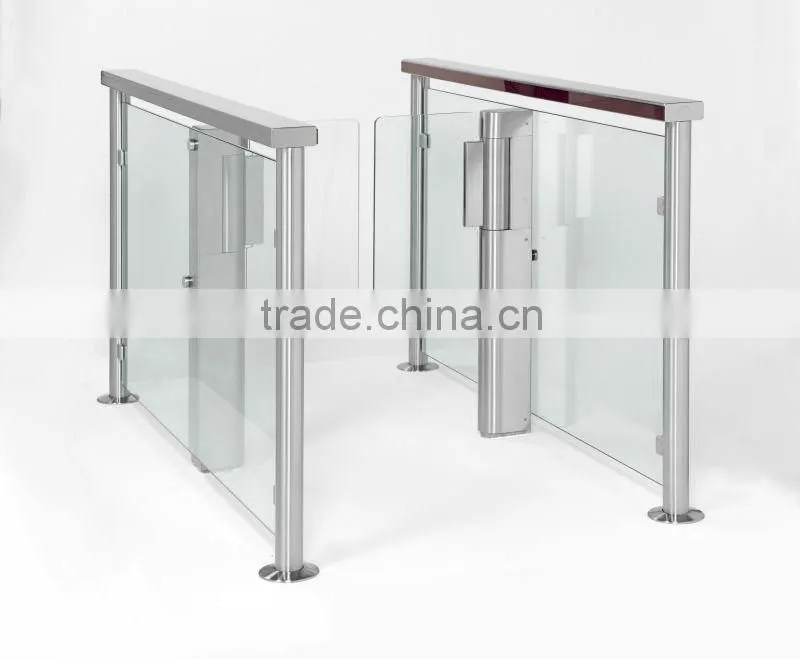

Theater/theatre Automatic Swing Barrier Electronic Pass Turnstile for Handicap Channel

US$ 1,900 - 2,400 MOQ: 1 Pair

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

SST

Model Number:

SST-N3008

Contact Supplier Request Quote Chat Now

Shenzhen Security Information System Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name SST

Model Number SST-N3008

theater/theatre automatic swing barrier electronic pass turnstile for handicap channel

Product Description

The intelligent Flap barrier is one of the serial products of intelligent passage management system from our company. It possesses superiority incomparable with the traditional management mode. Whether on the control of right of passenger for passing, or on tolling, attendant or counting of the passenger, there will be a great deal of man power and material, a lot of spending, a large amount of work and a very low efficiency resulted with the traditional management mode. However, it is the strong merit point of the intelligent passage management product to solve the problems of this kind. It is the scientific crystallization of the highly development of social civilization and it opens a new era for the scientific management.

Technical Parameter

- Power: AC220V; 50HZ

- Driver Mode: DC motor 140W / 24V

- Dimensions: 1200mm x 300 x 1000mm

- Lane Width: 600-900mm

- Communicate Interface: Relay

- Communicate Distance: 1200m

- Passing Speed: 40people /minute (N/O); 20people / minute (N/C); the data is empirical value, it need to depends on the response time of users’ optional access control system.

- Service Life: 5 millions continuous opening and closing

- Open and Close Time: 1 second

- Equipment Identification Ability: the distance of two people is over 130mm

- Numbers of Control system support infrared sensor: max. 8 pairs infrared sensors

Optional Part

- Can be customized the lane width

- Can choose controller system supported Infrared numbers : 4 ~ 8 pairs

- Able to use other material for housing, such as 316 stainless steel etc…

- Prevent Channel using other color

- Remote Control Board

- Integration of Various Kinds of Access Control Management System

Working Mode

- A-SD1 series Swing Gate has different working mode in passing direction A or B control.

- Passing Freely: open automatically when the infrared sensors detected the pedestrian.

- Locked All the Time: the direction is locked all the time, and the pedestrian can not pass through.

- Authorized to Pass: accomplished remote control though contacted various kinds of access control management system

- Release when the power is interrupt, the passing channel is released locking status after the power is interrupted, the pedestrian can be passing freely, avoid scare.

Equipment Composition

- Housing is using 1.5mm AISI-304 wire drawing of stainless steel,

- Made slop / open hole at the top of cylinder, can be built-in access control system in the inner space

- Channel status indicated that is able to built-in slop of the top of cylinder

- Organic glass for panel of gate

- The top of stainless steel board can be opened as to maintenance port.

- Cylinder was designed circular arc.

- Built-in infrared sensor in the side of housing.

- Electromechanical combination / electronic controller was built-in in the inner housing

- The swing gate is a new style barrier gate, can be provide speed, secure and high-efficiency bi-directional barrier gate

- The product is using authorized mode to control and limit entry and exit, and using the complicated anti-following tracking control technology, able to judge quickly and correctly if someone is following, and strictly prevented entry of non-authorized people. To accomplished efficient management of pedestrian, and achieve safety function of barrier gate.

- The control technology of products is in the lead of the same products.

- Unique design, perfect control technology, valued and artistic outlook design, to be best choice for high flow and strictly safety needed places like government agency, office building, hotel and enterprises office building, etc…

Unique design, perfect control technology, valued and artistic outlook design, to be best choice for high flow and strictly safety needed places like government agency, office building, hotel and enterprises office building, etc…

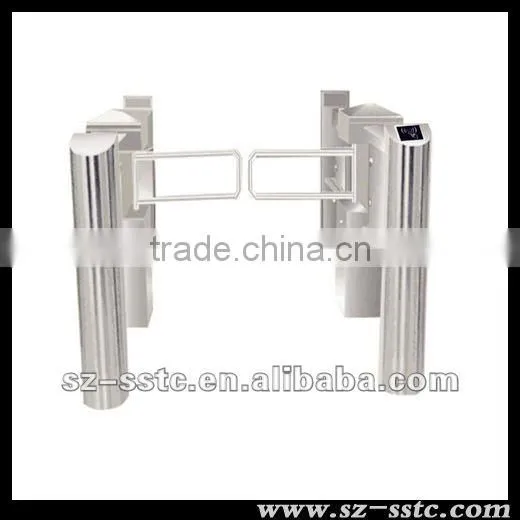

More models:

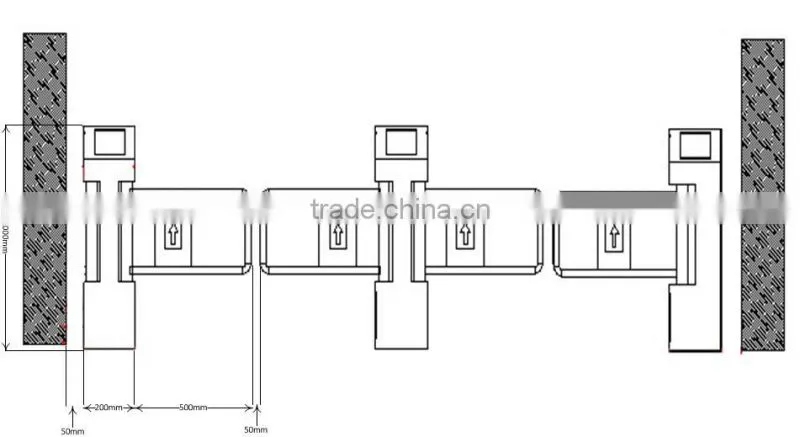

Housing Size

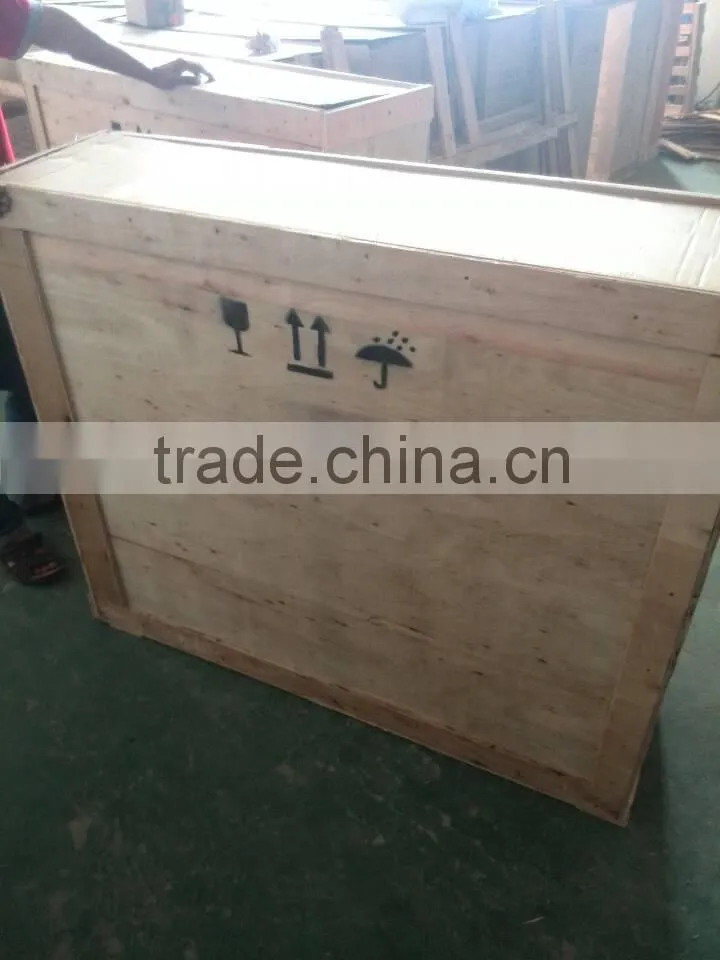

Packaging & Shipping

project case
