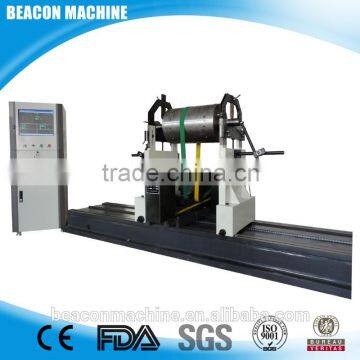

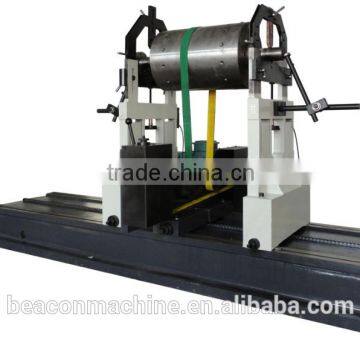

Taian beacon manufacturer soft bearing HBQ-2000A used dynamic balancing machine
Widely used in electric motors, fan/blower, diesel engine, farm machine, textile machiner, printing machine, paper-making machine, water pump, automoible etc
Industrial control computer 19 "LCD color screens
Widows Chinese and English system double choice
With GB-2000 general microcomputer balance measuring system
Automatic program-controlled amplifier module
Any workpiece scaling function, arbitrary Angle clamp compensating and workpiece information storage
Qualified quantity showed that adjustment function measurement cycle
Signal amplifier amplification and manual adjustment, signal self-check, automatic diagnosis
Vector graphics, waveform and out of balance, shows at the same time
Surplus balancing g and unbalanced torque, the g cm, g mm can choose to display
HBQ-2000A Belt Drive Balancing Machine Optional function
1, Balance Angle automatic tracking function
2, Parking automatic positioning function
3, Vector Angle function decomposition
Lathe bed according to user requirements lengthen
HBQ2000A Belt Drive Balancing Machine Characteristics (1): this series is hard supporting horizontal dynamic balance machine, with roller bearing, the circle take drag, regular for double speed motor drive, "A" type for frequency conversion motor speed and frequency converter, the industrial control computer for data processing, color screen real-time display don’t balance phase Angle and value, real-time speed, lathe bed all use whole casting, the stability is good.Widely used in electric motors, blower, diesel engine, auto parts, etc, can be in the single side, double side and multiple correction plane balance measurement, suitable for axle, dish out and center of gravity of the rotor. Have high efficiency, precision accurate, show intuitional, reliable quality, easy maintenance, the characteristics of software with ordinary workpiece and standard rotor two calibration function, overcoming the other hard supporting balance machine measurement system to users to calibration equipment of the defect, and a variety of measurement method and function to choose, can realize the input parameters, preview, the experiment, the results storage, print, operating all adopt the localization menu structure, the man-machine dialogue, automatic hints.
Characteristics(2): Widely apply for industries like motor, blower, diesel motor, turbocharger,
armature, rotors of paper machinery and textile machinery etc.
Horizontal hard bearing dynamic balancing machine serials
Wheel bearing
Belt drag
Motor and Inverter for speed regulation
Industrial computer to process data
Colored screen display unbalance value, phase angle, and practical rotation speed
Overall cast base, better stability
Balance test as single side, double side, multi side
Apply for shaft, plate, and extended focus rotor
High accuracy, direct, dependable quality, convenient maintenance
Software has two calibration function like usual piece and standard rotor
Parameter input, overview, test, data save, operate and menu
Optional function
1.Angle tracking function
2.Automatically stop when finish balancing workpiece
3.Automatically location function
4.Vector angle analysis function
Technical data :
Model |
Working piece quantity range:kg |
Working piece diameter:mm |
Distance between two supporting:mm |
Shaft diameter range: mm |
Diameter range at the lap belt drag mm |
balancing |
minimum mm |
Unbalance |
Motor |
peed tmen |
HBQ-2000a |
30-2000 |
Φ1800 |
200-2600 |
Φ10-80 |
Φ40-800 |
180-25 |
≤0.5 |
≥90 |
7.5 |
Frequency |
>>>the balacing rotors

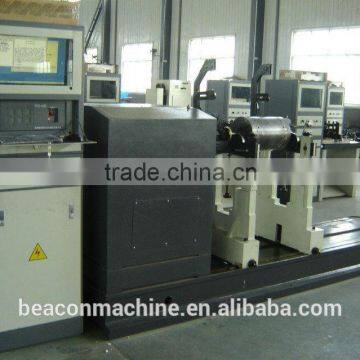

---Our workshop
welcome you to visit to our factory ,and show you how to operate for free
One year warranty for parts , Lifetime technical support
If you become our old customers , will give you lowest price
Q: Are you a manufacture or a trading company?
A: We are a manufacture which produce verious type of balancing machine .
Q: How about your quality and price?
A: Quality first is the priority of our company. We care the quality very much during production and before delivery to customer. Our product has passed CE and ISO 9001. Our quality is high range but price is midumn range, We are manufacture so we save a lot of other cost. We can understand your want the best quality product using the least price. We promise our quality worth every cent you pay.
Q: Can you do OEM for you?
A: Yes. We can do OEM. We can print your brand logo sticker on the product and also your designed drawing on the product.
Q: I can’t find products I want to buy from your website, and can you produce to my request?
A: Yes. Our technical can figure it out and calculate price for your reference. We can produce based on your drawing and parameter.
Q: What’s your warranty?
A: We provide one year warranty and we will give more easy-broken parts before shipment. If any problem happened and we are very sorry for that. But we will give necessary assistant and send better part to you.
Q: What is the payment terms you accept?
A: We can accept T/T, Western union ,Trade assurance and so on many ways of payment. You can contact us for more details.
>>>Welcome to contact with us
