Help CenterLaser Non-contact Infrared Pyrometer for Temperature Measurement 3000c
Related Products
-
MPT613-IRC Nor-contact Infrared PyrometerUS$ 430 - 580MOQ: 1 Piece -
MPT611-C nor Contact Infrared PyrometerUS$ 350 - 450MOQ: 1 Piece
-
MPT601 PT1000 Temperature SensorUS$ 35 - 75MOQ: 1 Piece
-
MPT604 Digital Temperature TransmitterUS$ 125 - 175MOQ: 1 Piece
-
MPT603 High Temperature Sensor Pt1000US$ 85 - 135MOQ: 1 Piece
|
PRODUCT SPECIFICATION Category: PT100/1000 Infrared pyrometer PT Range: -20kpa~0~10kpa~100kpa~2000bar~8000bar Signal output: RDT, 0-5vdc, 0-10vdc, 4-20MA, RS485, CPI temperature type: PT100, PT1000, Thermocouple, PT100, PT1000, infrared light Measure temperature: -50c ~0c~350c~750c~1200c~2000c~3000c | ||||
Technical parameters: | ||||
Capability range: |
-50c ~0c~350c~750c~1200c~2000c~3000c |
|||
Measurement wavelength: |
8-14um 1.6um 1.0um 0.85~1.1um/0.95um, RTD, PT100/1000 |
|||
Distance coefficient: |
8-12:1 /16:1/ 30:1 /100:1 |
|||
System accuracy: |
±1% or ±1.5 c |
|||
Repeat accuracy: |
±0.5% or ±1 c |
|||
Temperature resolution: |
0.1centigrade |
|||
Response time: |
200ms (95%) |
|||
Environmental Class: |
IP65 (NEMA-4) |
|||
Ambient temperature: |
0-60centigrade |
|||
Storage Temperature: |
-20-80 c |
|||
Relative humidity: |
10-95%, No condensation |
|||
Weight: |
120g-1200g |
|||
Analog output: |
RDT, 0-5vdc, 0-10vdc, 4-20MA, RS485, CPI |
|||
Maximum loop impedance: |
750Ω (24VDC) |
|||
Power supply: |
12-24VDC (100mA) |
|||
|
PRODUCT APPLICATION Used in electric power, metallurgy, ceramics, petroleum, chemical industry, kiln, universities and research institutes, etc.Such as aluminium hot working, molten steel ladle furnace temperature, furnaces flame temperature, etc | ||||
| ||||
PRODUCT INDEX | ||||
MPT601 |
PT100/PT1000 |
,-50~350c |
RJK type,0-5vdc, 0-10vdc, 4-20mA |
|
MPT602 |
PT100/PT1000 |
,-50 to 350c |
RJK type,0-5vdc, 0-10vdc, 4-20mA |
|
MPT603 |
PT100/PT1000 |
,-50 to 750c |
RJK type,0-5vdc, 0-10vdc, 4-20mA |
|
MPT604 |
PT100/PT1000 |
,-50 to 750c |
RJK type,0-5vdc, 0-10vdc, 4-20mA |
|

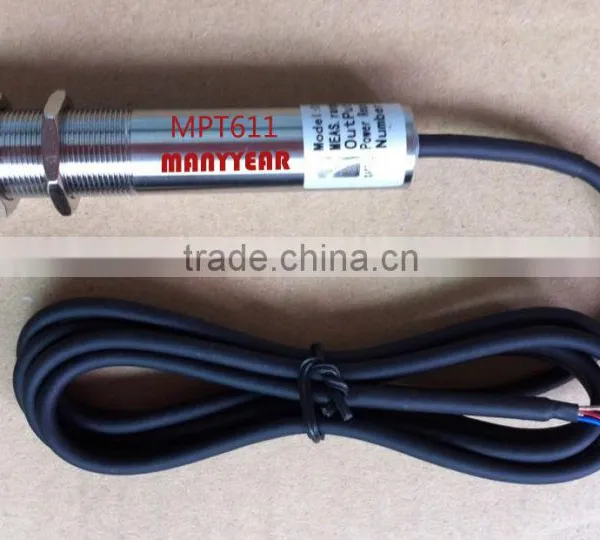

MPT611C |
Infrared 8-14um |
,-20 ~350c, 0-800c, 0-500c, 200-1000c |
RJK type,0-5vdc, 0-10vdc, 4-20mA |
|
MPT613 |
Infrared laser, 1.6um |
300-800C, 400-1200C, 500-1400C, 800-2000C |
CPI,mv, 0-5vdc, 0-10vdc, 4-20mA |
|

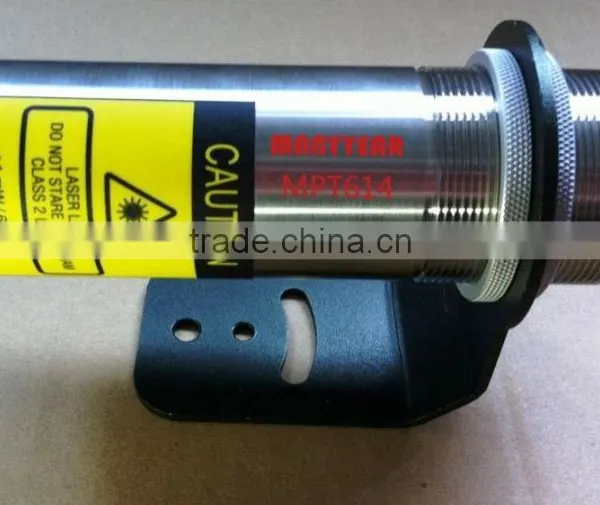

MPT614-GY |
Infrared laser, 1.6um/1.0um |
0-600C, 300-1400C, 200-1000C, 600-2000C |
CPI,mv, 0-5vdc, 0-10vdc, 4-20mA |
|
MPT616HTS |
0.85~1.1um/0.95um |
600-1400c, 700-1800c, 900-2400c, 1000-3000c |
CPI,mv, 0-5vdc, 0-10vdc, 4-20mA |
|
|
Environment-protected polybag + Color box + carton box+ damp proof packing Ocean Freight, Air freight, DHL, FEDEX, TNT,SF, EMS… |
|
Pic |
|
Our Service 24Hr for response time. 5-7days for sample time. 15-25days for delivery time. 12 months for quality assurance time. ODM, OEM support |
|
Our Factory Provide Design, manufacture, sales, server of load cell since 1998. 20,000 square meter industrial park 1000+ worker. |
|
Pic |
|
Our Intelligence ISO, OIML, ROHS, CE. |
|
Pic |
|
Our Equipment 800t hydraulic machince. Precision balance laboratory. 0.001g to 20t Weihing machince. Truck scale test station. CNC machince. Life test chamber |
|
Pic |
