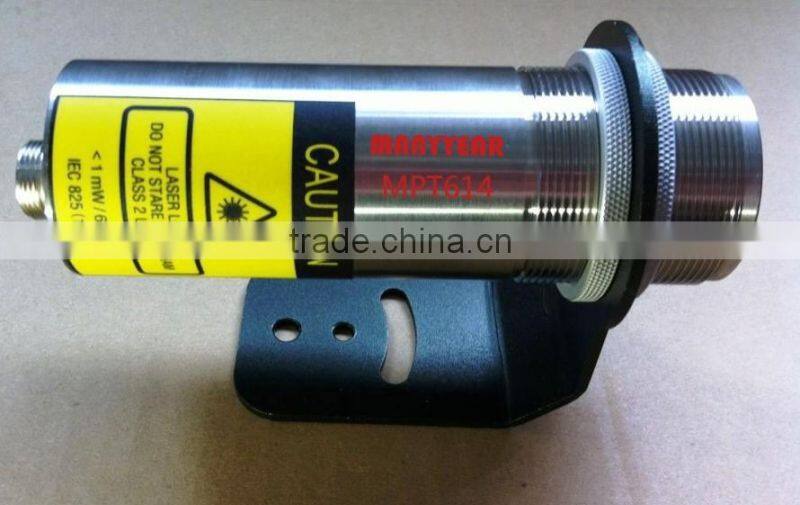

MPT614H-GY Nor-contact solidity Infrared Temperature transmitter 4-20mA 300-1400C

MPT614-H-GY infrared pyrometer

Model: MPT614-H-GY

Category: Infrared Temperature Sensor

Range: 0-600C, 300-1400C, 200-1000C, 600-2000C

Sensor: Infrared laser, 1.6um/1.0um wavelength

Signal output: CPI, mv, 0-5vdc, 0-10vdc, 4-20mA

Application: Nor-contact solidity, melt temperature measure

Characteristic: infrared pyrometer, Nor-contact infrared pyrometer

Technical parameters:

Capability range:

0-600C, 300-1400C, 200-1000C, 600-2000C

Measurement wavelength

1.6um/1um

Distance coefficient

100:1 (Optional microwave special type)

System accuracy

±1% or ±1.5centigrade (Take the maximum)

(Ambient temperature:23±5centigrade )

Repeat accuracy

±0.3% or ±1centigrade (Take the maximum)

(Ambient temperature:23±5centigrade )

Temperature resolution

0.1 centigrade

Response time

10ms (95%)

Environmental Class

IP65 (NEMA-4)

Ambient temperature

0-60centigrade

Storage Temperature

-20-80centigrade

Relative humidity

10-95%, No condensation

Weight

120g

Analog output

4-20Ma (Can be customer-made 0-5V)

Maximum loop impedance

750Ω (24VDC)

Power supply:

12-24VDC (100mA)
