Help Center0-10vdc, 0-5v, 4-20mA Water Pressure Sensor for Air, Water, Oil Pressure Measurement.
Related Products
-
MPT124-121 Flexible Tube Melt Pressure TransducerUS$ 165 - 235MOQ: 1 Piece -
MPT124-221 Temperature Pressure MeterUS$ 245 - 295MOQ: 5 Pieces
-
MPT124-141 Plastic Extruder Equipment Pressure SensorUS$ 145 - 225MOQ: 5 Units
-
MPT421 Submerged Digital Water Level TransmitterUS$ 120 - 200MOQ: 1 Piece
-
MPT422 Digital Level TransmitterUS$ 115 - 200MOQ: 1 Piece
|
PRODUCT SPECIFICATION Category: Common pressure transducer Range: -20kpa~0~10kpa~100kpa~2000bar~8000bar Signal output: 1.0mv/v, 2.0mv/v, 100mv/FS, 0-5vdc, 0-10vdc, 4-20mA Pressure type: Gauge pressure, vacuum pressure, absolute pressure Work temperature: -260c~-196c~-40c~0~80~125℃~250c~1200c | |||||
Technology parameter : | |||||
capability range: |
-20kpa~0~10kpa~100kpa~2000bar~8000bar |
||||
pressure type: |
Gauge pressure, Absolute pressure, vacuum pressure |
||||
signal output (mA/v): |
0-5V;0-10V;0.5-4.5V;4~20mA |
||||
Precision(%FS): |
≤0.1/0.25/0.5%FS |
||||
sluggish repeat (nor-linearity)(%FS): |
≤0.1~≤0.2 |
||||
excursion at zero point(%FS/4h): |
≤0.1~≤0.2 |
||||
temperature excursion: |
≤0.01~≤0.02 |
||||
long term stability(%FS/year): |
≤0.1~≤0.3 |
||||
execute voltage (V): |
24VDC (9~36V)- For 4-20mA and 0-10V; 5VDC-For 0.5-4.5V; 12VDC-For 0-5V; 0-10V |
||||
temperature compensate(℃): |
-20~+60 |
||||
environment temperature(℃): |
-20~+85 |
||||
Medium temperature(℃): |
-260c~-196c~-40c~0~80~125℃~250c~1200c |
||||
Overload(%): |
150 |
||||
load resistance(Ω): |
R=(U-12.5)/0.02-RD U=POWER SUPPLY, RD=Wire resistance |
||||
response time (ms): |
≤1 |
||||
Measure medium: |
Oil, gas, water and so on |
||||
House: |
1Cr18Ni9Ti or 316SSL |
||||
Connect thread: |
M20×1.5,1/8NPT,1/2NPT or order by customer |
||||
explosion proof grade: |
EXIICT6 OPTION |
||||
water proof grade: |
IP65/66/67/68 |
||||
|

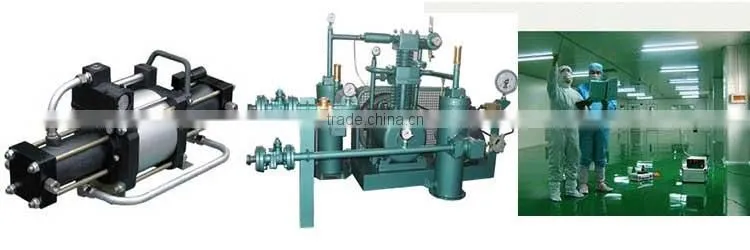

PRODUCT APPLICATION Under the condition of high temperature, low temperature, room temperature gas liquid melt pressure measurement, measuring pressure and corrosive environment | |||||
|
PIC
| |||||

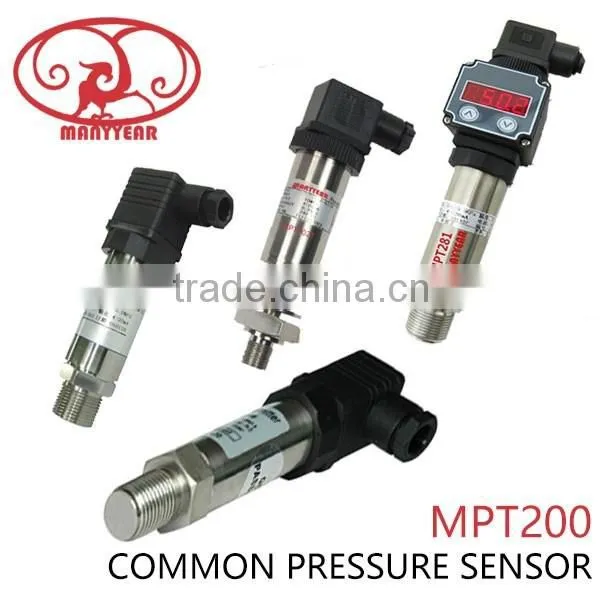

PRODUCT INDEX | |||||
Model: |
Features |
Pressure range |
Temp. range |
Signal output |
|

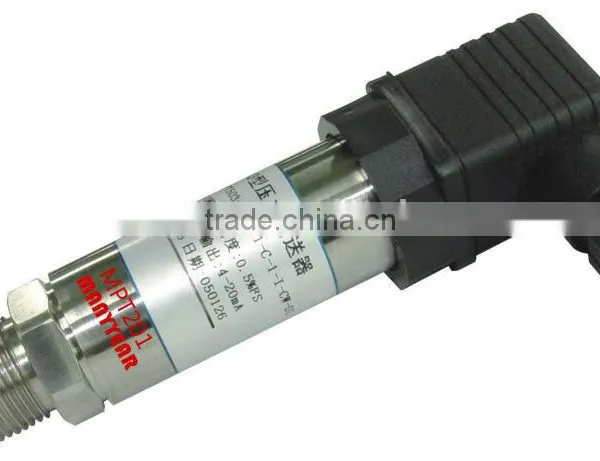

MPT201 |
Common |
-1bar-0-2000bar |
-20 to 125c; |
3.3mv, 0-5vdc, 0-10vdc, 4-20mA |
|

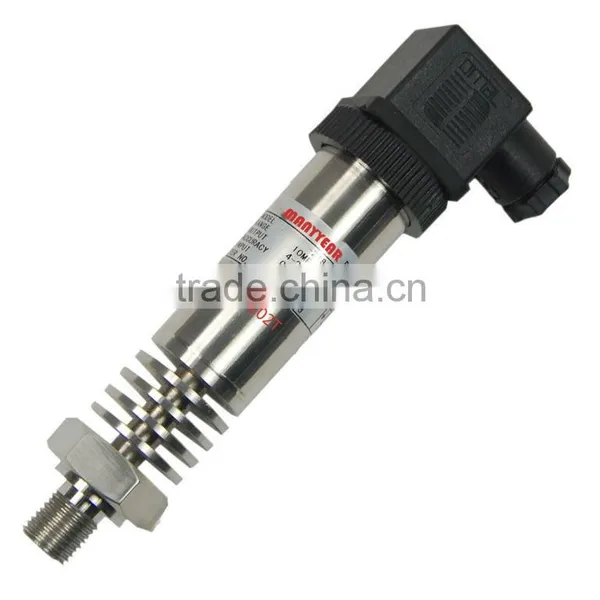

MPT202T |
High temperature |
0-2000bar |
.-20~+150~250c |
mv/v, 0-5vdc,4-20mA,Hart,Rs485 |
|
MPT202HT |
Ultra high temperature |
0-2000bar |
0~200c-1200c-1600c |
mv/v, 0-5vdc,4-20mA,Hart,Rs485 |
|
MPT221LT |
Ultra low temperature |
0-2000bar |
-196℃~+125℃,-260℃/-350c(especial) |
mv/v, 0-5vdc,4-20mA,Hart,Rs485 |
|
MPT203 |
capillary tube |
0-2000bar |
.-20~150 |
mv/v, 0-5vdc,4-20mA,Hart,Rs485 |
|
MPT205 |
explosion-proof |
0-2000bar |
.-20~175 |
mv/v, 0-5vdc,4-20mA,Hart,Rs485 |
|
MPT211 |
minute size |
0-2000bar |
.-40~+125 |
mv/v, 0-5vdc,4-20mA |
|
MPT212 |
Polyethylene antisepsis |
0-2000bar |
.-20~+80 |
mv/v, 0-5vdc,4-20mA |
|
MPT213HP |
High pressure |
0-2000bar |
.-40~125℃ |
mv/v, 0-5vdc,4-20mA |
|
MPT214 |
Engineering hydraulic |
0-2000bar |
.-20~+80 |
mv/v, 0-5vdc,4-20mA |
|
MPT241 |
Flush Diaphragm |
0-2000bar |
.-40~+125 |
mv/v, 0-5vdc,4-20mA |
|
MPT242 |
Clamps diaphragm |
0-70bar |
.-40~0~150~250c |
mv/v, 0-5vdc,4-20mA |
|
MPT281 |
Digital indicator |
0-2000bar |
.-40~+125 |
mv/v, 0-5vdc,4-20mA |
|
|
Environment-protected polybag + Color box + carton box+ damp proof packing Ocean Freight, Air freight, DHL, FEDEX, TNT,SF, EMS… |
|
Pic |
|
Our Service 24Hr for response time. 5-7days for sample time. 15-25days for delivery time. 12 months for quality assurance time. ODM, OEM support |
|
Our Factory Provide Design, manufacture, sales, server of load cell since 1998. 20,000 square meter industrial park 1000+ worker. |
|
Pic
|
|
Our Intelligence ISO, OIML, ROHS, CE. |
|
Pic |
|
Our Equipment 800t hydraulic machince. Precision balance laboratory. 0.001g to 20t Weihing machince. Truck scale test station. CNC machince. Life test chamber |
|
Pic |
