Small Platform Scale Load Cell

Small Platform Scale Load Cell thumbnail-1
Small Platform Scale Load Cell thumbnail-2
Small Platform Scale Load Cell thumbnail-3
Small Platform Scale Load Cell photo-1
Small Platform Scale Load Cell photo-2
Small Platform Scale Load Cell photo-3
US$ 3 - 50 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MANYYEAR
Model Number:
MLC930
Contact Supplier Request Quote Chat Now
Manyyear Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MANYYEAR
Model Number MLC930
Type Counting Scale
Power Supply NA
Display Type NA
Rated Load 375kg
Accuracy NA
Product Description
small platform scale load cell

Features

Model:MLC930

Category:micro load cell

Range:3.75kg-375kg

Dimension:28*28*h mm

Material:alloy steel

Application:small platform scale, compression test

Characteristic:small platform scaler, compression test

Technology


DIMENSION

LOAD KG

L1

L2

L3

L4

L5

W1

W2

H

ØD1

ØD2

3.75

70

4.9

14

28

23.7

39

27.8

2

5.1

5.1

7.5

70

4.9

14

28

23.7

39

27.8

2.5

5.1

5.1

15

70

4.9

14

28

23.7

39

27.8

4.1

7.6

5.1

37.5

76.2

6

15

29.3

27

44.5

30

4.8

7.6

6.6

75

84.4

6.4

15

34

27.7

54.8

30

6.4

7.6

6.6

150

107.3

7.8

22.9

45.9

38.4

69.9

44.5

7.9

9.1

8.1

375

119.4

9.1

25.4

52.6

43.7

76.1

50.8

12.7

9.1

9.8

Specification

comprehensive error:

0.03%FS

output resistance:

1002±10Ω

Rated output:

1.0±0.03mv/v

Insulation resistance:

≥2000MΩ(100VDC)

Non-linearity:

0.2%FS

Excitation voltage:

5~12VDC

Hysteresis:

0.2%FS

compensated temp:

-10~+40ºC

Repeatability:

0.2%FS

use temperature:

-20~+55ºC

Creep:

0.2%FS/10MIN

temp effect on zero:

0.2%FS/10ºC

Zero balance:

1±0.1%FS

Temp effect on span:

0.2%FS/10ºC

Input resistance:

1220±10Ω

defend grade:

IP66

Application

small platform scale load cell

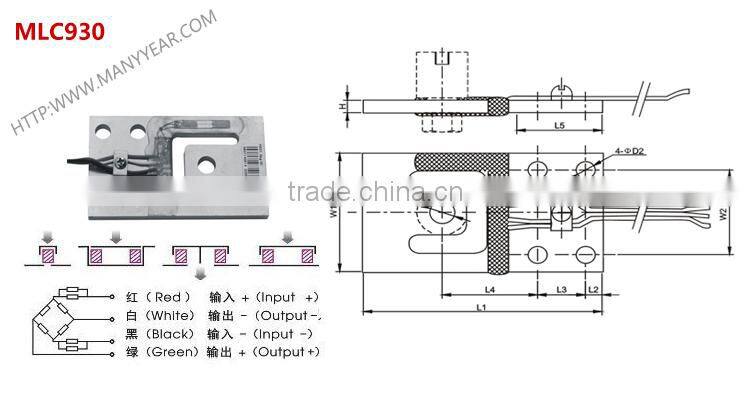

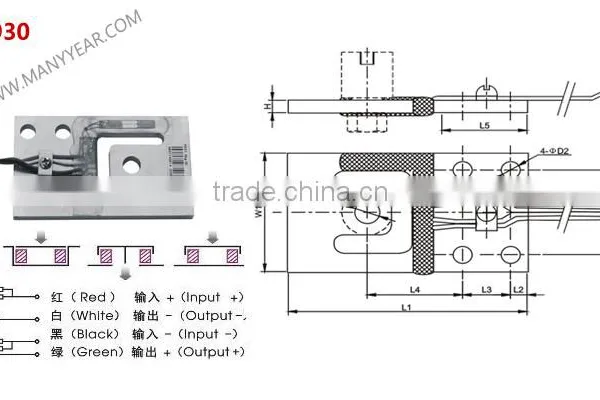

Product Dimension

small platform scale load cell



Force type

small platform scale load cell



Packaging & Shipping

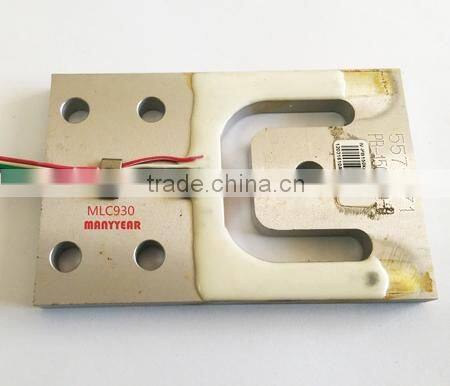

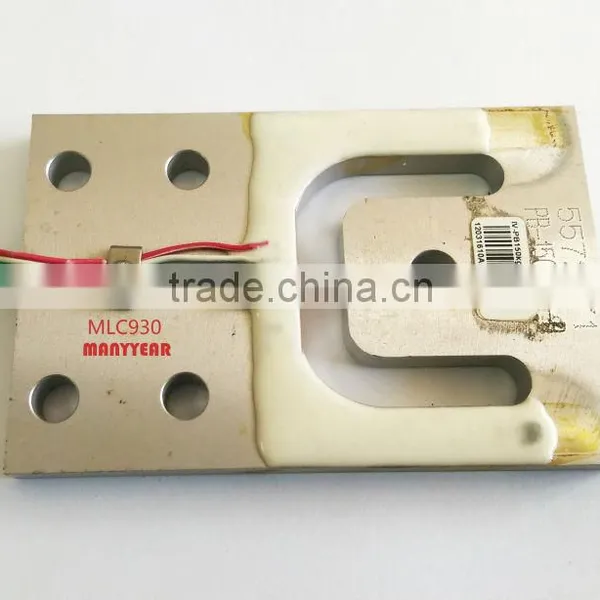

Product photo

small platform scale load cell



Packing picture

small platform scale load cell





Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support
