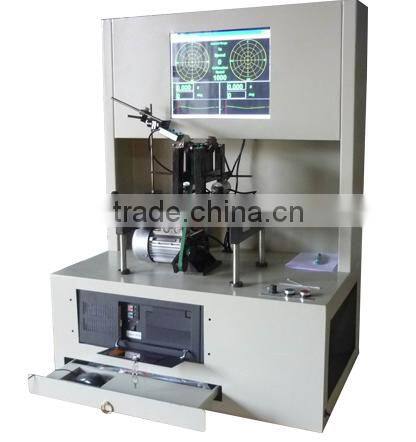

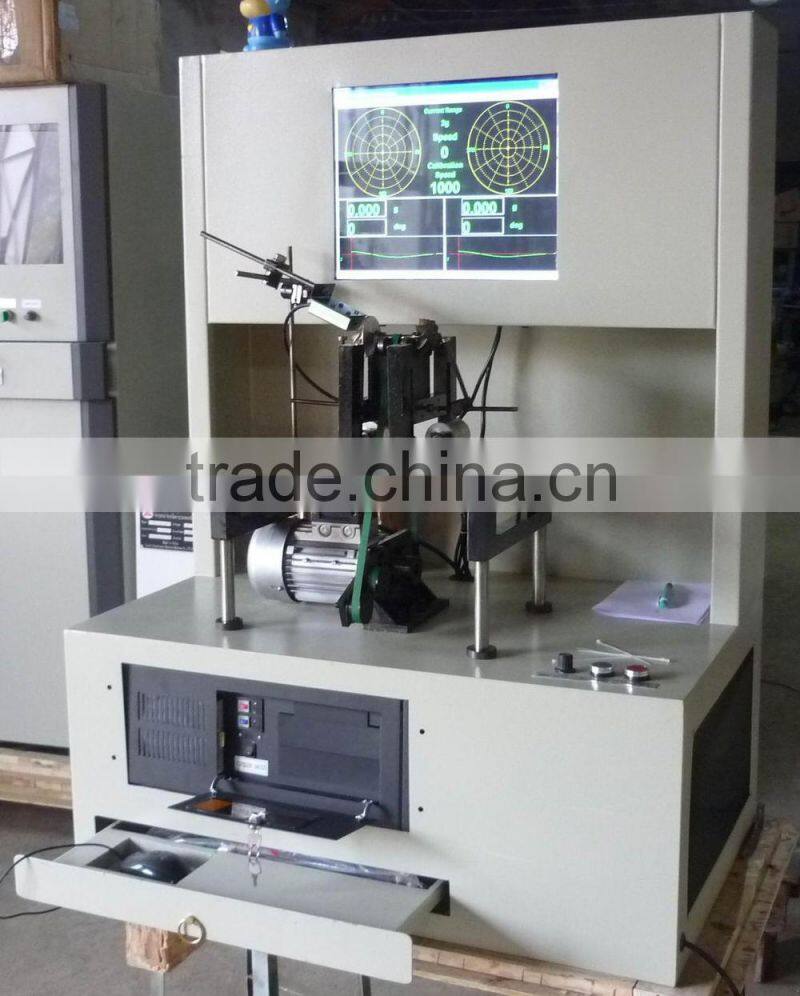

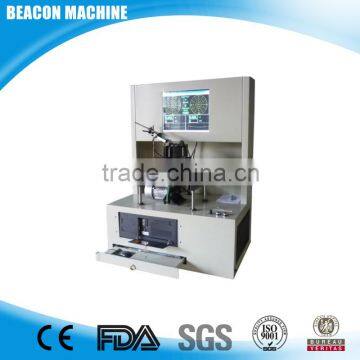

RYQ-10 rotor balancing machine with new design and can do the custom work on request
Introduction
1.Industrial control computer 19 "LCD color screens
2.Windows Chinese and English system double choice
3.With AM-2000 general microcomputer balance measuring system
4.Automatic program-controlled amplifier module
5.Any workpiece scaling function, arbitrary Angle clamp compensating and workpiece information storage
6.Qualified quantity showed that adjustment function measurement cycle
7.Signal amplifier amplification and manual adjustment, signal self-check, automatic diagnosis
8.Vector graphics, waveform and out of balance, shows at the same time
9.Surplus balabcing g and unbalanced torque, the g cm, g mm can choose to display
Feature:
RYQ series universal hard backing dynamic balancing machine,RYQ-10 turbocharger balancing machine
Features: the series is hard bearing horizontal dynamic balancing machine, using the wheel backing, rings with drag ,the popular style is two-speed electric - driven, “A” is variable- frequency electromotor plus inverter speed, industrial control computer data processing, color screen real- time shows the value of the amount of unbalance ,phase and real- time rotational speed, bases have adopted the overall foundry,stability is good. It is widely applied in engine, wind motor, blower, diesel engine and auto parts and other range, It can balance and measure on single side, double side and many test sides, fit for axial, plate and gravity out-stretching roller. It has characterstics of high efficency, correct precision, direct display, convenient maintenance and so on, the soft has both common work piece and standard roller special functions, avoid demarcate equipment non- automatically for customers who use other hard support balancing machine measure system, and you can choose many measure method and function, it can realize to input parameter, preview, test, save results, type, use chinese menu to operate, man- machine conversation, auto prompting.
Technical specifiction
MODEL |
Max. mass of workpiece (kg) |
Max diameter of workpiece (mm) |
Distance between two bearing suppo (mm) |
Max.rotor Diameter (mm) |
Balanncing speed min (r/mm) |
min. achievableresidualun balance(g.mm/kg): |
unbvalance reduction ratio(%): |
Drive power (kw) |
RYQ-10 |
1-10 |
φ500 |
30-600 |
φ5-60 |
400-5000 |
≤0.5 |
≥90 |
0.18 |
Our product and details
Other function machine you need just click model name in this list! :
| common rail test bench | diesel fuel test bench | common rail tester |
| CRS708c(can add EUI/EUP&Cambox) | 12PSB | CR1000 (200USD with piezo function) |
| BC-CR708(most competitive price) | BC3000 | CR2000A (can connect with diesel test bench) |
| CRS200 | BC2001 | VP44 pump tester |
| CRS300(can add VP37 VP44 EUIEUP) | BC2001PLC | VP37 pump tester |
| CRI2000 | BCS619 | EUI EUP&Cambox |
| BCS200 | BCS815 | V3V4V5 pump tester |
| BCS300 | BC-CR819 | |
| PQ1000(only 1300USD per set) |
Standard export packing:Plywood package
Q: How can i get this product?
A: We can do the delivery by sea shipping to your nearest port,or to your specific address.
Also we can do the air transport to directly your nearest air port or your specific address.
Q:How can i pay,what kind of payment will be accept?
A:We support TT payment,West Union,also paypal and Trade assurance.
Q:Do you have common rail tools or spare parts?
A:Yes,for sure,we have the commin rail tools and spare parts also with best quality and most competitive price.
