Specifications
1,One-stop car parking management2,Tailored hand-made
3,RFID advanced technology
4,Money-saving Packaged
5,Shortly Delivery
1.One-stop Car parking Products Integrated

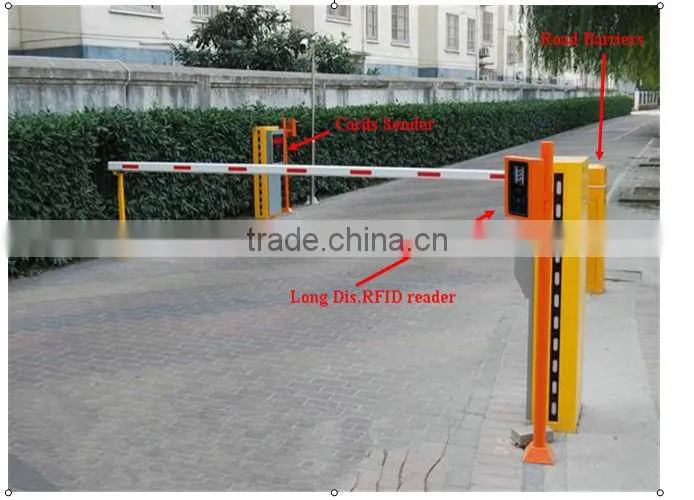

Car Parking System Packaged List As Below:
1)Monitoring Cameras -------------2pcs
2)Vertical Card Sender/reader---2pcs
3)Road Barriers------------------- --2pcs
4)Control House---------------------1pcs(NOT INCLUDED)
5)Vehicle Detectors-------- --------3pcs
Provide customized car parking system solution
2.Description:
SST's Packaged one-stop Parking management system adopt stable and mature data platform, apply to Windows2000Win XP OS and SQL Server 2000 database etc., parking management system is used to control and monitor the information like the vehicle status of Entry and Exit,status of barrier gate and so on. System designs of three-layer CS architecture,the module of each layer can be updated and replaced separately, which will effectively reduce the cost and simplify the management. At the same time, data processing can be transferred from client to application server and database server, accommodate large-scale and complicated application requirement. Parking management system has powerful data processing function. Various control parameters for parking management can be set, such as ID card detecting,ID card extend,Picture contrast etc. User can inquiry the vehicle in the parking lot, different reports can be generated and printed from the system, so as to manage the parking lot effectively.
3.Technical Parameters:
Road Barrier Size |
1300H×440W×340D(mm) |
Housing material |
Steel and Tempered glass |
Color |
Orange/ blue |
ID card read/write time |
≤0.2S |
ID card read/write distance |
≤10cm |
Radio-frequency card read/write time |
≤0.2S |
Radio-frequency card read/write distance |
≤10cm |
Paper outing speed |
≤2S |
Mode of communication |
Base RS-485, Rear TCP/IP |
Communication transmission distance |
1200m(RS-485) |
Offline storage capacity |
30000 pcs (extendible) |
Card capacity |
50000 pcs (extendible) |
Blacklist capacity |
10000 pcs (extendible) |
Data transmission speed |
4800bps/100M |
Working Temperature |
minors 30°C to 70 °C |
Working environments |
indoor, outdoor |
Relative humidity |
≤95% coagulation free |
4.System function:
1) Multiple network modes to realize remote data and image transmission;
2) 32-bit ARM dual-core processing technology;
3) Easy to install, debug and maintain;
4) IC, ID, bar code, RFID available in one control board
5) Nesting function available;
6) Extendible long distance read function;
7) Off-line working available;
8) Extendible plate-number identification and auto-printing;
9) Multiple charging mode, charging standards can be defined by the user;
10) Automatic card dispenser;
11) Voice Notice Available.
12) Flexible system configuration, can be extended to multi-level parking lot manage system;
13) waterproof, dustproof and rustproof case
14) Modular structure, fully integration

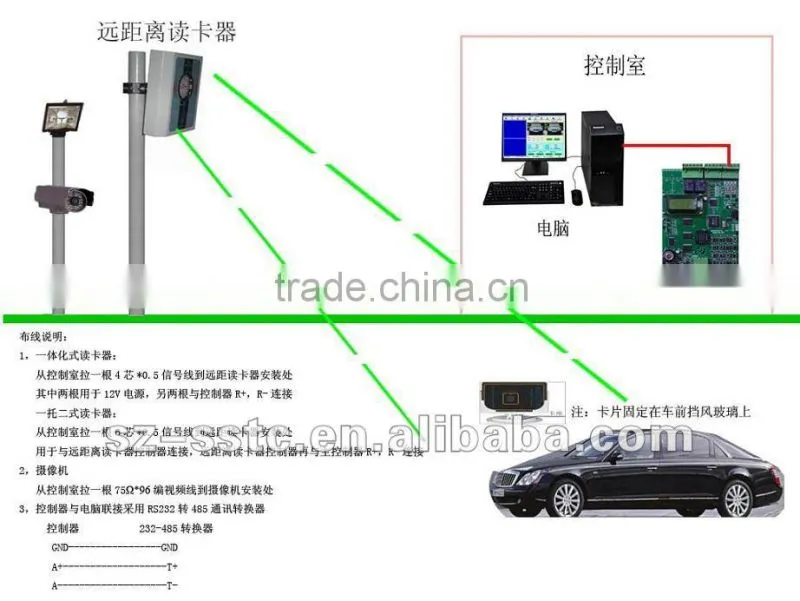

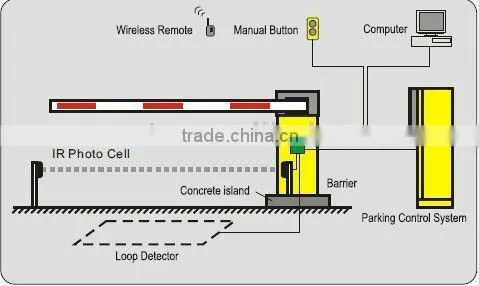

5.Wire Connection Diagram
6.Accessories and Manufacturing Scene
7.Multi-occasion Applications
8.Standard Packages
9.Recommended Products
10.Our services
Customer services oriented.
Reply your inquiries within 12 hours.
Professional staffs answer any questions .
Customized design ,OEM & ODM are available.
Distributors or agents in special policies supports.
Notice:
Due to Car-parking Systems is a complex system--integrate products ,its configuration contains many accessories.
For a best-fit solution to our customer we suggest you contact our experienced sales and senior engineers to
discuss the best option in your requirements .
