security system rfid crowd control full height turnstile
|
Product Description
| ||
|
This full-height turnstile designed with unique mechanical transmission,microprocessors and variety of card-reading machines perfectly integrated together. An all welded steel rotor with straight arms runs in a phosphor bronze bearing at the top end and supported by a ball and cone bearing at the base This full-height turnstiles designs with tailored stainless steel make its elegance-looking,durable and anti-oxidation .Considering unique requests,we built-in standard electrical interface to best-fit customer easier using magnetic card,barcode,ID&IC cards integrated .This system provides civilized,well-organized pass management . | ||
| 2. Technical Parameter: | ||
| 1 | Power | AC220C±10V, 50HZ |
| 2 | Commu.Distance. | ≤1200m |
| 3 | Passing Speed | 30 Persons/min(IC Card) |
| 4 | Motor | DC Brushless Motor, 0.5NM/24V(Fully Automatic) |
| 5 | Input Connection | +12V Level Signal or Pulse Wide>100ms |
| 6 | Communication Connection | RS485 Communication Interface |
| 7 | Material | SUS304 or Carbon Steel Powder Coating |
| 8 | Protection Grade | IP54 |
| 9 | Colour | SSB(US32D)- Stainless Steel Brushed / Powder Coating/ |
| 13 | Applications | Subway Station,Hoverport,Tourism,Exhibition,Swimming Hall,Residence Area |
| 3.Functions & Features: | ||
| 1) Automatically low noise mechanism core equipped,highly cost-performance 2) Sense positioning ,reducing mechanical impact make lifetime longer 3) Operating efficiency,1~2 seconds open & close 4)Lowest Noise : No matter in operating or outside control ,Noise control under 30db 5)Self-checking and Alarm warning for maintain 6)Resetting :System cancel authorized pass if passenger delayed pass 7)Anti following : prevent illegal passing 8)Anti clamp :The wings will stopped during in external block .the wings reset again after default delay 9)The rotary wings will be locked automatically if the system do not receive IR signal 10)Multi-passage for variety application demands ,Cover 99% needs on earth 11)Programmable signal separate control : pass time,pass speed etc. parameters 12)An anti-backup device prevents reverse rotation when the head has moved 60° from the rest position. 13)Compatible with RFID access control and charging system14)Customize Options : LED display,Voice guide ,Warning Lamps,Indicator Lights guide, Audible &Visible Alarm | ||
| 4.Assembling | ||
|
| ||

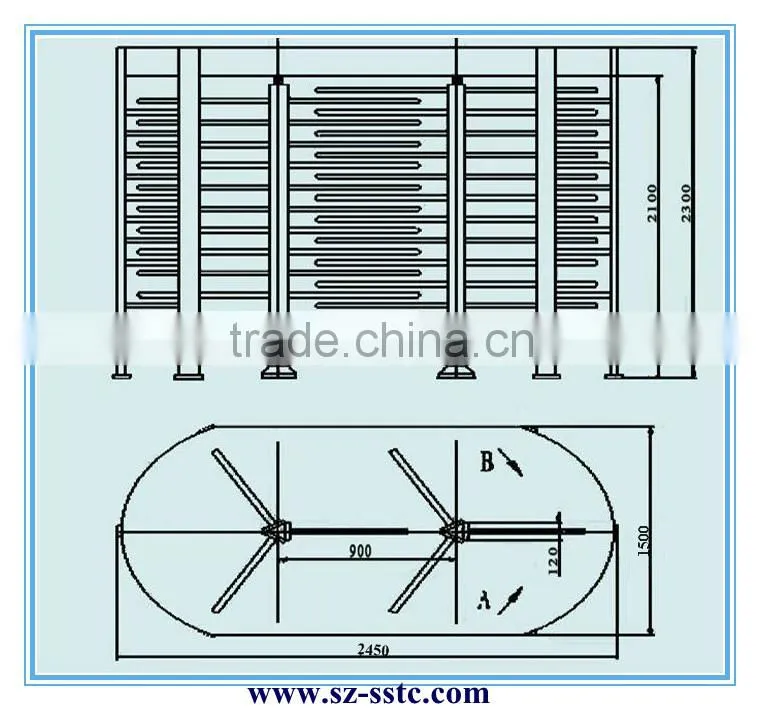

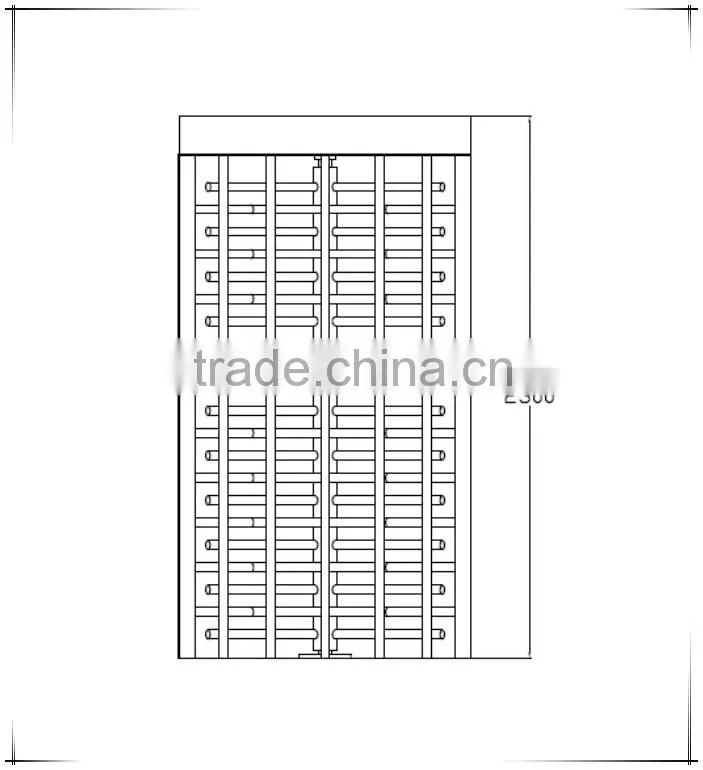

| 5.Dimension | ||
|
| ||

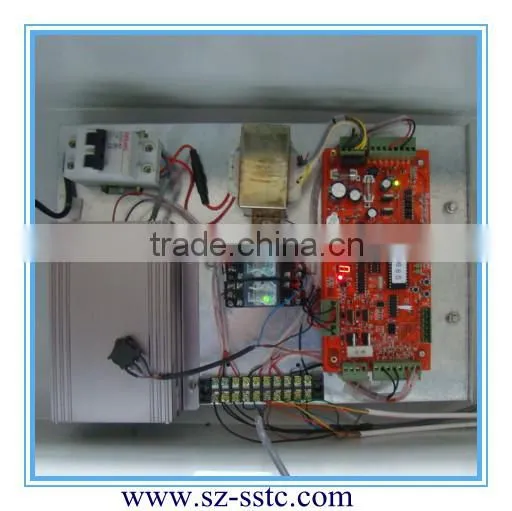

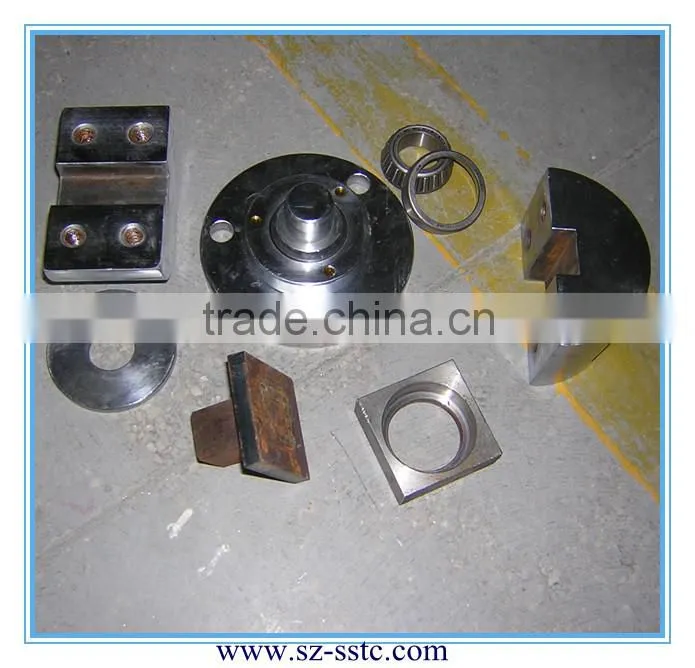

| 6.Details | ||
|
| ||

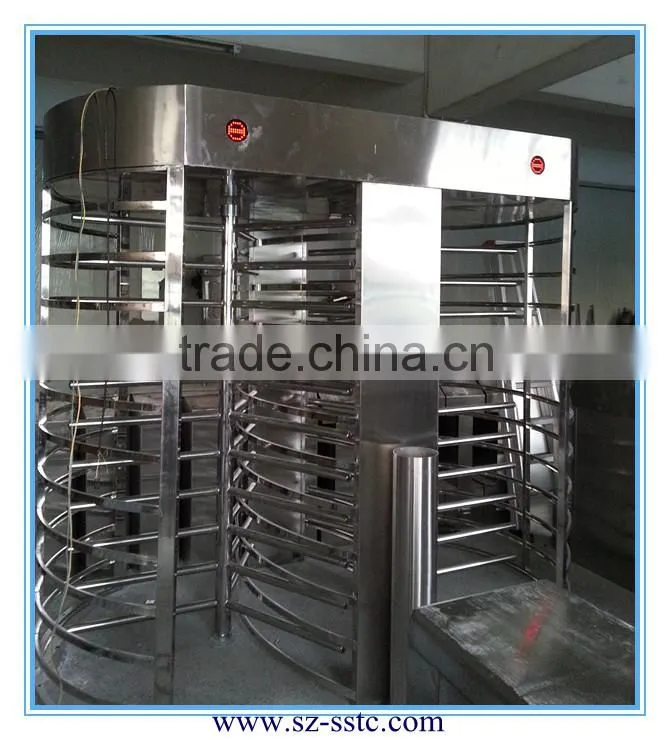

| 7.Product Show | ||
|
| ||

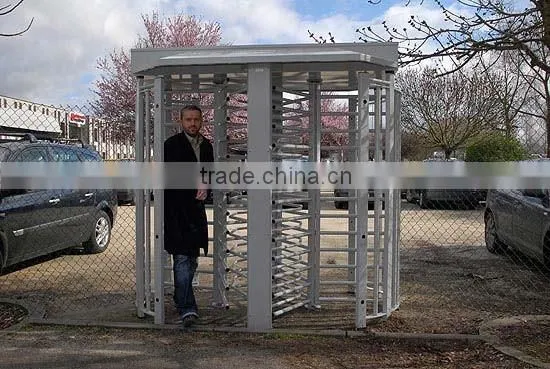

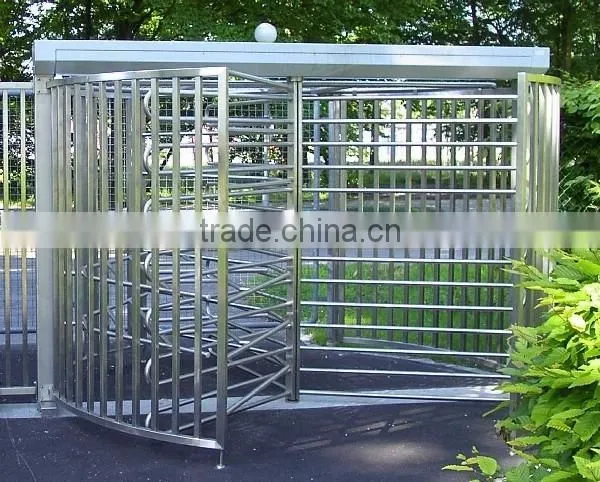

| 8.Application | ||
|
| ||
|
Packaging & Shipping
| ||
|
| ||
| 10.Products variety | ||
|
| ||
|
Our Services
| ||
| Customer services oriented. Reply your inquiries within 12 hours. Professional staffs answer any questions . Customized design ,OEM & ODM are available. Distributors or agents in special policies supports | ||
| 12.Our advantage | ||
| 1. 1.Any inquiries will be replied within 24hours.
2.Professional manufacturer. Welcome to visit our website: .
3.OEM/ODM available: 1) Silk print logo on the products 2)Customized design and color are available. 3) Any idea on the products, we can help you to design and produce.
4.High quality, fashion designs,reasonable&competitive price and fast lead time.
5.After-sale service: 1) All products will be strictly Quality Controlled in house before package. 2) All products will be well packed with wooden case before shipping. 3) All our products have 1 year warranty. The product will be free from maintenance during warranty period. 4) If there is any problem when installing the products,please feel free to contact me. We are here to support you. | ||
| 12.Contact Information | ||
|
| ||
