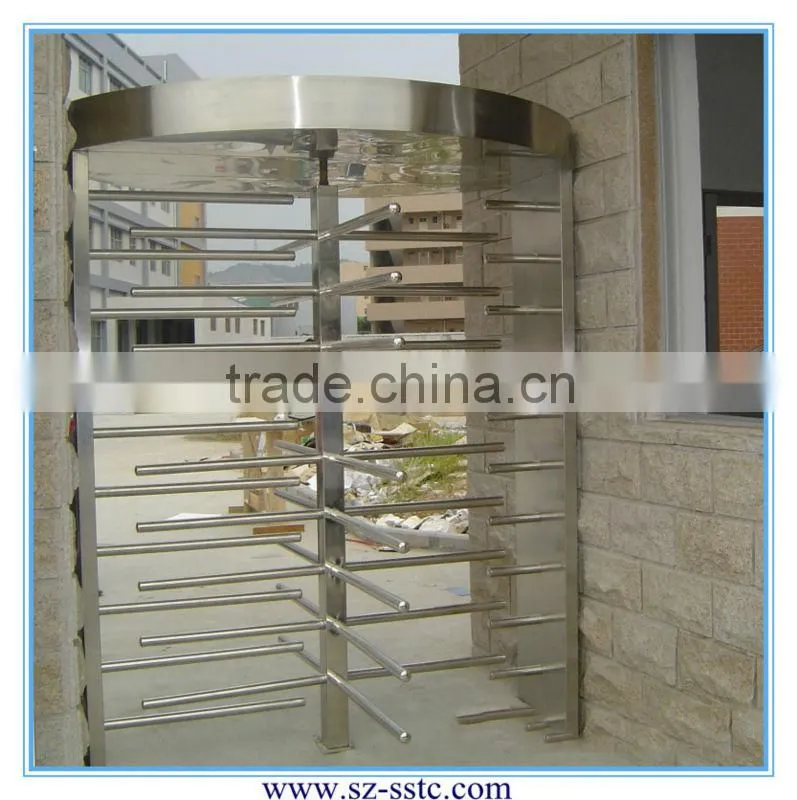

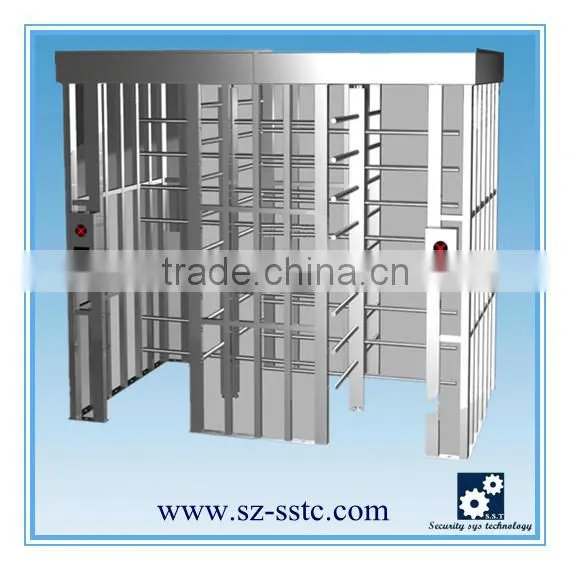

Automatic intelligent full height turnstile
Fingerprint Specification:
Fingerprint Capacity |
2,200 templates |
Transaction Capacity |
50,000 |
Hardware Platform |
ZEM500 |
Sensor |
ZK Optical Sensor |
Algorithm Version |
ZK Finger v9.0 |
Communication |
RS232/485, TCP/IP, USB-host |
Access Control Interface for |
3rd party electric lock, door sensor, exit button, alarm, Door Bell |
Standard Functions |
SMS,DLST, Webserver, Workcode, Anti-passback |
Optional Functions |
ID, Mifare, HID, Scheduled-Bell, 9 digit user ID, Self-Service Query, Automatic Status Switch, Soap, printer |
Wiegand Signal |
Input & Output |
Display |
B&W LCD Screen |
Power Supply |
12V DC |
Operating Temperature |
0 °C- 45 °C |
Operating Humidity |
20%-80% |
Dimension(W*H*D)mm |
140.5*116*43.5 |
Gross Weight |
0.85kg |
Brief description:
1,RFID ID/IC cards control
2,Customized optional
3,304 # stainless steel
4,Fingerprint available
5,Highest Protection
6.power supply voltage: AC220V ± 10 v, 50 hz
ing environment: - 15 °C ~ 60 °C
8.the relative humidity: less than 95%, no gel
9.Pass width: 600 mm or less
10.passing speed: 30 people/minutes (IC card)
11.motor: 20 w / 24 v
munication interface: RS485 interfac
13.Communication distance: 1200 meters or less
14.Work environment: Indoor/outdoor
15.Warranty:1 year
1. Descriptions:
This full-height turnstile designed with unique mechanical transmission,microprocessors
c and variety of ard-reading machines perfectly integrated together.Through equip various
reading&writing machines to realize intelligent pedestrian control and management.
This full-height turnstiles designs with tailored stainless steel make its
elegance-looking,durable and anti-oxidation .Considering unique requests,we built-in standard electrical interface to best-it customer easier using magnetic card,
barcode,ID&ICcards integrated .
This system provides civilized,well-organized pass management .
Considering Fire emergency happen ,the system built-in unique fire-control interface .this design make gate fast-swing and convenient peoples evacuated without power supply.
2.Technical Parameter:
1 |
Power |
AC220C±10V, 50HZ |
2 |
Commu.Distance. |
≤1200m |
3 |
Passing Speed |
30 Persons/min(IC Card) |
4 |
Motor |
DC Brushless Motor, 0.5NM/24V(Fully Automatic) |
5 |
Input Connection |
+12V Level Signal or Pulse Wide>100ms DC12V pulse, |
6 |
Communication Connection |
RS485 Communication Interface |
7 |
Material |
SUS304 or Carbon Steel Powder Coating |
8 |
Protection Grade |
IP54 |
9 |
Colour |
SSB(US32D)- Stainless Steel Brushed / Powder Coating/ |
10 |
Applications |

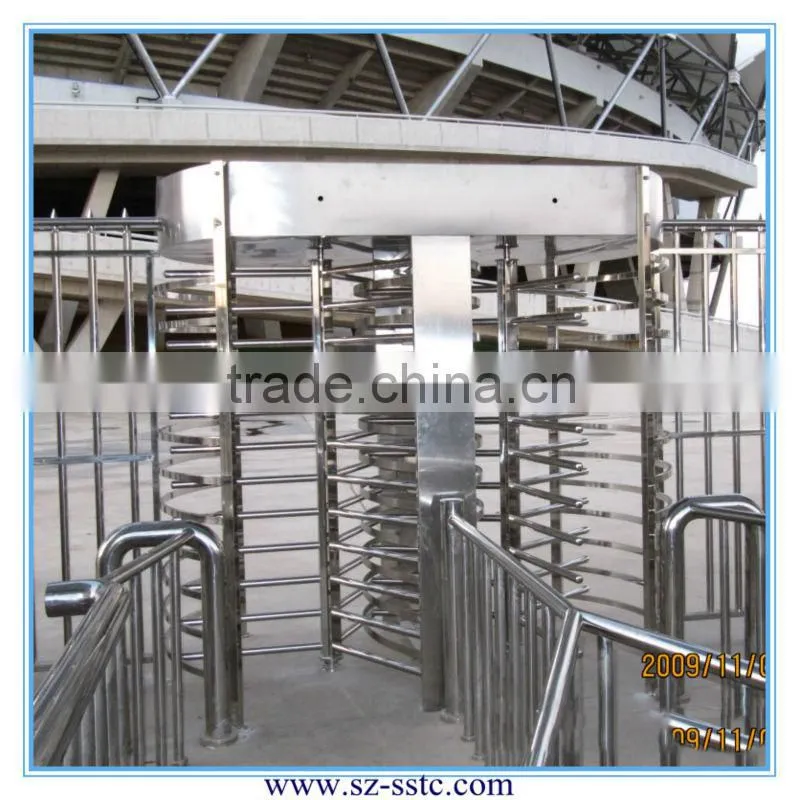

Subway Station,Hoverport,Tourism,Exhibition,Swimming Hall,Residence Area |
3.Functions & Features:

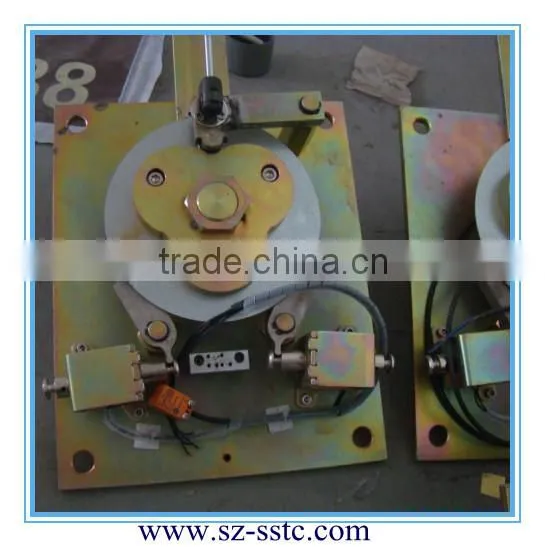

1. Automatically low noise mechanism core equipped,highly cost-performance
2. Sense positioning ,reducing mechanical impact make lifetime longer
3.Operating efficiency,1~2 seconds open & close
4.Lowest Noise : No matter in operating or outside control ,Noise control under 30db
5.Self-checking and Alarm warning for maintain
6.Resetting :System cancel authorized pass if passenger delayed pass
7.Anti following : prevent illegal passing
8.Anti clamp :The wings will stopped during in external block .the wings reset again after default delay
9.The rotary wings will be locked automatically if the system do not receive IR signal
10.Multi-passage for variety application demands ,Cover 99% needs on earth
11.Programmable signal separate control : pass time,pass speed etc. parameters
12.RS232/RS485 interface meet all kind of communications or WIRELESS connection
13.Compatible IC/ID card ,flexible couple
14.Long-distance management through COMPUTER
15.Customize Options : LED display,Voice guide ,Warning Lamps,Indicator Lights guide, Audible &Visible Alarm
Our services
1.Customer services oriented.
2.Reply your inquiries within 12 hours.
3.Professional staffs answer any questions .
4.Customized design ,OEM & ODM are available.
5.Distributors or agents in special policies supports

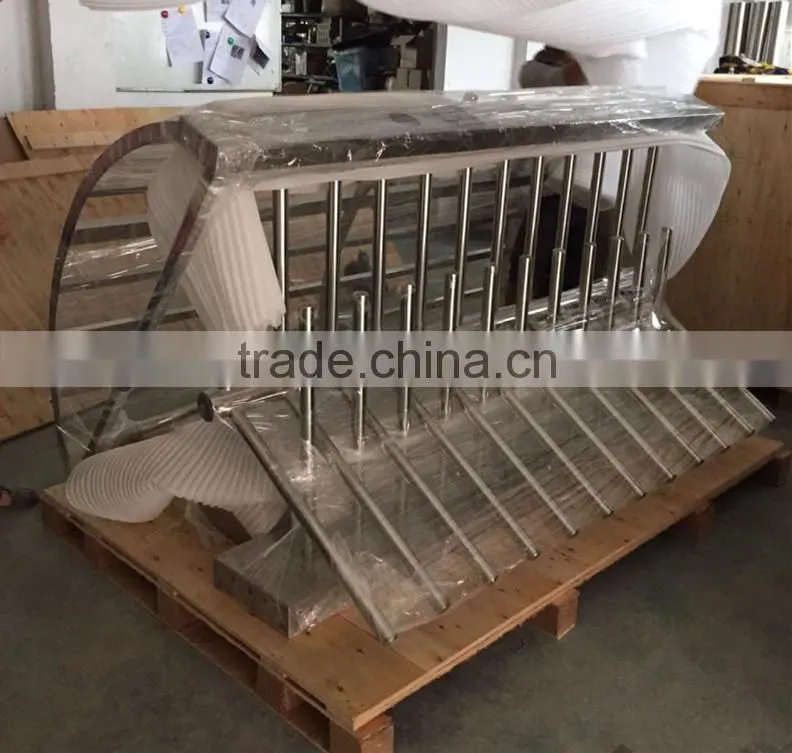

Packing terms:
Products Package in standard export carton
but we strongly suggest pack goods in wooden cage to protect the products.

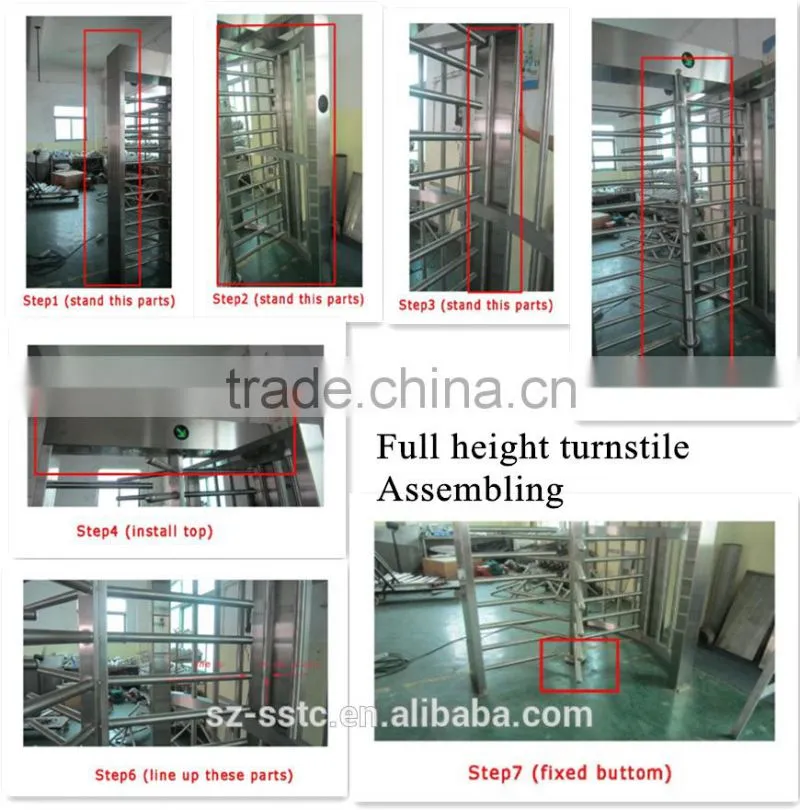

Assembling:
Communication information:
