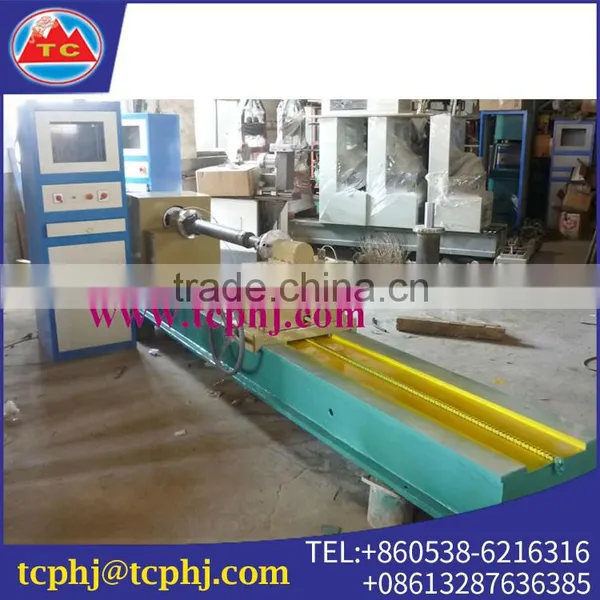

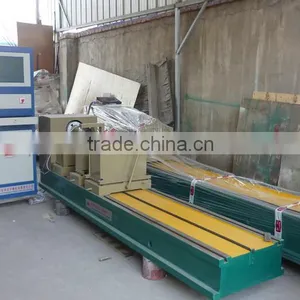

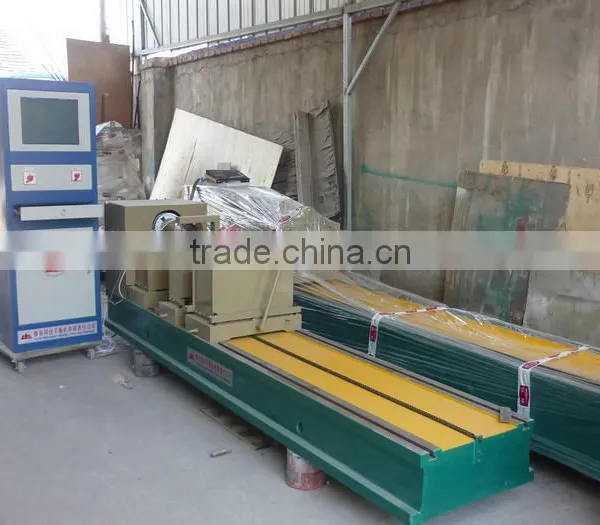

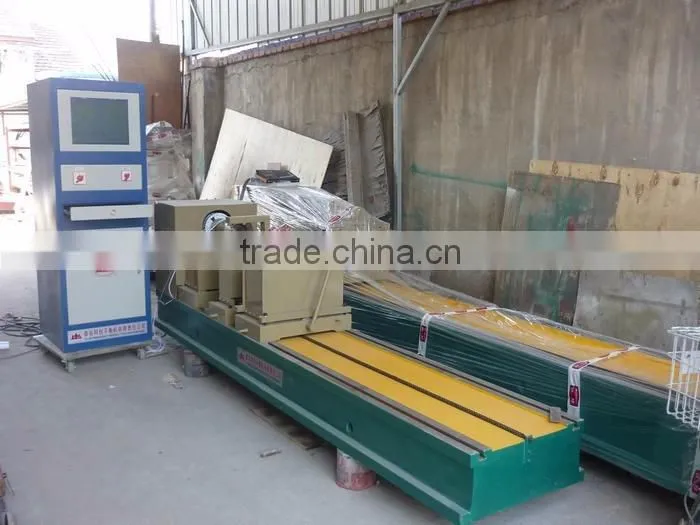

High Speed 2.2 KW Electronic Roots Blower Balancing Machine
- 100 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A
Product Details
Place of Origin: | Shandong, China | Brand Name: | TC | Model Number: | TC-IIIZ |
Power: | Electronic | Usage: | Other, balancing machine |
Product Description
High Speed 2.2 KW Electronic Roots Blower Balancing Machine
Item | Roots Blower Balancing Machine |
Model | TC-IIIZ |
Application | Balancing Machine |
Power | Electronic |
Brand | TC |
Country of Origin | China (Mainland), Shandong |
Max. Weight Working | 100 kgs |
Max. Length Working | 3150 mm |
Main Rotor Rotate Speed | 300-2500 RPM |
Motor Power | 2.2 KW |
Unbalance Reduction Ratio | ≥90% |
Min. Achievable Residual Unbalance | ≤1 g.mm/kg |
Length of Bed | 4000 mm |
Certificate | CE |
MOQ | 1 Set Roots Blower Balancing Machine |
- TC series (production) adopt IPC to process the data, the 17 AOC display, and show the immediate rotational speed, phase and imbalance value. It can record the nominal parameter for the rotor of 100 species. The lathe bed adopts the monoblock casting. The frame is 3.8 meters long.
- Use Microcomputer technology, it can real-time display the balance speed, and unbalance phase angle and the weight for unbalance. The vibrate sensor is adopt no-contact type, with a durable never wear.
Port | Qingdao |
Delivery Detail | Within 20 Days After Contract |
Packaging Details | Plywood Box |
Taian Tongchuang Balancing Machine Co.,Ltd is a high-tech enterprise in Taian. The company is special in developing and producing balancing machines and CNC machines. It has been gathering a number of experts who are accomplished in making balancing machines and CNC machines.
We have several decades of products of balancing machine, including six types of joint- drive, belt-drive, single-plane vertical, blower, crank-shaft and drive-shaft balancing machine. The testing unit equips with advanced electronics devices, intelligent-control software and color screen, so as to be able to realize man-machine conversation, parameter inputting and auto saving and printing test data. The software can be updated following the developing of products. High precision mechanical drive unit and beautiful appearance of the machine can satisfy variable users. Our products are widely used in many industries, for example, motor, blower, water-pump, automobile, spin, chemical, farming-machine, petroleum-machine, paper-making machine, printing machine etc.
Certification
F1: Are your company a trading one or a factory?
Q1: Factory,15 years focusing on test instruments field.
F2: After an order is placed, when to deliver?
Q2: Generally about 20 days after contract. Please be aware that our production lead times depend on specific items and item quantities.
F3: What about the warranty with after - sales services?
Q3: 12 months warranty. Besides,we can help you to repair your problem controller freely. What you need to do is to send us the controller. After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
F4: What about the services and product' quality?
Q4: Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate.
F5: Do we need to calibrate for the machine?
Q5: The machine only need one calibration and it finished calibration before leaving the factory, because no periodic calibration needed, you don’t need to calibrate again.
