Specifications
1.SUS3042. IP54
3. LED Counter, Direction indicator
4. Run stably without mechanical impact
Automatic Fingerprint Flap Barrier Gate/ Flap Type Security Barrier Gate
SST-KBT263
1. advantages
(1) Installed self-checking functions, easy for user maintain and control.
(2) Highly sensitive alarm when un-authorized access.
(3) Anti-impact: use friendly designs for protecting passager wrong operations.
(4) Anti-following: highly sensitive detection
(5) Operate stably and smooth, low noise, no mechanical shock.
2. Technical Parameters
1 |
Power |
AC220C±10V,50HZ |
2 |
Operating Temperature |
-45°C-60°C |
3 |
Relative Humidity |
≤95%, No Condensation |
4 |
Access Width |
≤700mm |
5 |
Passing Speed |
50persons/min(IC Card) |
6 |
Motor |
140W/24V |
7 |
Motor Operation Speed |
1600R/Min |
8 |
Communication Distance |
≤1200M |
9 |
Input Connection |
+12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms |
10 |
Communication Connection |
RS485 Communication Module Standard. |
11 |
Material |
SUS304,thickness is no less than 1.5mm |
12 |
Running Life |
5--8 Million(Continuous Opening and Closing Operation) |
13 |
Protection Grade |
IP54 |
14 |
Colour |
SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional), or other Colour you like |
15 |
Operation Place |
Subway Station, Hoverport, Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control |
3. Functions& Features
(1) Directional VFD Optical Signals----Green Arrow or Red Cross signage
(2) Only one person can pass with one card.
(3) Collect the break-in information.
(4) Installed in indoor or outdoor
(5) Well lightning and grounding
(6) Multi-working mode----Forbidden,Controlled or Free Passing optional
(7) Easily integrated with any type of readers---such as Magnetic card,Barcode card,RFID Card and so on
(8) Card-swiping memory function
(9) Statistics collection automatically
(10) Manual release when meet the outside push
(11) Always open or close mode. In an emergency,the passage will be freely pass automatically
(12) Bi-directional passing or single way passing.
(13) Self-inspection and alarm.
(14) Can program the running status online by setting the built-in keys.
(15) LED Counter, Direction indicator.

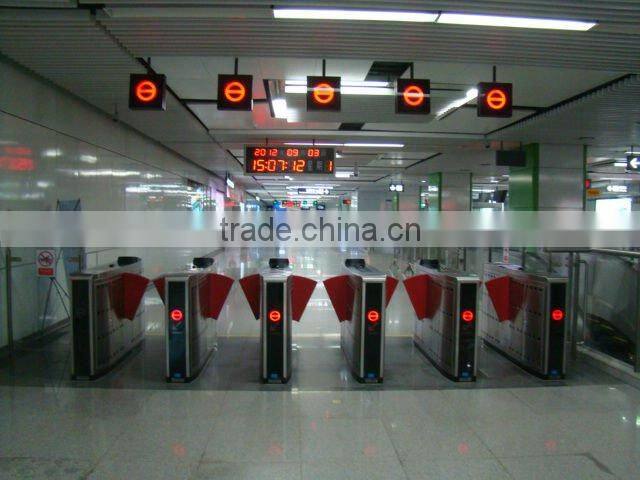

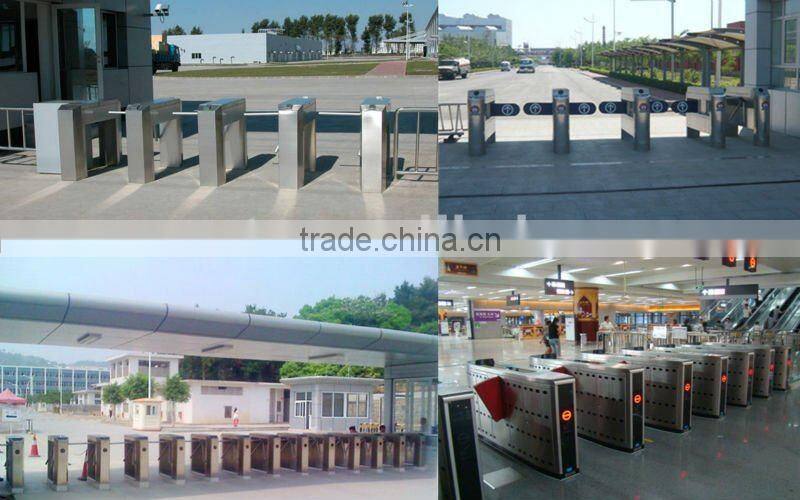

4. Application pictures

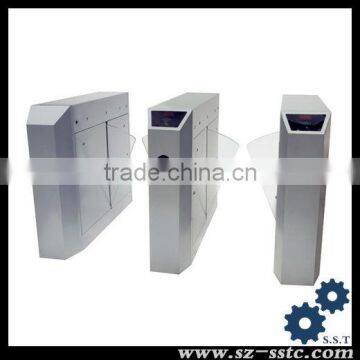

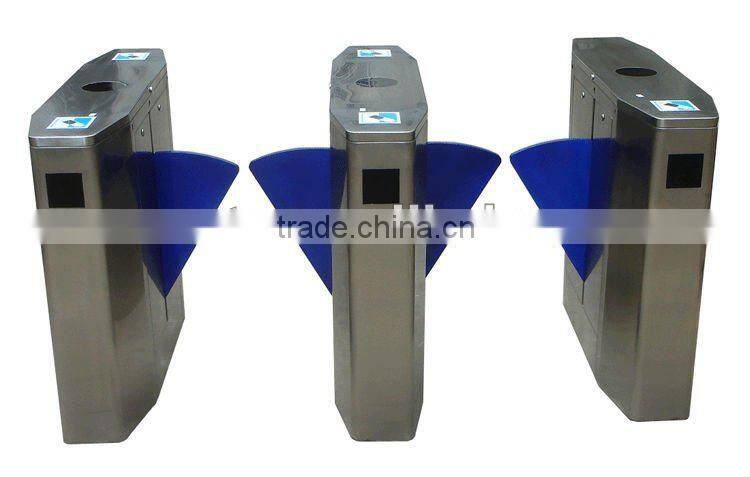

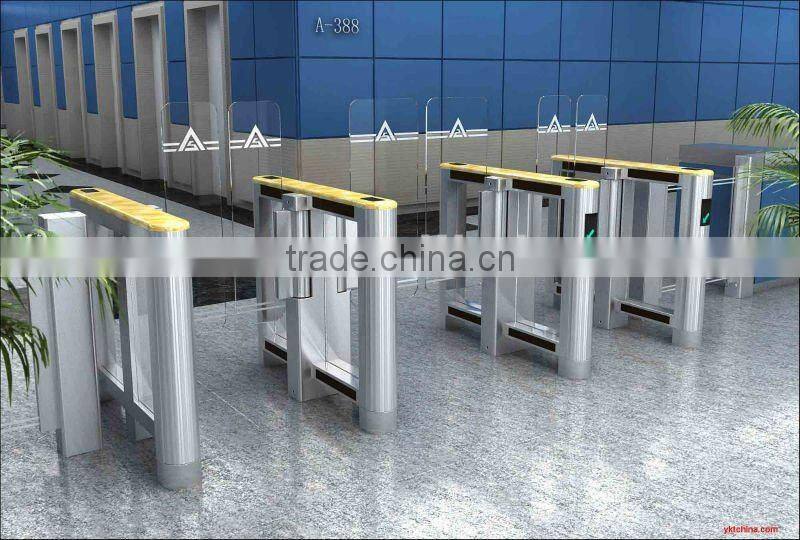

5. More pictures for Flap Turnstile Gate
Our service
Reply your inquiry in 24 working hours.
Professional staff answer your questions in English.
Customized design is available,we can accept OEM & ODM.
Unique problems can be made solution by our professional engineers.
Special discount and protection of our distributors or agents in their area.
Welcome you to viste our factory ^ ^
Thanks for your view, if any questions you can feel free to contact us.
