Specifications
Mini skid Loader, Compact StructureAgile Movement, Easy control
Flexible Operation
High Efficient Work
Multifunction

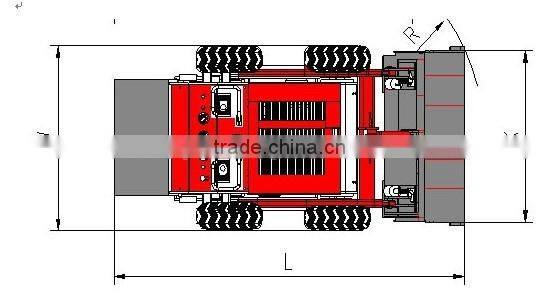

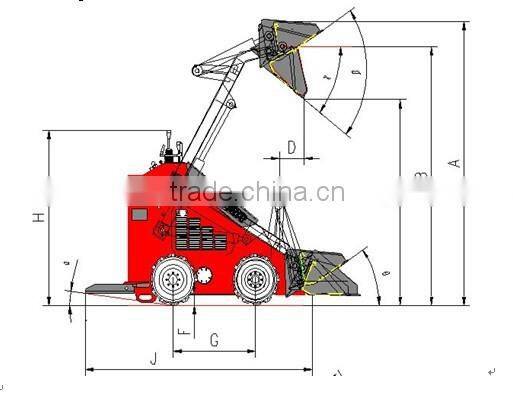

Item |
Metric |
Max working weight(A) |
2115mm |
Max pin height(B) |
1856mm |
Max dump height(C) |
1460mm |
The highest point discharge distance(D) |
388mm |
Bucket swing angle() |
550 |
Bucket unloading angle |
300 |
Opening-closing angle |
250 |
Angle of departure |
80 |
Total height(H) |
1205mm |
The height from the ground(F) |
90mm |
Wheelbase(G) |
636mm |
No bucket legth(J) |
1752mm |
Total width(K) |
1033mm |
Bucket width(K) |
980mm |
Total length(L)(with bucket) |
2206mm |
Turing radius |
1307mm |
Main performance parameters:
Engine |
Rated powder(KW) |
17.15KW(23HP) |
||
Rotating speed(rpm) |
3600 |
|||
Hydraulic system |
Hydraulic pressure(Mpa) |
17 |
||
Cycle time(s) |
Raise |
Dump |
Lower |
|
4.27 |
1.34 |
3.31 |
||
Performance parameters |
Load weight(kg) |
200 |
||
Bucket capacity(M3) |
0.15 |
|||
Max lifting power(kg) |
375 |
|||
Speed(km/h) |
0-5.5 |
|||
Operating weight(kgs) |
890 |
|||
Attachments:
Various accessories can be mounted on it ,like backhoe, digger, fork,sweeper, dump bucket, tiller, lawn mower, angle blade, breaker,4 in 1 bucket,snow blower, leveler, mixer, lawn aerator,trench filler, trencher,grapple,auger,stonr bucket, auger levers,standard bucket,trailer system, and so on.
Easy to Maintanence:
Upper cover&back plate can be opened and dismounted,easily replace and maintain parts, like engine,pump,motor,etc

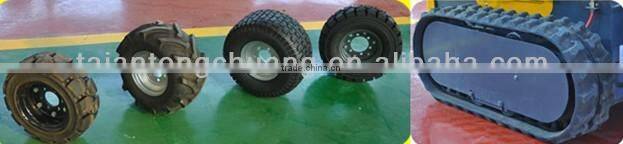

Wheeled and tracked optional
Applications:
Small width, the loader can also work in narrow space, such as in door, duckey, hennery, cave, alley,land sorting, garden,ground care, snow removal, mining, recycling,landscaping, construction, companies,property maintenace,dairy industry,farm, Livestock farm , waste(animal waste, municipal solid waste, life garbage) removal, ditching, truck loading ,tree planting and so on.
