RFID full automated smart parking system
parking access control system
1.One-stop Car parking Products Integrated
Car Parking System Packaged List As Below:
1)Monitoring Cameras -------------2pcs
2)Vertical Card Sender/reader---2pcs
3)Road Barriers------------------- --2pcs
4)Control House---------------------1pcs(NOT INCLUDED)
5)Vehicle Detectors-------- --------3pcs/4pcs
2.Description:
SST's Packaged one-stop Parking management system adopt stable and mature data platform, apply to Windows2000Win XP OS and SQL Server 2000 database etc., parking management system is used to control and monitor the information like the vehicle status of Entry and Exit,status of barrier gate and so on. System designs of three-layer CS architecture,the module of each layer can be updated and replaced separately, which will effectively reduce the cost and simplify the management. At the same time, data processing can be transferred from client to application server and database server, accommodate large-scale and complicated application requirement. Parking management system has powerful data processing function. Various control parameters for parking management can be set, such as ID card detecting,ID card extend,Picture contrast etc. User can inquiry the vehicle in the parking lot, different reports can be generated and printed from the system, so as to manage the parking lot effectively.
3.Technical Parameters:
Road Barrier Size |
1300H×440W×340D(mm) |
Housing material |
Steel and Tempered glass |
Color |
Orange/ blue |
ID card read/write time |
≤0.2S |
ID card read/write distance |
≤10cm |
Radio-frequency card read/write time |
≤0.2S |
Radio-frequency card read/write distance |
≤10cm |
Paper outing speed |
≤2S |
Mode of communication |
Base RS-485, Rear TCP/IP |
Communication transmission distance |
1200m(RS-485) |
Offline storage capacity |
30000 pcs (extendible) |
Card capacity |
50000 pcs (extendible) |
Blacklist capacity |
10000 pcs (extendible) |
Data transmission speed |
4800bps/100M |
Working Temperature |
minors 30°C to 70 °C |
Working environments |
indoor, outdoor |
Relative humidity |
≤95% coagulation free |
4.System function:
1) Multiple network modes to realize remote data and image transmission;
2) 32-bit ARM dual-core processing technology;
3) Easy to install, debug and maintain;
4) IC, ID, RFID available in one control board
5) Nesting function available;
6) Extendible long distance read function;
7) Off-line working available;
8) Extendible plate-number identification and auto-printing;
9) Multiple charging mode, charging standards can be defined by the user;
10) Automatic card dispenser;
11) Voice Notice Available.
12) Flexible system configuration, can be extended to multi-level parking lot manage system;
13) waterproof, dustproof and rustproof case
14) Modular structure, fully integration

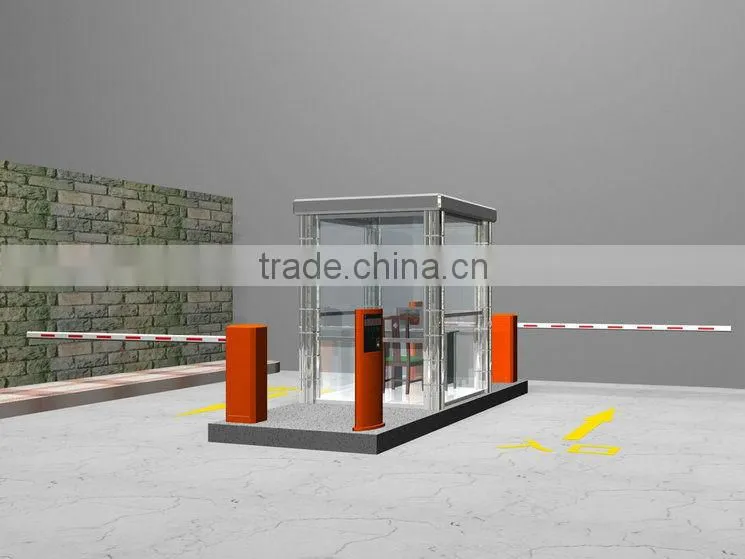

Analog Image:
Application:

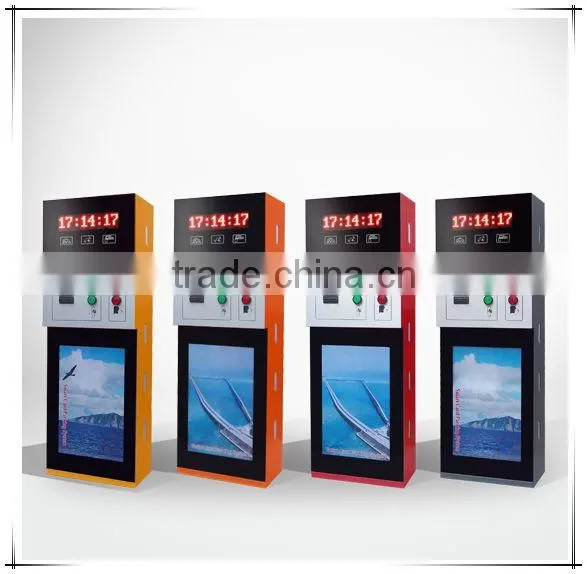

Variety:
Package :

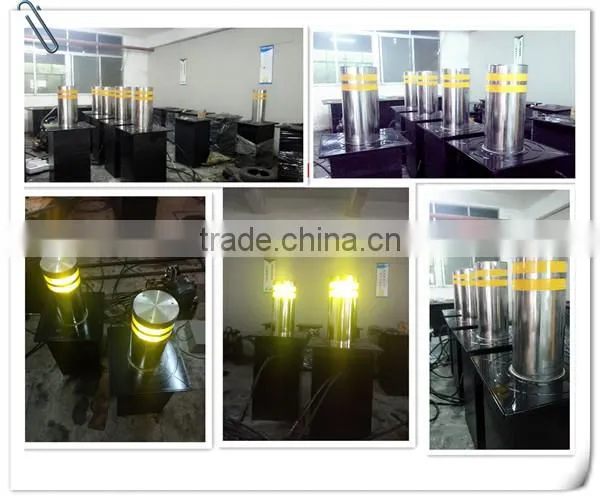

Hot selling products:
Our service:
1.Any inquiries will be replied within 24hours.
2.Professional manufacturer. Welcome to visit our website: .
3.OEM/ODM available:
1) Silk print logo on the products
2)Customized design and color are available.
3) Any idea on the products, we can help you to design and produce.
4.High quality, fashion designs,reasonable&competitive price and fast lead time.
5.After-sale service:
1) All products will be strictly Quality Controlled in house before package.
2) All products will be well packed with wooden case before shipping.
3) All our products have 1 year warranty. The product will be free
from maintenance during warranty period.
4) If there is any problem when installing the products,please feel
free to contact me. We are here to support you.
6.Fast delivery
Sample order in stock,5-7days for bulk production
7. Payment
We can accept T/T,Western Union,Paypal&L/C
8.Shipping
As our products are big volume,and heavy duty, we suggest you to ship by sea.
You can also choose your own shipping forwarder
Thanks for your attention.If you have any interest in our products,please contact with me by following INFORMATION:
Skype:szsstc1
Tel:86-18925270403
