Preiswert cnc high-precision oxyacetylene flame/plasma cutting machine

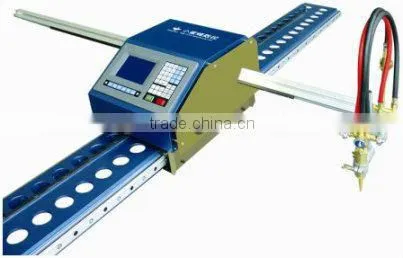

Portable Cnc Plasma Cutting Machine TC-II

The machine can cut the vast majority of materials and is convenient to use,contacted with a printer.Also its maintenance is economical and easy.The cutting machine is equipped with a universal computer which can draw,program and control the cutting procedure.Moreover,users are able to buy it without that computer,then the users must use their own computer.

Main features:
1.Gapless gear,rack gear,step driver.
2. linear guide rail coming from Taiwan, high precision,stable running.
3. Bottom plate consist of welded square tube and steel flat, high precision base level,anti-rust and durability.
4. Beam being made of aluminium alloy,light weight,no deformation.
5. Self-developed CNC system with top stability and antijamming capability,English operation interface,can change CAD graph into cutting code.Prepositive USB Interface,Non-seal graph process,supports Common Cutting.
6. Beam:linear guide,reduce wear,being able to assure cutting accuracy.

Technical Indexes:
1. Cutting shape:being able to cut any flat shape steel-metal part composed by line&arc.
2. Cutting precision:national standard JB/T10045.3-99.
3. Effective cutting width:0~2000mm.
4. Effective cutting length:0~3500mm.
5. Drive mode:single drive.

6. Torch:standard 1 set(flame/plasma), torch quantity can be tailored.
7. Cutting thickness:flame:maximum:200mm,plasma: depends on plasma source.
8. Ignition&THC:autoignition,Electric torch height controller.
9. CNC syetem:TATC self-developed, easy-to-use, reliable and superior performance.
10. NC Programming:full-automatic graphical programming software based on AutoCAD.
11. Cutting gas:oxygen+acetylene/propane.

12. File transfer:cable, wireless network or USB.

13. Running control mode:computer control,handle-held wireless remote controller.

14. Input voltage:220v/380v,110v/460 universal.

15. Option:for flame cutting ,autoignition and capacitance height control;

                   for plasma cutting,hypertherm PMX1000/1250.
