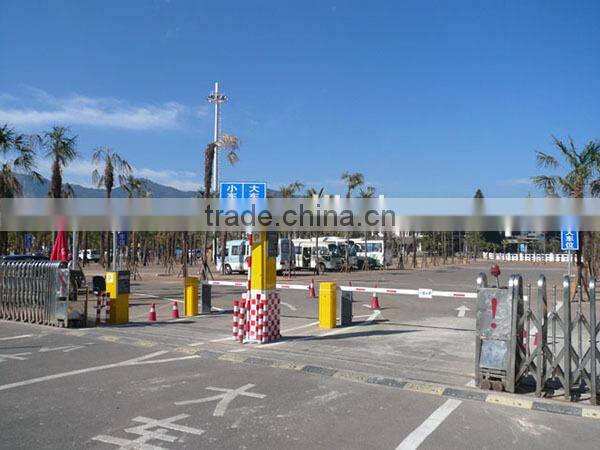

Product Application
SST's Packaged onestop Parking management system adopt stable and mature data platform, apply to Windows2000Win XP OS and
SQL Server 2000 database etc., parking management system is used to control and monitor the information like the
vehicle status of Entry and Exit,status of barrier gate and so on. System designs of three-layer CS architecture,the module of each layer can be updated and replaced separately, which will effectively reduce the cost and simplify the management. At the same time, data processing can be transferred from client to application server and database server, accommodate large-scale and complicated application requirement. Parking management system has powerful data processing function.
Various control parameters for parking management can be set, such as ID card detecting,ID card extend,Picture
contrast etc. User can inquiry the vehicle in the parking lot, different reports can be generated and printed from the
system, so as to manage the parking lot effectively.
System Function:
1) Multiple network modes to realize remote data and image transmission;
2) 32-bit ARM dual-core processing technology;
3) Easy to install, debug and maintain;
4) IC, ID, bar code, RFID available in one control board
5) Nesting function available;
6) Extendible long distance read function;
7) Off-line working available;
8) Extendible plate-number identification and auto-printing;
9) Multiple charging mode, charging standards can be defined by the user;

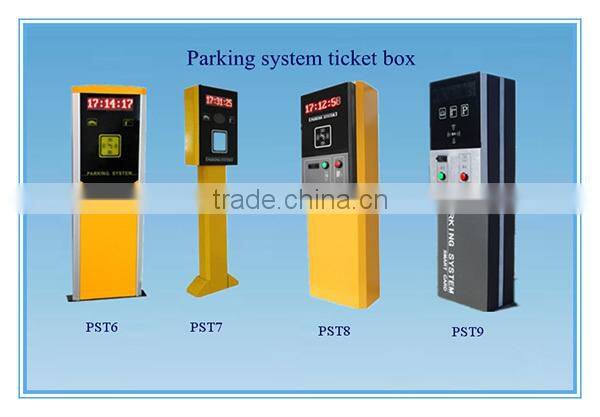

10) Automatic card dispenser;
11) Voice Notice Available.
12) Flexible system configuration, can be extended to multi-level parking lot manage system;
13) waterproof, dustproof and rustproof case
14) Modular structure, fully integration

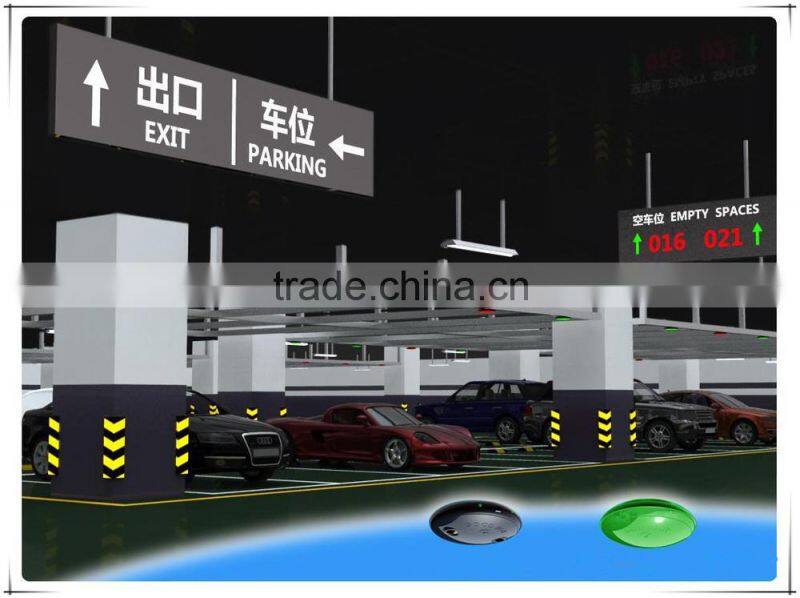

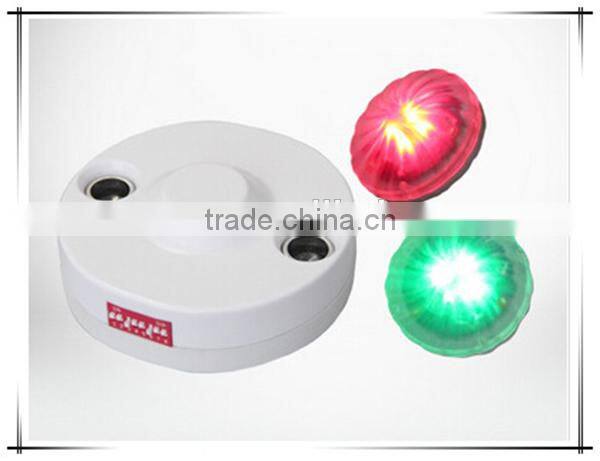

Ultrasonic Sensor
1.Adjustable Detect Range: 1-3.5m
2.High Anti-Disturbance capability to
avoid wrong judgment.
3.Using ultrasonic radar working principle
4.Operating Voltage: DC12V/200mA
5.Outline dimension：diameter 100*23（mm）
6.Weight：115g

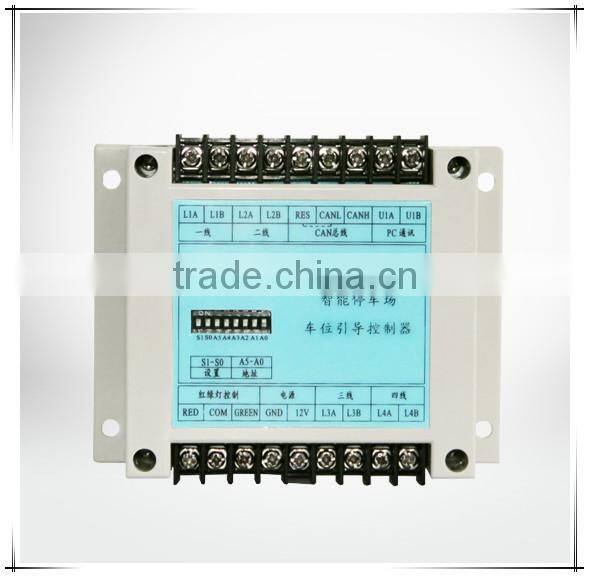

Zone Control Unit
1.Voltage:12V DC
2.Communication: RS-485 BUS and CAN
BUS(RS-485 for ultrasonic sensor and LED display)
3,32bits ARM microprocessor and embedded operating system
4. Off-line work, can be cut off with
computer and work independently
5.GPRS-DTU module can be connected
6.Each RS485 bus can manage up to 16
parking spaces, 8 spaces guidance screen
7.Offline records can be stored up to 60 days

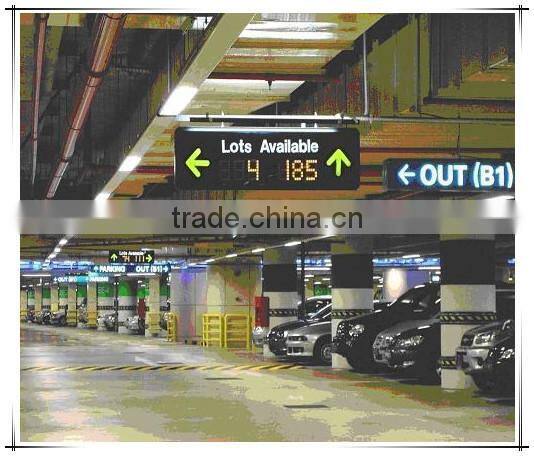

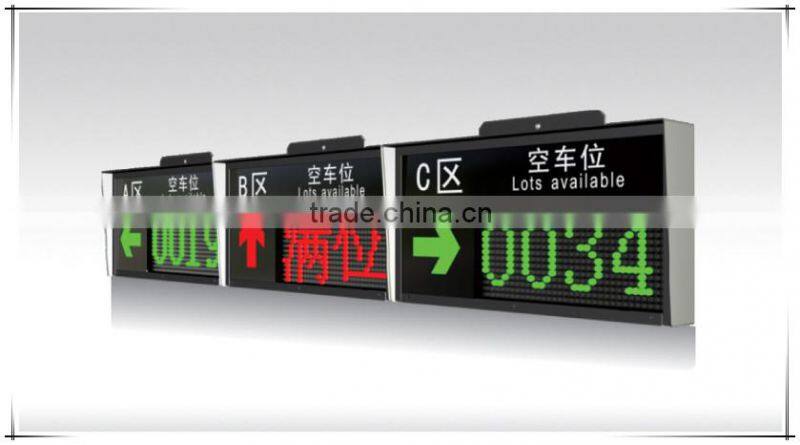

Indoor LED Duidance Display
1.Voltage:220V AC
2.Communication port: RS-485
3.64 bits Correspondence Address
4.Communication Baud rate: 9600bits / S
5.Dimension: 450mm x 340mm x 100mm L*H*W
6."FULL" status Capable of displaying
arrow with 6 directions to choose from

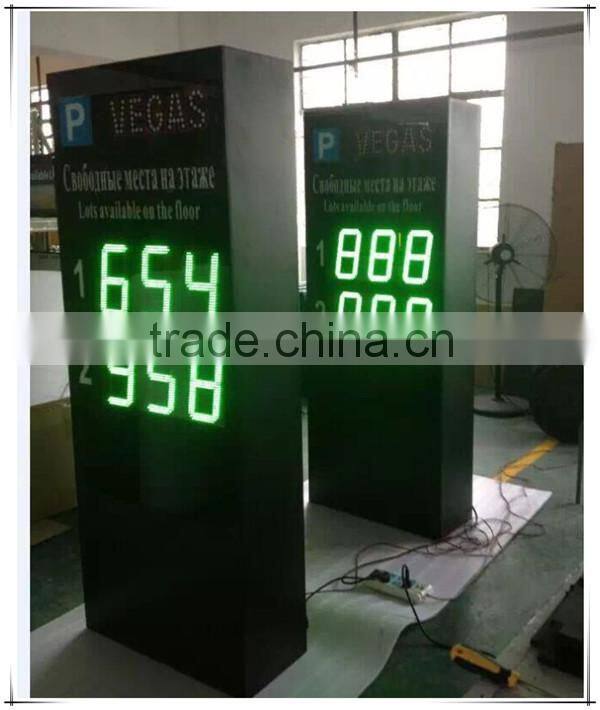

Outdoor LED Duidance Display
1.Voltage:220V AC
2.Communication port: RS-485
1. Any inquiries will be replied within 24 hours.
2. Professional manufacturer. Welcome to visit our website: .
3. OEM/ ODM available:
1) Silk print logo on the products
2) Customized design and color are available.
3) Any idea on the products, we can help you to design and produce.
4. High quality, fashion designs,reasonable&competitive price and fast lead time.
5. After-sale service:
1) All products will be strictly Quality Controlled in house before package.
2) All products will be well packed with wooden case before shipping
3) All our products have 1 year warranty.
The product will be free from maintenance during warranty period.
4) If there is any problem when installing the products,please feel free to contact me.
We are here to support you.
6. Fast delivery
Sample order in stock, 5-7 days for bulk production
7. Payment
We can accept T/T, Western Union, Paypal& L/C
8. Shipping
As our products are big volume,and heavy duty, we suggest you to ship by sea.
You can also choose your own shipping forwarder.
Shenzhen Security System Technology Co. ,Ltd ( S. S. T ) is one of the leading high -tech manufacturers of access control system in Shenzhen China. Our company is a professional manufacturer with good organization.
Nowadays , S.S.T has become the strongest supplier of the access control equipment such as tripod turnstile, full height turnstile, flap barrier, automatic swing gate, parking barrier, parking management system, road blocker and bollard etc.
Our products have been tested in locations such as airports, ports, customs, office.building, government building, banks, penitentiaries, power stations military sites, stores, embassies, warehouse and all areas where pedestrian access control and parking access control products are needed.
We have the business relationship with customers not only from Chinese market, but also from Southeast Asia, the Middle East, Europe, Africa, South America and North America market and we have enjoyed a good reputation among our.
