Vertical Flywheel Balancing Machine(YLD-42A)

Vertical Flywheel Balancing Machine(YLD-42A) thumbnail-1
Vertical Flywheel Balancing Machine(YLD-42A) photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
TC
Model Number:
YLD-42A
Contact Supplier Request Quote Chat Now
Taian Tongchuang Balancing Machine LLC.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name TC
Model Number YLD-42A
Power Electronic
Usage Balancing Machine

Specifications

balancing machine
flywheel balancing machine
vertical balancing machine
CE certified
computer display

Features:

YLD series vertical balancing machine fits for balancing parts with disc shape such as fan blade, pressure plate, flywheel, brake disc, ring blower, impeller, arrester, saw blade, pulley. Adopt industrial computer in measuring system. Screen displays rotate speed, amount and angle of unbalance showing in “g” directly. Easy operation, straight display, adopt electro magnetic sensor, featured in reliable performance and excellent stability.



Warranty period:

Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.





Technical Data:

Model

Workpiece weight

(Kg )

Workpiece diameter

(mm)

Balancing rotation speed

(r/min)

Min.achievable residual unbalance

(Gmm/kg)

Unbalance reduction

Ratio (%)

Motor power

(kw)

Adjusting speed form

YLD-42A

3-42

800

250-2500

≤ 3

≥90

1.5

Variable frequency motor

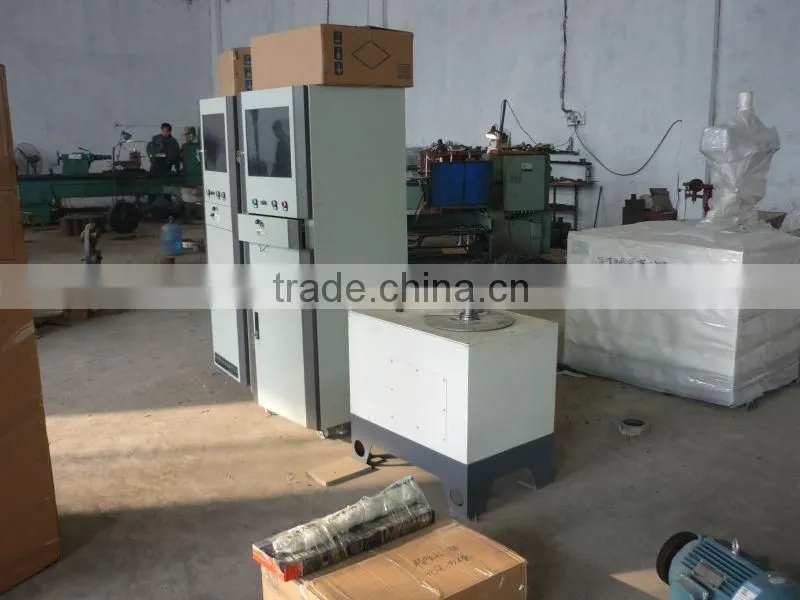

vertical flywheel balancing machine(YLD-42A)
