China supply fast cutting equipment metal cutting machine YAG 600w
YAG laser machine working video for your reference:
https://youtu.be/igcQ6KHG35o
Advantages of metal cutting machine
The product adpots YAG solid-state laser optical system,The optical mode is scientific and stable,Anyway,the cut kerfs are small and precision.
1.It adopts dual rails positioning system and ball screw driven system,The machine has the advantages of fast speed,high precision,moving smoothly ,dynamic performance and long life.
2.X-axis and Y-axis are both equipped with limited switches that used to prevent the crash caused by the over travel,Anyway,there are polyurethane anti-collision blocks on the machine in case of the failure of the limited switches,the limited switches and the blocks guaranteed the operating security.
Technical parameters of metal cutting machine
Model NO. |
|
FLDJ-YAG600W. YAG 850w |
Travel Method |
|
stationary table , Gantry style |
Moving system |
|
Servo motor drive ball screw |
Guide |
|
linear guide |
Control Method |
|
X, Y,Z axis motorized controlled |
Travel Amount |
X-axis |
1300mm 1300mm 1500mm |
|
Y-axis |
900mm 2500mm 3048mm |
|
Z-axis |
125mm |
Acceleration Rate |
X-axis |
2500mm/s2 |
|
Y-axis |
2000mm/s2 |
Axis speed |
X-axis |
800mm/s = 48m/min |
|
Y-axis |
600mm/s = 36m/min |
Maximum Worksheet Loading Capacity |
|
700kg |
Machine weight |
|
2100kg 2800kg 3000kg |
Repeatability Positioning Accuracy |
|
0.01mm |
Drive Feed Method |
|
position control / AC servo motor |
Machine Table Height |
|
900mm |

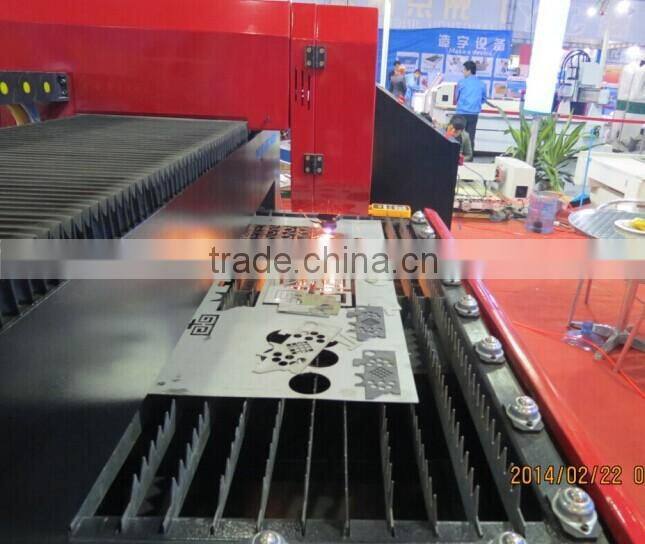

Cutting bed |
|
Blade support -Sawtooth metal strip bed |
Focus type |
|
Automatic following focus |
Power Supply ( only for machine) |
|
380V 50/60HZ |
Power consumption |
|
30KW |
LASER OSCILLATOR | ||
Laser Oscillation Method |
|
Lamp pump YAG |
Laser power |
|
650W |
Stability |
|
±3% |
Frequency |
|
1-300HZ |
Wavelength |
|
1064nm |
Single pulse energy |
|
125J |
Pulse width |
|
0.3-10ms |
Cooling mode |
|
Close loop laser chiller cooling |
CNC CONTROL UNIT | ||
CNC Unit |
|
Yaskawa AC servo motor |
CNC Control Method |
|
semi-close loop control |
Control Functions |
|
X, Y controlled (simultaneously controlled) |
Input Method |
|
USB, Ethernet, memory stick |
Least Input Increment |
|
0.002mm |
Minimum Position detection Accuracy |
|
0.002mm |
Program Storage Capacity |
|
128M flash memory in machine |
Operating Modes |
|
Windows xp support |
SOFTWARE | ||
Cutting software PHILICAM self-developed software | ||
Nesting software PHILICAM Laser self-developed software | ||
Support format DXF,DWG,PLT,AI,DST,GLD | ||

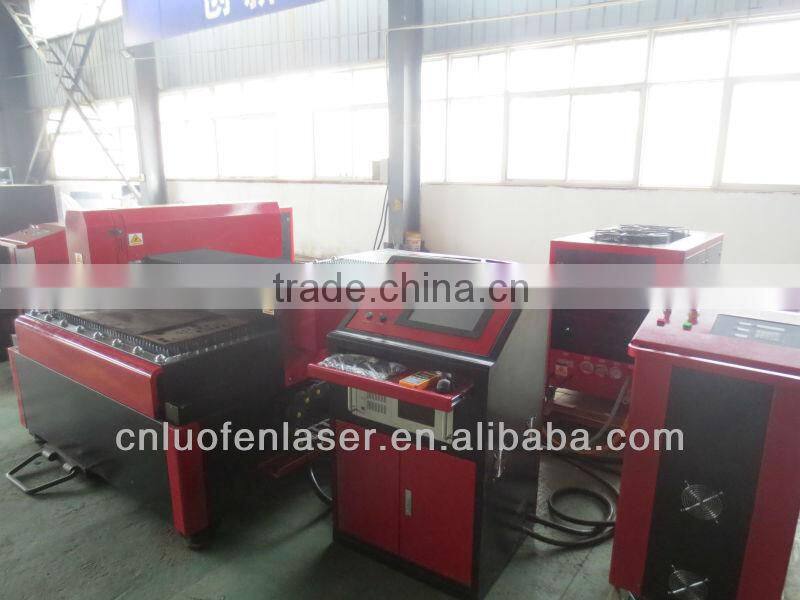

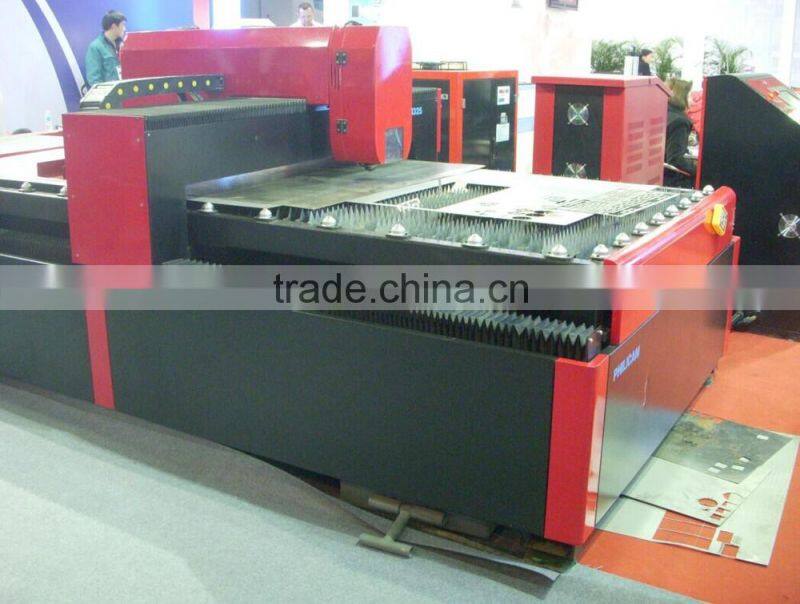

Product detail of metal cutting machine
1. Welded by thick steel panel. Stable and good deformation resistance capability. Aging process technology ensures long-last duration and accuracy of the machine
2. Equipped with medium power YAG lamp pump generator. Cutting any graphics within the size of 1500mmX3000mm (or 1300mmX2500mm). Suitable for large-scale thin metal sheet cutting and processing is fast and precise.
3. Auto following focus device realizes dynamic focus continuous cutting on materials with different thickness. Conveyor rewind device realizes convenient material collecting.
4. Working table with universal wheel and pneumatic loading device (optional) for loading and unloading easily, saving labor power and avoiding material scratched, ensuring good cutting quality.

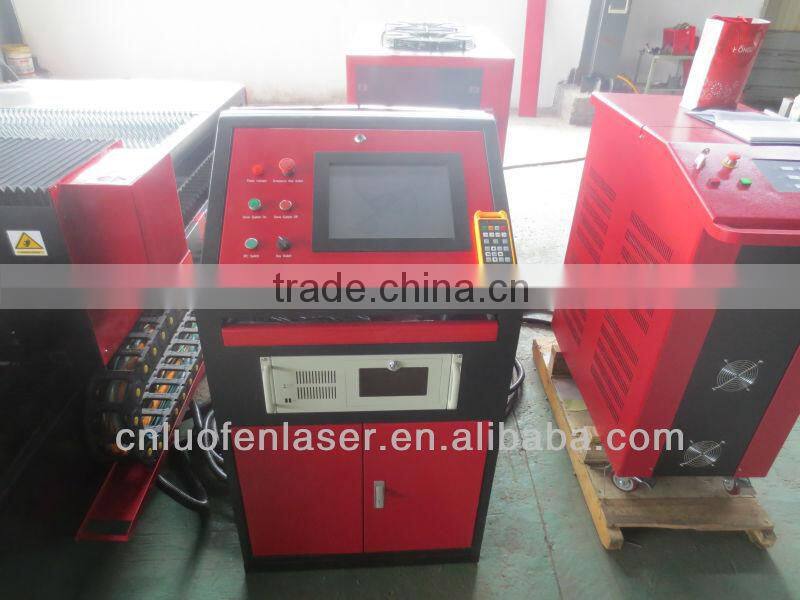

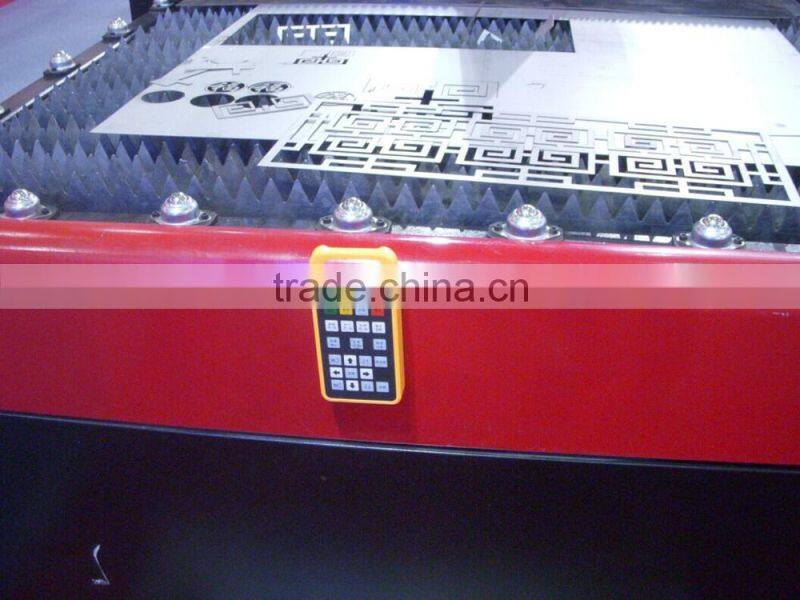

5. Separate digitalized operated table and movable remote controller is convenient for operation. There are several input modes of USB flash disk data copy, USB cable data transmission, network connections and other data transmission methods. One computer can control several laser machines, saving cost.
6. Standard collocation of automatic nesting software (it can do nesting on remaining materials) and optional collocation of high speed pattern copying, auto-recognition cutting, polishing & painting and metal etching, saving materials and improving working efficiency.

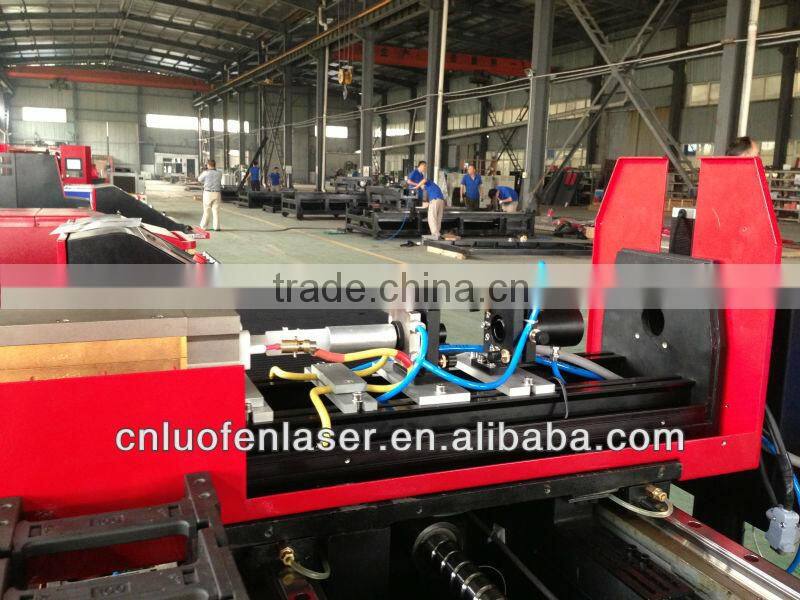

7. The machine can be equipped with integrated rotary device or detached rotary device. It can do fixed position punching, notching and cutting on metal pipes and tubes.

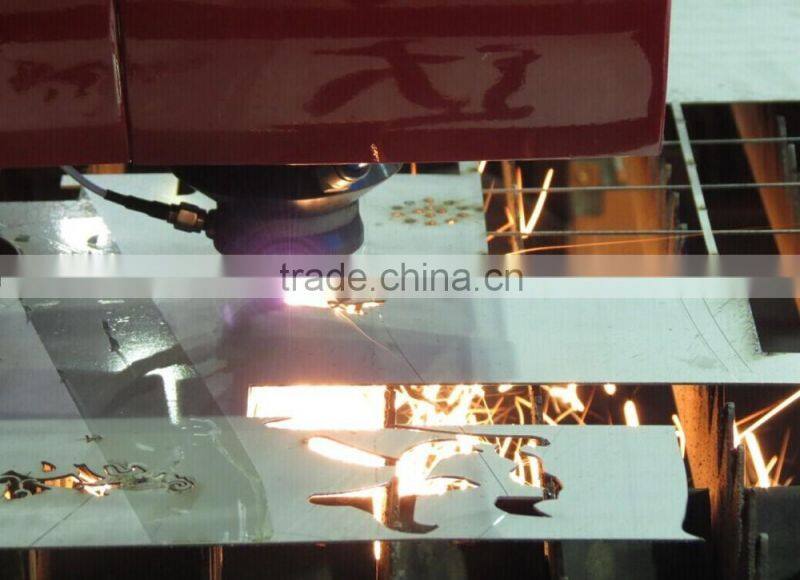

Application of metal cutting machine
Applicable Materials: stainless steel, mild steel, carbon steel, alloy steel, spring steel, iron, galvanized iron, galvanized sheet, aluminum, aluminium, copper, brass, bronze, titanium plates, metal sheets, metal plates, metal tubes and pipes, etc.
Applicable Industries: sheet metal processing, metal fabricating, metals components and parts, ironware, chassis, racks & cabinets processing, metal enclosure, kitchen ware, kitchen cabinet, advertising metal sign, metal crafts, artware, elevator panel cutting, hardware, auto parts, jewelry, glasses frame, nameplates, electronic parts, etc.

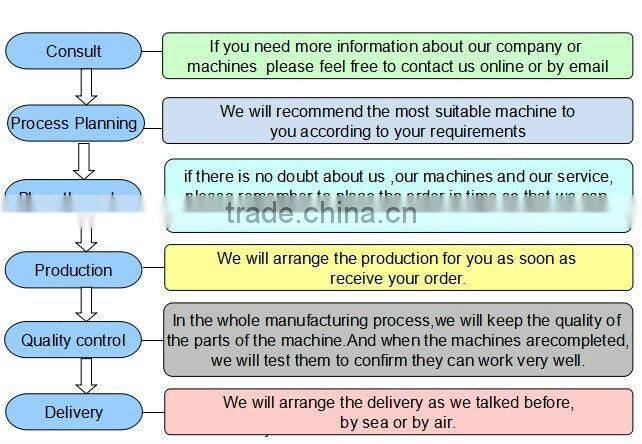

How to make a order
Yag cutting machine 600w/850w
- Lamp Pump YAG laser cutting machine adopts Nd:YAG laser medium power with 1064nm wavelength, it's solid-state laser generator, very suitable for both ferrous metal (mild steel, stainless steel) as well as non-ferrous (aluminum, brass, copper, titanium, alloy…) metal materials cutting. The running cost is only USD3/hour, as it can use air compressor for blower, no need assistant gas.
- Cutting ability: suitable for less than 8mm mild steel cutting, 6mm stainless steel cutting, also can cut less than 3mm brass/copper/aluminum....(Laser power: 600W 850W for choice)
Payment for ruofen laser cutting machine
1.We accept paypal and TT,western union,Escrow if you want to use other way,please contact us.
2.We will start preparing your order after you do the payment.
Shipping
We will send out the machine by sea way to your nearest port general .
If you want to send by DHL or any other shipping way,please contact us in advance.
For shipping purpose, please tell us your phone number and detail contact information after you confirm the order.
After sales service
-12 months for the machine
-technical services to the door (professional engineers to offer machine installation
commissioning and maintenance)
-replace all parts for free during the warranty period(no human damage)
-24th technology online support (skype,yahoo,MSN)
-24th service email ID:
PHILICAM Service Team
PHILICM has been focus on helping customers to choose the most suitable laser systems. If you have any questions about our laser systems or meet any trouble after buying our products, PHILICAM person is always willing to help you at once.
Skype:rofinlaser003
Whatsapp:+86-13668829380
QQ: 2713653893
