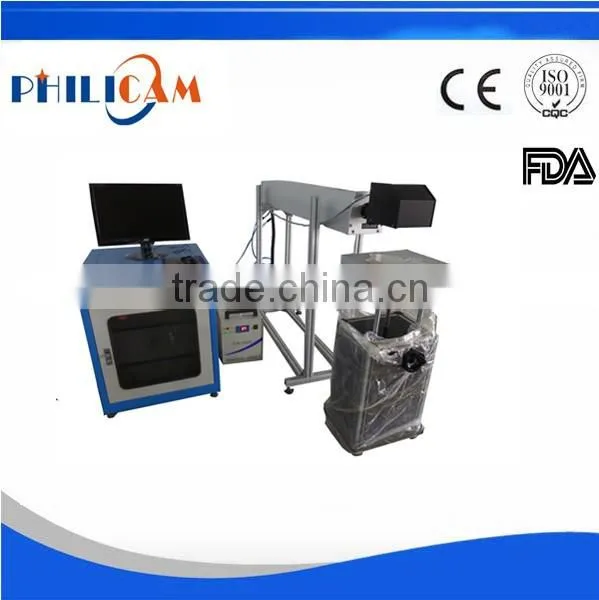

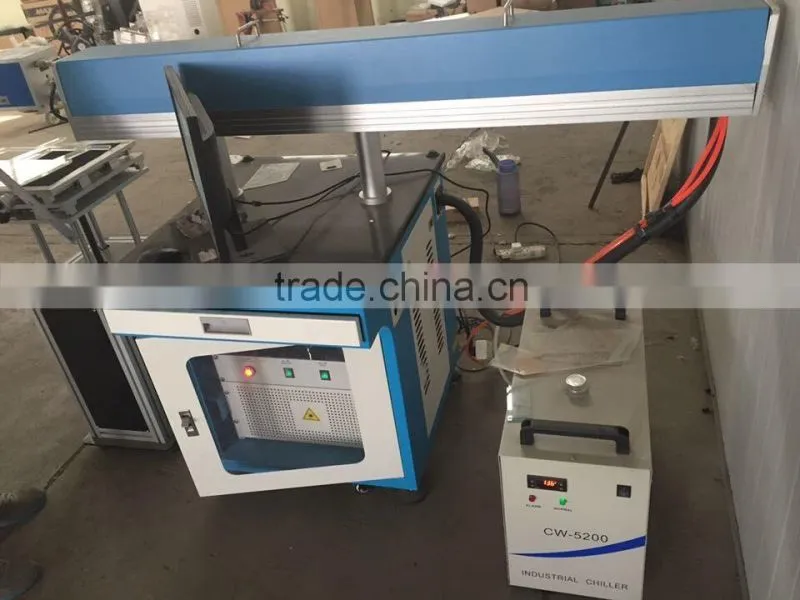

FLDJ co2 50w t shirt laser marking machine
Machine Features
1.Fast processing speed:
Its processing speed is 2-3 times of traditional laser marking machine.
2.Good Stability and Free Maintenance:
No need maintenance for laser device, also not need adjust or clean the lens.
3.Excellent laser beam quality
4.Its fundamental mode (TEM00) output, and the diameter of laser focus dot is less than 20m. So Fiber Laser Marker is suitable for marking accurately.
5.Low energy consumption:With E-O efficiency up to 30%,
its power consumption keeps 500W/h, less than any conventional laser.
6.Zero maintenance:No need of any maintenance, such as adjusting, cleaning lens etc.
7.Long laser lifetime:Adopted with diode as pumping source, its average working time reaches up to 100,000 hours.
8.Compact design:With compact design, it can be mounted in any orientation.

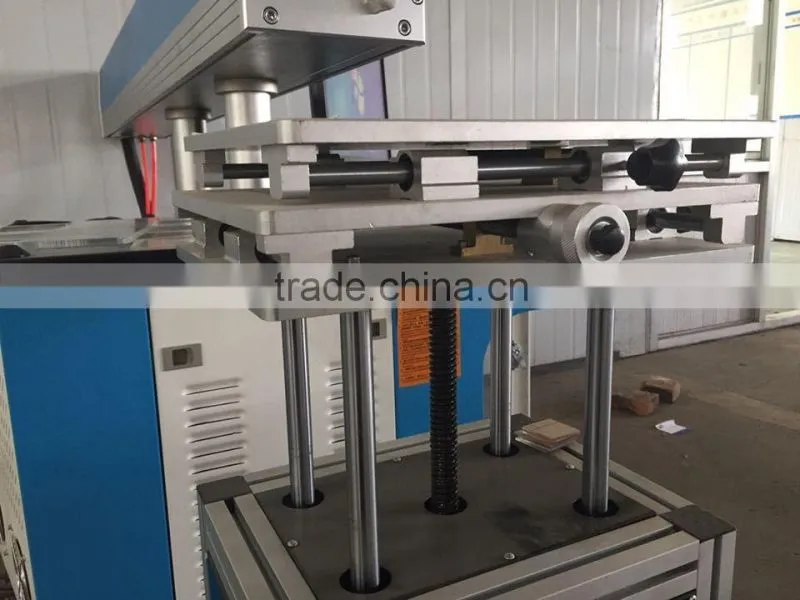

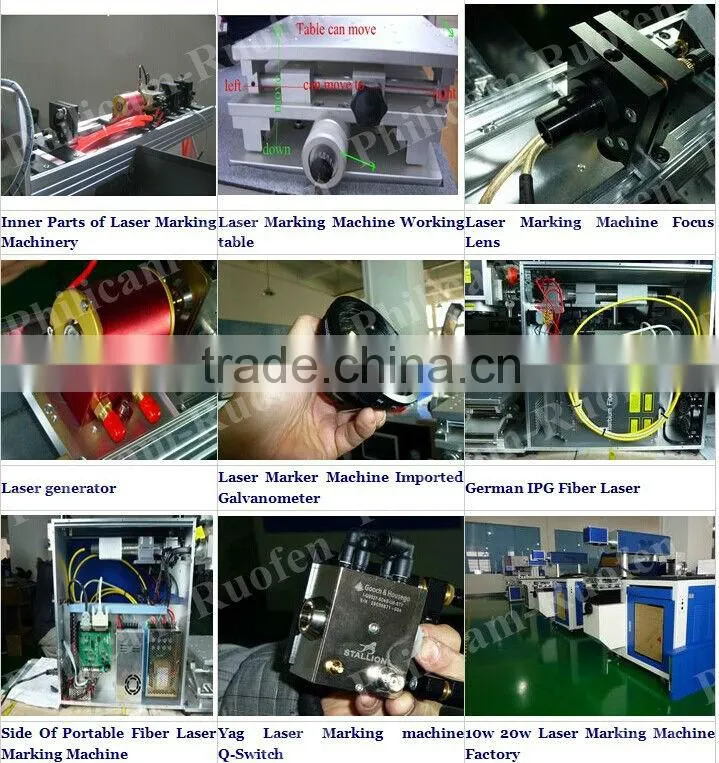

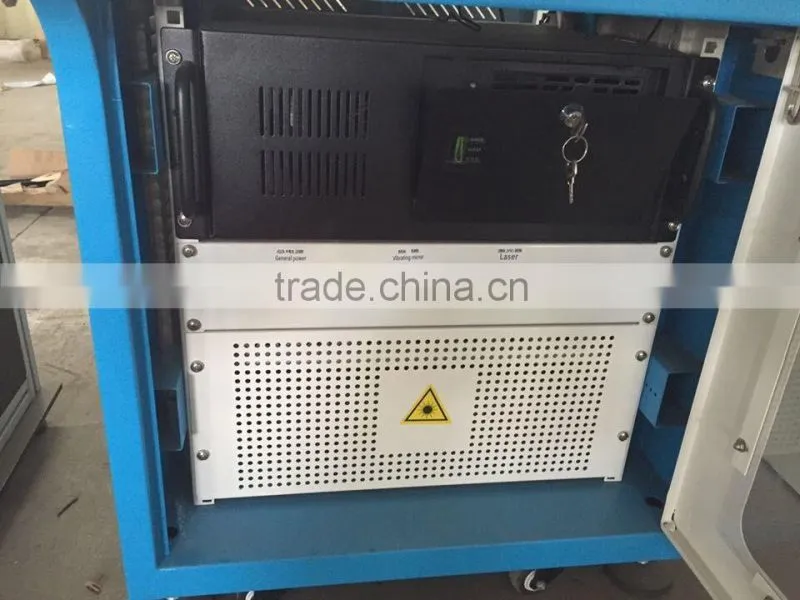

Machine Parts
Technical Parameters
1 |
Model |
FLDJ-50W /80W |
2 |
Laser power |
50W/80W |
3 |
Working area |
100*100mm(or optional) |
4 |
Laser Wavelength |
10.64μm |
5 |
Response time |
0.5ms |
6 |
Frequency of pulse |
≤ 30KHZ |
7 |
Max marking depth |
≤0.3mm (adjustable according to materials) |
8 |
Marking speed |
0-7000mm/s |
9 |
Marking lines |
1-10 lines(in the marking area) |
10 |
Minimum line width |
0.1mm |
11 |
Minimum character |
0.4mm |
12 |
Repeatability accuracy |
±0.01mm |
13 |
Resolution ratio |
0.1mm |
14 |
Marking content |
Text,pattern,date,bar code,etc |
15 |
Graphic format supported |
bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc. |
16 |
Operation system |
Microsoft Windows XP or Windows 2000 |
17 |
Control software |
China marking control software or laser2.1 marking control software |
18 |
Unit power |
≤ 1.2KW |
19 |
Operation temperature |
5°C-40°C |
20 |
Relative moisture |
≤ 90%,no fog |
21 |
Supply Voltage |
220V/50Hz/15A |
22 |
Cooling method |
water cooling |
Applications
Various nonmetallic and animal live. Marking content restrictions can include personalized design graphics, company logos, Pen number, product serial number, producer units and specifically for regional and other content, effectively prevent counterfeit products disorderly competition, improve the added value of products.
Machine Samples
After Sale Service
1.1.5 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery
7.Our staff can be sent to your company to install or adjust if necessary.
