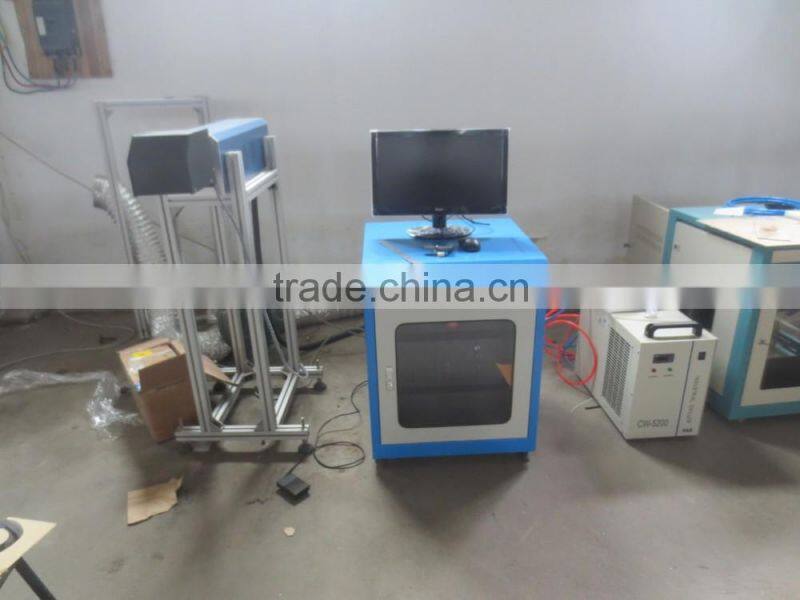

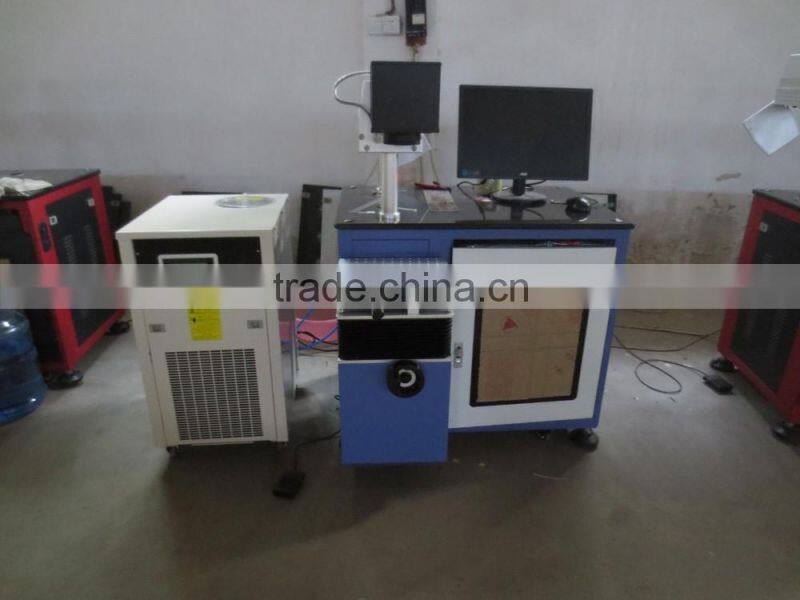

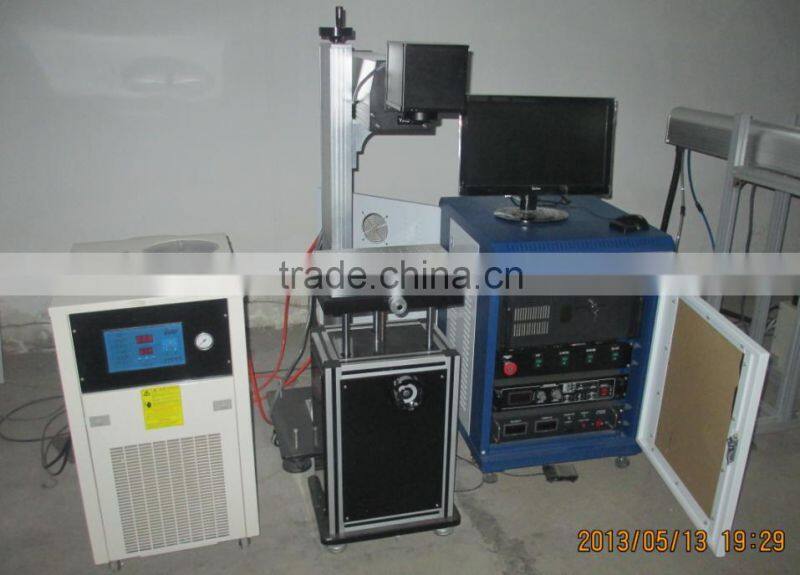

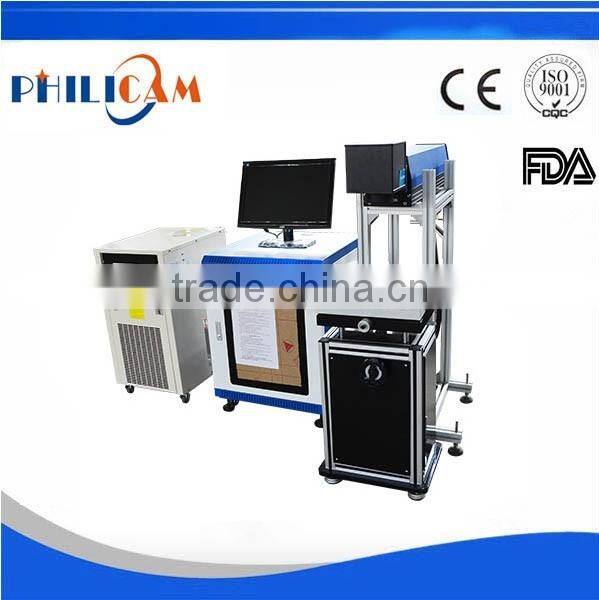

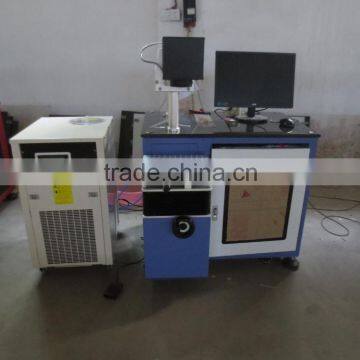

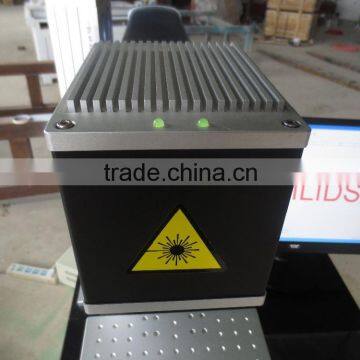

PHILICAM YAG 50w 75w 100w cheap yag laser marking machine/yag metal laser markers
Introduction
Semiconductor pump series laser marker uses Galvanometer laser marking technology and most advanced semiconductor pump laser technology, makes the YAG rod generates a mass of inverted population with 800nm wavelength semiconductor laser diode pump Nd:YAG crystal, forms 1064nm wavelength giant pulse laser beam output under the effect of Q switch, through expanding and focusing of laser beam, and finally realizes marking through controlling the deflection of galvanometer. It is a revolution in laser marking field. This type of laser marker features low energy consumption, high electro-optic conversion efficiency, stable laser output mode, high reliability, small size, excellent marking effect and no consumables.
II
Applicable materials
- Many type of metals: Gold,Silver,Stainless Steel,Copper,Aluminum,chrome Brass,etc
- Alloy and metal oxides: Anodized Aluminum
- Some non-metallic materials & Special surface treatment:silicon wafer,ceramics,plastic,rubber,epoxy resin,ABS,Printing ink,Plating,Spraying,Coating film
Machine Features
1. Stable structure, no shock during work.
2. Quick scriber speed, finish job in seconds.
3. High precision, repetition as tiny as 0.2mm
4. Simple and convenient operation. Easy to learn and handle.
5. Robust performance even during continuously work for 24 hours every day.
Technical parameters
Model |
YAG50W |
YAG-75W | YAG-100W |
Max laser power |
50W |
75W |
100W |
Marking area |
70mm×70mm/100mm×100mm/150mm×150mm Optional |
||
Min line width |
0 .02mm |
||
Laser wavelength |
1064nm |
||
Max marking speed |
7000 mm/s |
||
Repetition rate |
1KHz~50KHz |
||
Machine power |
≤2.5KW |
≤3.75KW |
≤5KW |
Cooling method |
Water |
||
Dimension |
400 X 1000 X 1150(mm) |
||

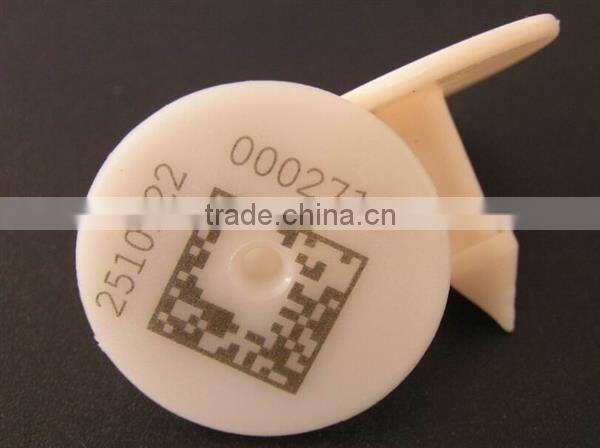

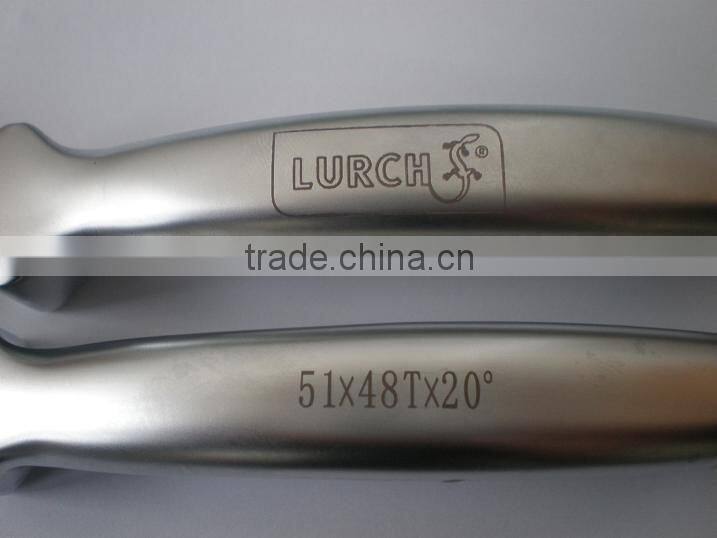

Samples:

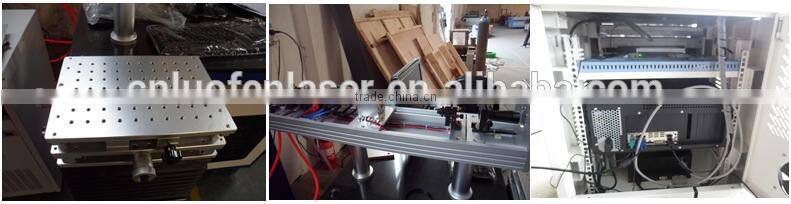

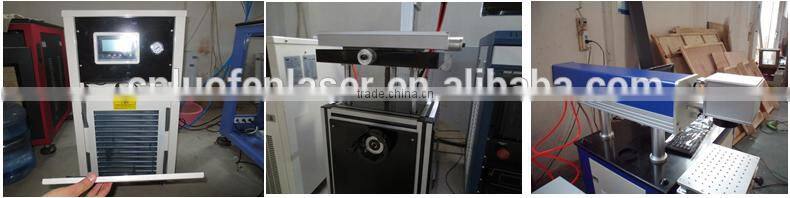

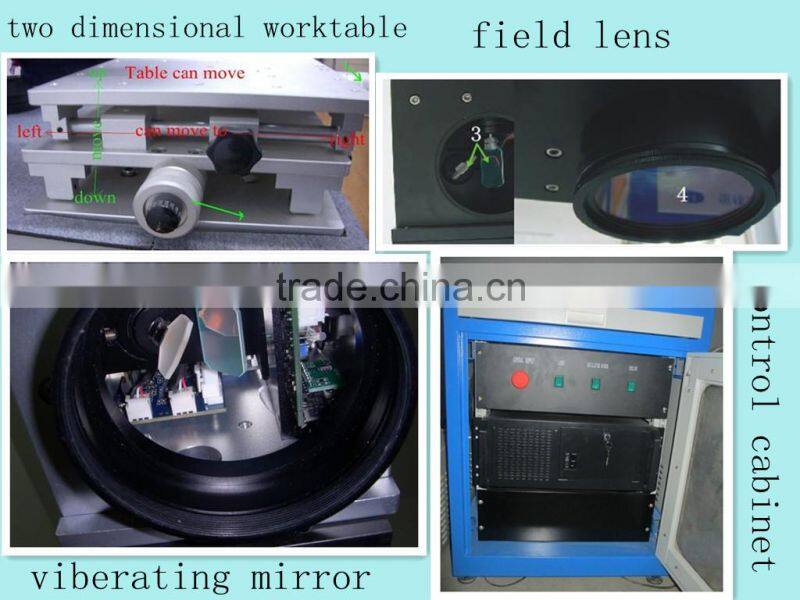

Standard machine parts Item :
# Working area:100*100 mm/200*200mm/300*300mm
#50w/75w 100w
# Table: Aluminum alloy moving table

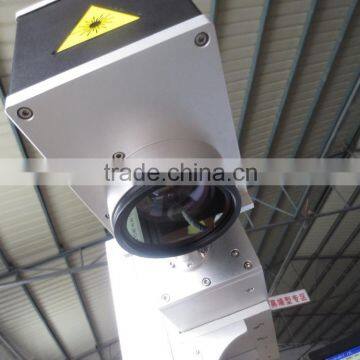

# Field lens,High speed galvanometer,Marking head

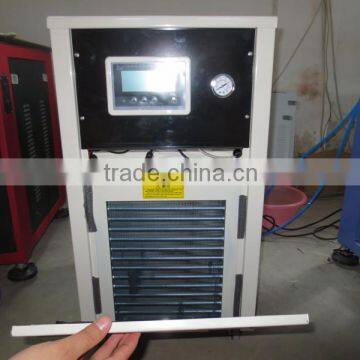

# Cooling system: water cooling

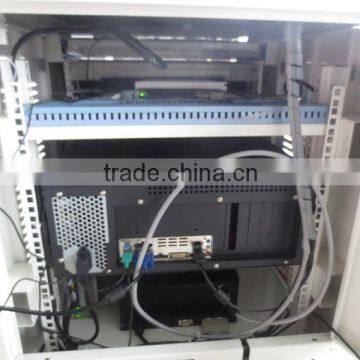

# PC control system: Windows XP or Windows 2000
# control software: EZCAD
How to choose a good laser marking machine?
Ø Machine quality.If you plan to choose a so cheap machine,maybe the quality is bad.And you have to order another machine after you use it for a period.This situarion will have a bad effect on your producing.So the quality is most important foctors to choose a laser machine.
Ø Future more, the after-sales service is very important,too.Good after-sales service represent the image of a company.After you use the machine and find some promblems of the machine, a good after-sale service can solve it effectively and protect the right of customers'.
Ø The third is technical support. Because of time diffrent,there is a big problem to comunicate with the sellers. When you need help, maybe it is the sleeping time for your sellers. So effective contact and the good service is also important to you. Other sellers maybe can not do this, but our company can provid 24th service a day.
Ø The last is company. A company with good reputation usually can produce good quality machine. As our company, we specialized in CNC laser marking machine more than 10 years, the professional engineer teams, the advanced equipment and the good after-sale service have earned us good reputation in world market
After Sale Service
1.2 years quality guaranty, the machine with main part (excluding the consumables) shall be changed free of charge when if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted in high precision before delivery , operation disk was included. If there is also any questions, please kindly tell me
If there is any kind of machine you are interested in, please kindly contact me!

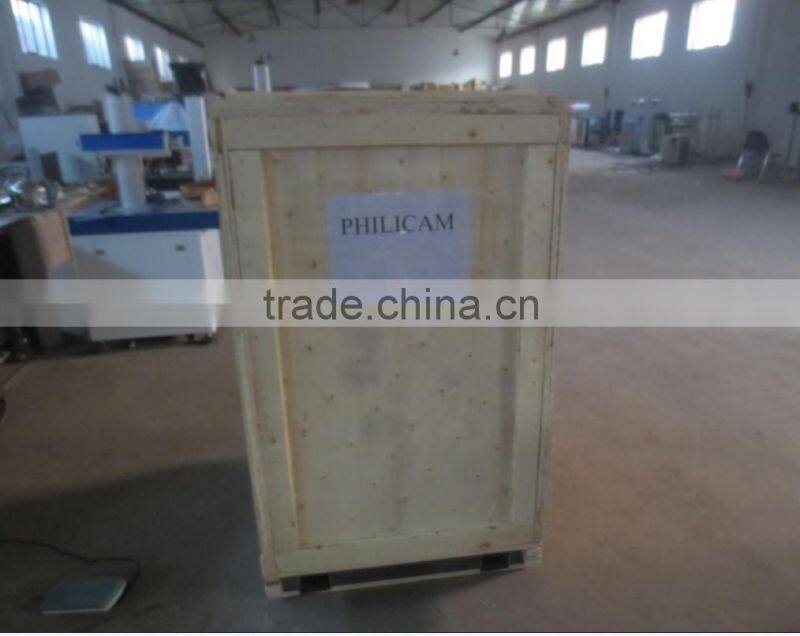

Packing parts
