Pls check the details in Below.
| Name: | PPGI/PPGL coil,sheet,strip | Brand: | CAMELSTEEL |
| Thickness: | 0.12-1.2mm | Width: | 600-1250mm |
| Length: | as your requirement | Color: | all RAL color |
| Technique: | Cold Rolled | Coils weight: | 3-5 tons |
| zinc coating: | 30-180g/m2 | top coating: | 13-25microns |
| back coating | 5-10microns | Surface Treatment: | Galvanized/Galvalume |
| Grade: | CGCC , DX51D , HDGC , CGCD, SGCC, SPCC | ||
| Base Material: | Hot Dipped Galvanized/Galvalume Steel Coil | ||
| MOQ: | 25 tons Or less than 25 tons is allowed in special situation | ||

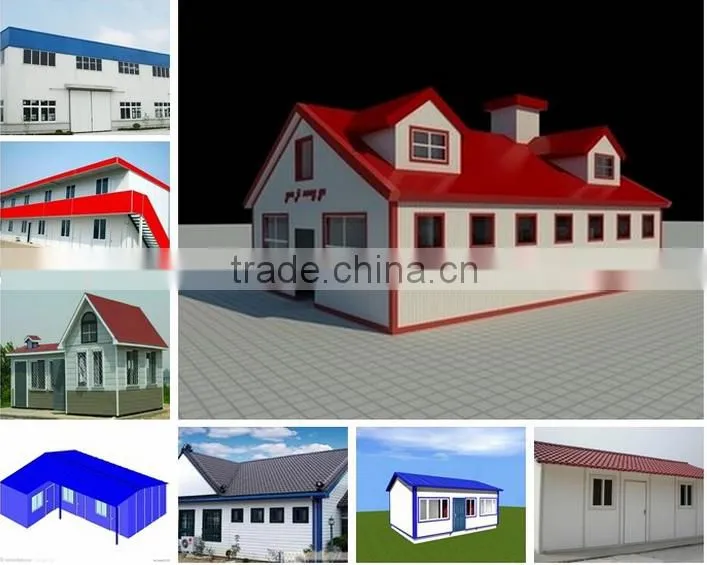

| Application: | roofing,shutter roller door,sandwich panel,warehouse,public building, garbage can | ||
| Package: |
standard export package, water resistant, moist resistant,suitable for sea transportation;or as your requirements |
||
Advantages of Our Prepainted Galvanized Steel:
1) Excellent corrosion resistance: The zinc layer provides a good protection of Pre-painted Galvanizeed Steel Sheet.
2) High heat resistance: The reflective surface of the material aids in efficiently reflecting the sunlight away and in turn reducing the amount of heat transmitted. The thermal reflectivity converts into energy savings.
3) Aesthetics: Pre-Painted Galvanized steel sheet is available in plethora of patterns and multiple sizes as per the requirements that given by our customers.
4) Versatility: can be used in the various areas
Coating Chief Feature
Project |
Pencil hardness |
Reverse impact |
T bending |
Cupping test |
MEK cleaning |
Front/back |
≥ H/2H |
≥ 9J/6J |
≤ 3T/5T |
≥ 6mm/4mm |
≥ 100time/50time |
Structure of GI/PPGI
Item |
Thickness |
Type |
Feature |
Laminated film |
50μm |
Polyethylene |
Protecting from scratchs and contamination (option) |
Top coat |
20μm |
Polyester Fluorine |
Chemical resistance and formability |
Primer coat |
5μm |
Polyester |
Workability, corrosion resistance and adhesion to the primer coating |
Chemical treatment |
1μm |
Chromate |
Good adhesion and corrosion resistance |
Substrate |
0.12mm-1.2mm |
GI.GL,cold rolled steel |
GI.GL.Cold Rolled Steel |
Back coat |
5±2μm |
Epoxy |
Corrosion resistance and adhesion to the |

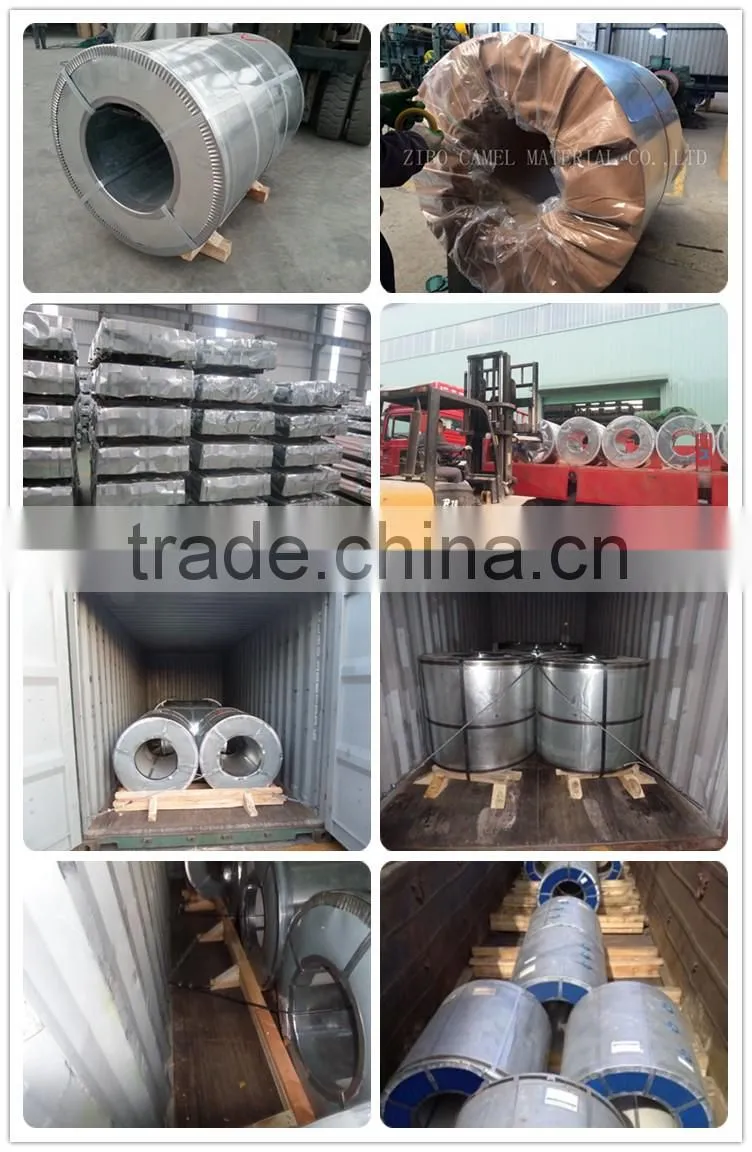

2.The contact points of these bands on the coil edge to be protect with edge protectors.
3.Coil to be properly wrapped with water proof /resistant paper, it then to be properly and completely metal wrapped.
4.Wooden and iron pallet can be used or as your requirements.
5.And each packed coil to be properly wrapped with band, three-six such band through the eye of coil at about equal distance, and two-four such bands securely tied around belly of coil at about equal distance
2. Using high-quality material and advanced production technology and equipment for processing
3. Applicable to a humid climate and the harsh corrosive environment
4.Exported to Europe, North American, the Middle East,the South East Asia, Africa, Asia,European and other countries and regions, well received by our buyrer.
3.Prepainted steel coil/sheet/strip(color coated steel or PPGI)
4.pre paint stell coil/plate/strip(colour coated steel or PPGL)
1.What is recommendation?
Asia: Thickness:0.18 / 0.19 / 0.21 / 0.24 / 0.26mm width 914/1000/1250mm,high gloss red, high gloss brown, clear varnish
Africa:Thickness0.25 / 0.26 / 0.27 / 0.28 / 0.3 / 0.38 / 0.4 / 0.45mm with 762/914/1000 /1250 mm width,red,green,blue,white
South America:Thickness 0.12 / 0.14 / 0.16 / 0.35 / 0.49mm with 914/1000 / 1220mm, red,green and blue color
2.What s the payment term?
30-50% TT in advance(based on your qty ), 70% balance against copy B/L in 7 workdays.
3.When will you arrange production?
In 7 workdays when we receive your advance payment.
4. When will you send BL copy?
In 3-5 workdays after shipment date.
5. When will you send original Documents
In 3-5 workdays when we get the balance.
6. From we pay the advance to we get the goods what other service you can provide?
A Send photos from raw material to shipment.
B Notice and remind you when will you get the goods.
C Advise or Solve when you meet the problem during your production
Welcome your enquiry to Camelsteel High Quality Products!!!
