Non-anti-dumping130W / 150W Poly Solar Panel / PV Module in Stock
US$ 0.45 - 0.55
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Model Number:
GH-150P
Material:
Polycrystalline Silicon
Number of Cells:
36
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mono 15w Portable Solar Panel, Solar pv Stay Alone SystemUS$ 0.8 - 2MOQ: 100 Pieces -
180W Flexiable Mono Crystalline Or Amorphous Solar Panel SystemUS$ 1 - 100MOQ: 1 Set
-
A-grade Cell 40w 17v Solar Panel OEM to Afghanistan/Pakistan/India/Nigeria PV PanelUS$ 0.45 - 0.55MOQ: 100 Pieces
-
Small Panel 6w Poly Silicon Solar Panels High Efficiency Home UseUS$ 0.45 - 0.55MOQ: 100 Pieces
-
235w Polycrystalline PV Solar Panel in Renew Energy IndustryUS$ 0.65 - 1.15MOQ: 100 Pieces
Model Number
GH-150P
Material
Polycrystalline Silicon
Number of Cells
36
APPLICATIONS

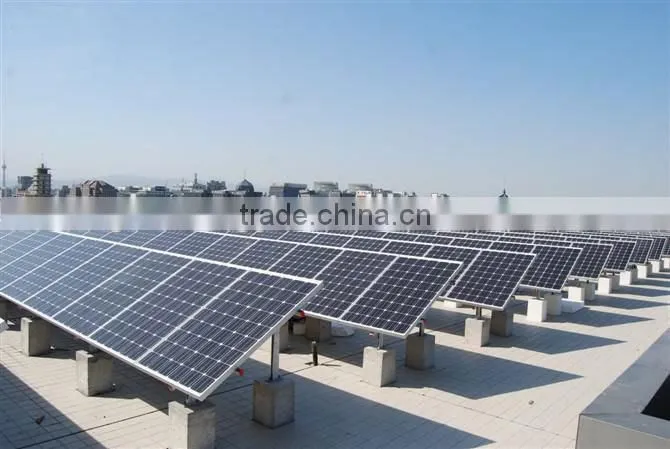

`Solar power stations
`Rural electrification, Small home power systems
`Power supply for traffic, security, gas industry
`12V and 24V battery charging system
`Other industrial and commercial applications
| ELECTRICAL CHARACTERISTICS | ||||||
| Model Number | GH(P)130 | GH(P)135 | GH(P)140 | GH(P)145 | GH(P)150 | |
| Maximum Power as per STC | Pmax(W) | 130 | 135 | 140 | 145 | 150 |
| Power Tolerance | % | ± 3% | ||||
| Maximum Power Voltage | Vm(V) | 17.96 | 18.14 | 18.36 | 18.15 | 18.28 |
| Maximum Power Current | Im(A) | 7.26 | 7.45 | 7.65 | 7.99 | 8.21 |
| Open Circuit Voltage | Voc(V) | 21.6 | 21.74 | 21.96 | 21.72 | 21.9 |
| Short Circuit Current | Isc(A) | 7.83 | 8.04 | 8.17 | 8.69 | 8.93 |
| Maximum System Voltage | VDC | 1000 | ||||
| Cell Efficiency | % | 14.8 | 15.4 | 16.0 | 16.6 | 17.1 |
| Module Efficiency | % | 12.9 | 13.4 | 13.9 | 14.4 | 14.9 |
| Cells per Module | Pcs | 36 | ||||
| Cell Type | Polycrystalline silicon | |||||
| Cell Size | mm | 156 x 156 | ||||
| Bypass Diodes | Pcs | 10Amp, 2 pcs | ||||
| Max. Series Fuse Rating | A | 10A | ||||
| Temperature coefficient of Isc | %/ | 0.05 | ||||
| Temperature coefficient of Voc | %/ | -0.35 | ||||
| Temperature coefficient of power | %/ | -0.47 | ||||
| NOCT- Nominal operating cell temperature | 47 ± 2 degree | |||||
| Operating Temperature | from -40 to +85 degree | |||||
| MECHANICAL CHARACTERISTICS | ||||||
| Dimensions | mm | 1480 x 680 x 35 | ||||
| Weight | Kg | 11.6 | ||||
| Type of Junction Box | TUV certified, IP65 | |||||
| Cable Type, Diameter | - | |||||
| Connector | - | |||||
| Tempered Glass | 3.2 mm, high transmission, low iron | |||||
