35w Shapes of Solar Panels 156*156mm With 3BB

35w Shapes of Solar Panels 156*156mm With 3BB thumbnail-1
35w Shapes of Solar Panels 156*156mm With 3BB photo-1
US$ 0.7 - 2 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Ganghang
Model Number:
GH-P-030
Contact Supplier Request Quote Chat Now
Zhejiang Ganghang Solar Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Ganghang
Model Number GH-P-030
Specification Normal
Application Industrial
Output Voltage (V) 18.9v
Load Power (W) 1.5kw
Solar Power (W) 35w
Work Time (h) 72hrs

Specifications

1.the shapes of solar panels:mono/poly with 125/156mm
2.CE,TUV etc and warranty 25years
3.for home,industry,commercial use.

Information for the shapes of solar panels:

  • Main products: solar cell, solar panel, solar power system etc.
  • MOQ: 100pcs(sample order and trial order are welcomed)
  • Warranty: 6month-1year for solar cells, 5years product warranty,10years 90% and 20years 85% for solar panels, 1year for solar systems
  • OEM order: welcomed
  • Certificate: CE,TUV, UL etc.
  • Package: carton, wooden case or as your spec.
  • Delivery term: about 30days by sea
  • Widely used for electricity, home, industry, communication, navigation, irrigation, PV house and remote power requirements etc.

Parameter:

Model GH-P-030
Pmax 35W
power tolerance: ±3%
Vmp 18.9V
Imp 1.85A
Voc 22.5V
Isc 2.05A
Pcs 36(4*9)
Cell Type 156*156 poly solar cell
Size 413*676*30 mm
Net weight 4.3kg
STC 1000W/m2,AM 1.5,25oC
Warranty 3 year warranty for products,10 years for 90% power ,25 years for 80% power
Accessory  3.2mm thick tempered glass,aluminium frame
Others There are drainage holes on the Border components

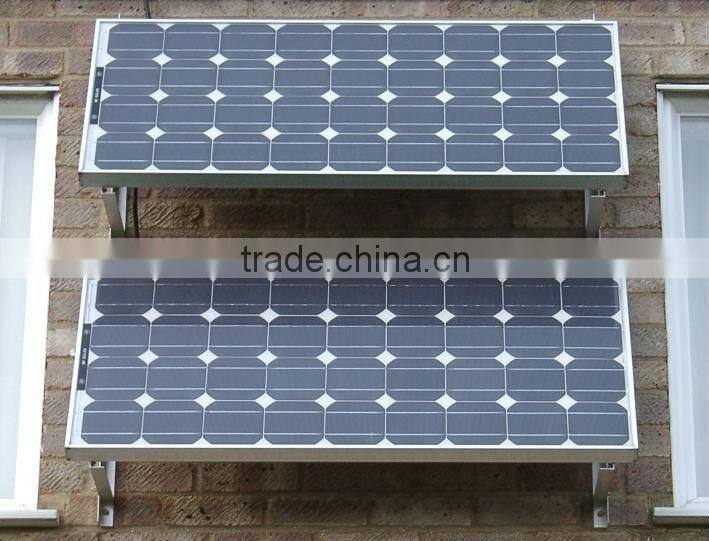

Image for the shapes of solar panels:



35w shapes of solar panels 156*156mm with 3BB



35w shapes of solar panels 156*156mm with 3BB

35w shapes of solar panels 156*156mm with 3BB

Specification of module

Model

TECHNICAL

SIZE(mm)

QTY IN CONTAINER

REMARKS

Wp

Vmp

Imp

Voc

Isc

Length

Width

Thickness

Weight(kg)

20’

40’

40HQ

GH005-M08

5

16.8

0.30

21.0

0.33

306

218

30

1.0







-

GH010-M08

10

16.8

0.60

21.0

0.66

337

289

30

1.5

5186

10736

12550

GH020-M08

20

16.8

1.19

21.0

0.32

636

283

30

2.2

2824

5846

6834

GH040-M08

40

17.2

2.33

21.6

2.64

618

539

30

4.3

1626

3366

3934

-

GH050-M08

50

17.2

2.9

21.6

3.30

767

539

35

4.8

1490

3084

3608

GH060-M08

60

17.2

3.49

21.6

3.96

732

658

35

3.4

1174

2430

2842

GH080-M08

80

17.2

4.65

21.6

5.28

1196

534

35

8.0

860

1780

2082

-

GH100-M08

100

17.2

5.80

21.6

6.60

1200

680

35

13.0

466

964

1128

-

GH120-M08

120

17.2

6.98

21.6

7.92

1416

680

35

13.0

466

964

1128

-

GH180-P06

180

28.6

6.29

36.2

7.10



1590



960



50



18



-

GH200-P06

200

28.6

6.98

36.2

7.90

GH240-P06

240

34.4

6.98

43.4

7.90

1880

960

50

22







-

GH280-M05

280

36.1

7.78

44.1

8.80

1880

960

50

22







-
